ELAC S12EQ User Manual

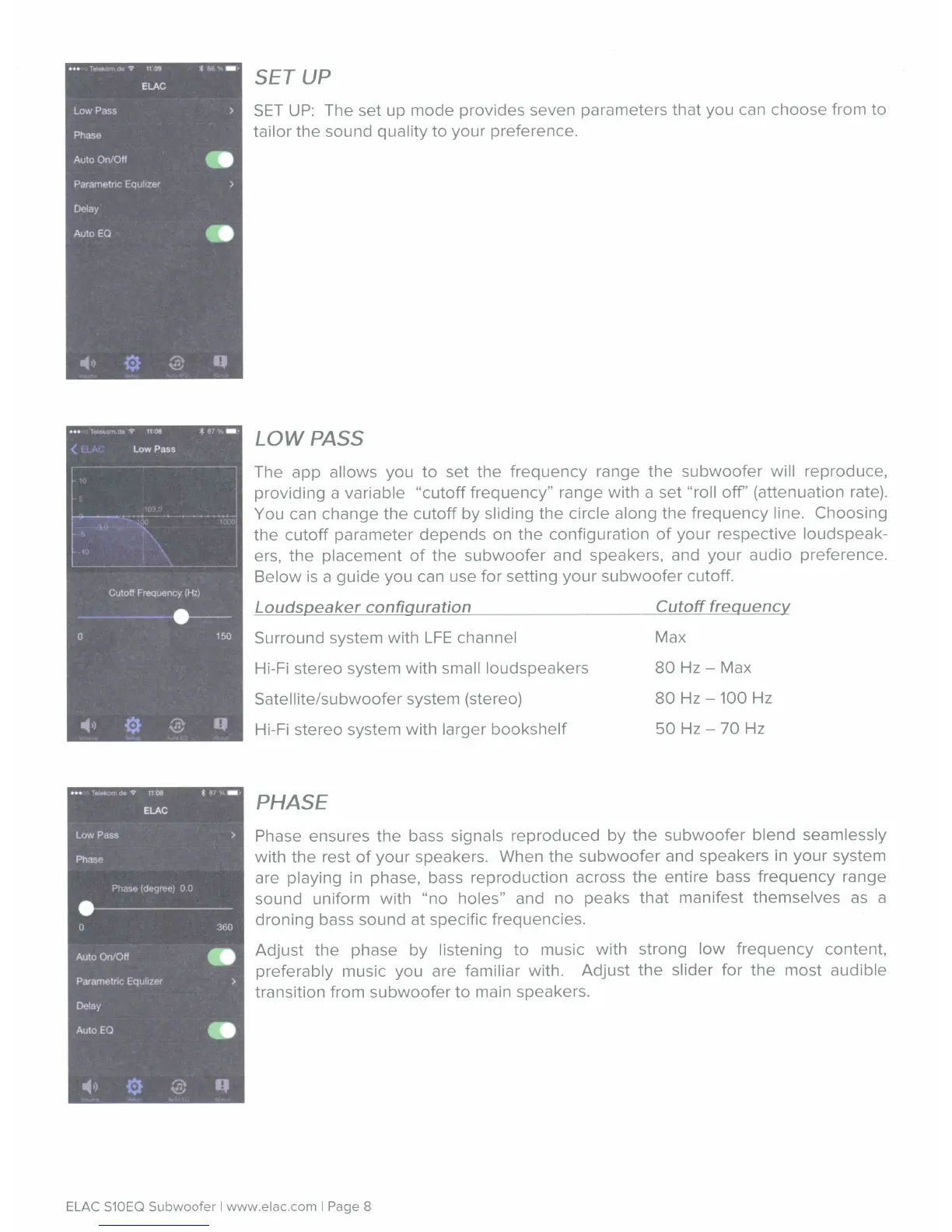

SETUP
SET
UP:
The set up
mode
provides seven parameters that you can choose from
to
tailor
the
sound
quality
to
your
preference.
LOW
PASS
The app
allows you
to
set
the
frequency
range the
subwoofer
will reproduce,
providing a
variable
"cutoff
frequency"
range with a set
"roll
off'
(attenuation rate).
You can change the
cutoff
by
sliding
the
circle along the
frequency
line.
Choosing
the
cutoff
parameter
depends
on
the
configuration
of
your
respective loudspeak-
ers,
the
placement
of
the
subwoofer
and speakers, and
your
audio preference.
Below
is
a
guide
you can use
for
setting
your
subwoofer
cutoff.
Loudspeaker
configuration
Surround system with
LFE
channel
Hi-Fi stereo system with
small
loudspeakers
Satellite/subwoofer
system (stereo)
Hi-Fi stereo system with larger
bookshelf
PHASE
Cutoff
frequency
Max
80Hz-
Max
80Hz-100Hz
50
Hz
-70Hz
Phase ensures the bass signals reproduced
by
the
subwoofer
blend seamlessly
with the rest
of
your
speakers. When the
subwoofer
and speakers in
your
system
are
playing
in
phase, bass reproduction across
the
entire bass
frequency
range
sound uniform with
"no
holes"
and no peaks
that
manifest themselves
as
a
droning bass sound at specific frequencies.
Adjust the phase
by
listening
to
music with strong
low
frequency
content,
preferably music you are familiar
with. Adjust
the
slider
for
the
most
audible
transition from
subwoofer
to
main speakers.
ELAC
S10EQ
Subwoofer
I
www
.elac.com I Page 8
