Installation
Electrical connection
Contact Line Type Name Function Description Electrical Description
1 PWM
MO1
Multifunctional
Output 1
DHW pump modulator
System Pump Modulator
Tank Filling pump Modulator
0..10 Volt feedback to BMS
PWM:0,1÷4kHz;Vhigh=12V;Vlow≤0,7V;Ihigh≤10mA
2 0-10 Volt 0..10 Volt
3 GND
4 NTC input
MTS1
Multifunctional
Temperature Input 1
T10 NTC10kβ=3977
5 5 Volt
6 NTC input
MTS2
PMultifunctional
Temperature Input 2
i.a.Bu󰀨ertanktop/bottom
DHW circulation sensor*
NTC10kβ=3977
7 5 Volt
8 NTC input
MTS3
Multifunctional
Temperature Input 3
i.a.Bu󰀨ertanktop/bottom
DHW charging sensor*
NTC10kβ=3977
9 5 Volt
10 NTC input
NTC7
Outdoor sensor (T4)
Dedicated temperture
sensor for outdoor
NTC1kβ=3977
11 5 Volt
12 NTC input
NTC3
Tank Sensor (T3)
Dedicated temperture for
DHW temperature
NTC10kβ=3977
13 5 Volt
14 Signal
eBus
Input
eBus2
Communication bus for i.a.
cascade communication
/ thermostat / clib-in
15 GND
16 Signal
eBus
Output
eBus2
Communication bus for i.a.
thermostat / clib-in
17 GND
0
PWM
L1 N L2 1.1 1.2 2.1 2.2 3.1 3.2
Output
Output
3 WV/DHW pump (AC) VFR3
VFR2VFR1
Output Output
Output Output
L N L N L N
Line (AC)
Line (AC)
MO1 (AC)
Input Output Output
PWM 0-10V GND 5VNTC 5VNTC 5VNTC 5VNTC 5VNTC
Signal
GND
Signal
GND
MO1 (0-10V output) MTS1 (T10) MTS2 MTS3
NTC 7
(outd. sensor)
NTC 3 (DHW/
Tank sensor)
eBus eBus
Input OutputOutput Input Input Input Input Input
GNDPWM 0-10V 24VSignalGND 24VSignalGND Signal 24VGND 24V 5VSignalGND GND Signal
PADIN 3 PADIN 4PFDIN 1 PADIN 1 PADIN 2MO2 (0-10V output)
InputInput Input InputOutput Input
Contact Line Type Name Function Description Electrical Description
1 PWM
MO2
Multifunctional
Output 2
System Pump Modulator
Tank Filling pump Modulator
0..10 Volt feedback to BMS*
PWM:0,1÷4kHz;Vhigh=12V;Vlow≤0,7V;Ihigh≤10mA
2 0-10 Volt 0..10 Volt
3 GND
4 GND
PFDIN 1
Programmable
Frequency
Digital Input
DHW Flow meter or
on/o󰀨signal
GND
5 Signal
Digital: close with +24Vdc;
Frequency 0÷24V; max 400 Hz
6 24 Volt Power supply: +24Vdc, 10mA max
7 GND
PADIN 1
Programmable Analog
Digital Input 1
i.a. Heat generation lock
External consumer request
Room Thermostat 1*
GND
8 Signal Digital: close with +24Vdc; Analog: 0÷10V
9 24 Volt Power supply: +24Vdc, 10mA max
10 GND
PADIN 2
Programmable Analog
Digital Input 2
i.a. 0,,10 Volt temperture
request / power request
Room Thermostat 2*
GND
11 Signal Digital: close with +24Vdc; Analog: 0÷10V
12 24 Volt Power supply: +24Vdc, 10mA max
13 GND
PADIN 3
Programmable Analog
Digital Input 3
i.a. Heat generation lock
External consumer request
Room Thermostat 3*
GND
14 Signal Digital: close with +24Vdc; Analog: 0÷10V
15 24 Volt Power supply: +24Vdc, 10mA max
16 GND
PADIN 4
Programmable Analog
Digital Input 4
i.a. Heat generation lock
External consumer request
Lowwatercuto󰀨*
GND
17 Signal Digital: close with +5Vdc; Analog: 0÷5V
18 5 Volt Power supply: +5Vdc, 10mA max
0
PWM
L1 N L2 1.1 1.2 2.1 2.2 3.1 3.2
Output
Output
3 WV/DHW pump (AC) VFR3
VFR2VFR1
Output Output
Output Output
L N L N L N
Line (AC)
Line (AC)
MO1 (AC)
Input Output Output
PWM 0-10V GND 5VNTC 5VNTC 5VNTC 5VNTC 5VNTC
Signal
GND
Signal
GND
MO1 (0-10V output) MTS1 (T10) MTS2 MTS3
NTC 7
(outd. sensor)
NTC 3 (DHW/
Tank sensor)
eBus eBus
Input OutputOutput Input Input Input Input Input
GNDPWM 0-10V 24VSignalGND 24VSignalGND Signal 24VGND 24V 5VSignalGND GND Signal
PADIN 3 PADIN 4PFDIN 1 PADIN 1 PADIN 2MO2 (0-10V output)
InputInput Input InputOutput Input

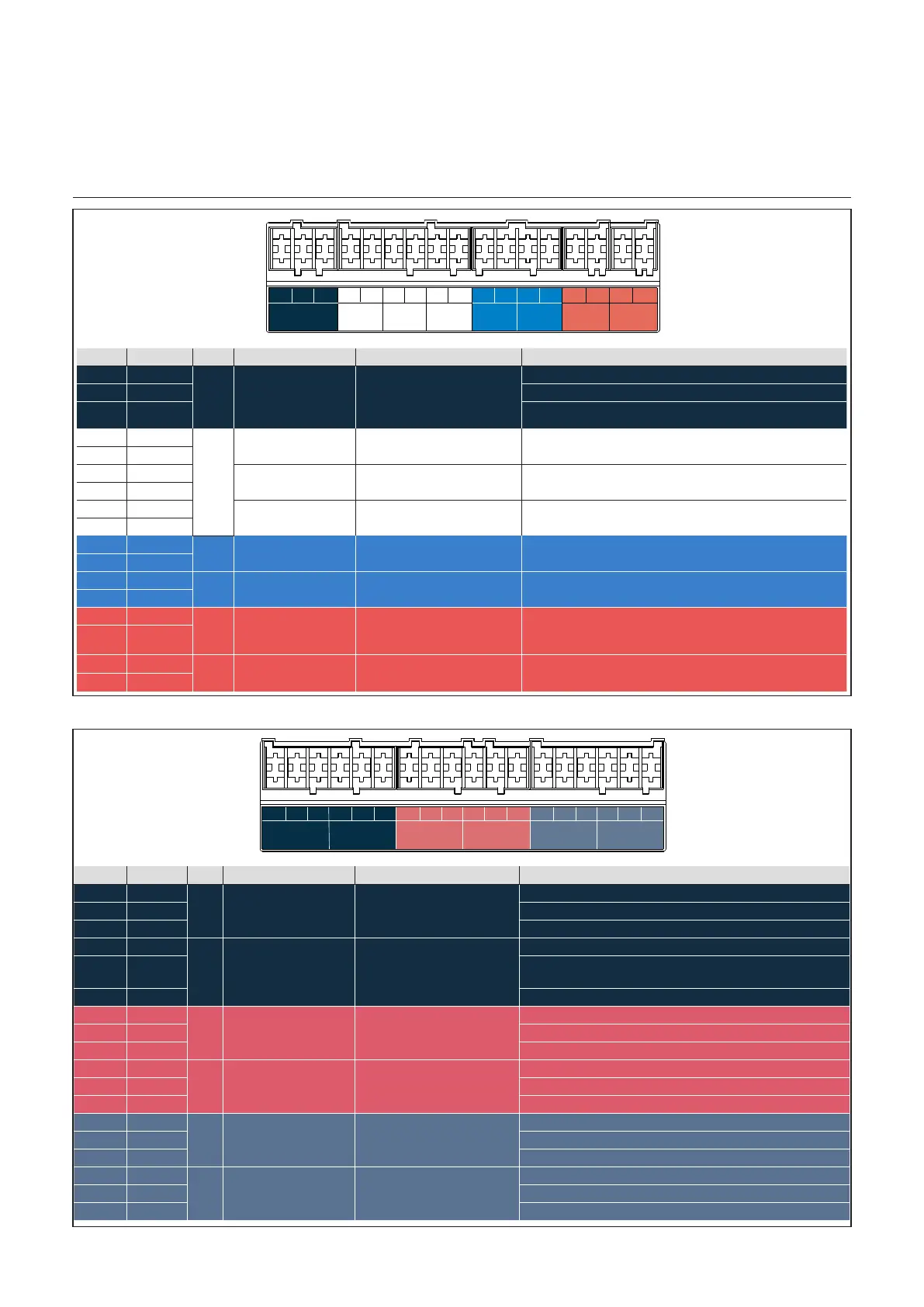

4
3 & 5
See tables on pages 45-47.
See tables on pages 45-47.
