ELECTRICAL CONNECTIONS
SM DELTA 1-E.0 GB

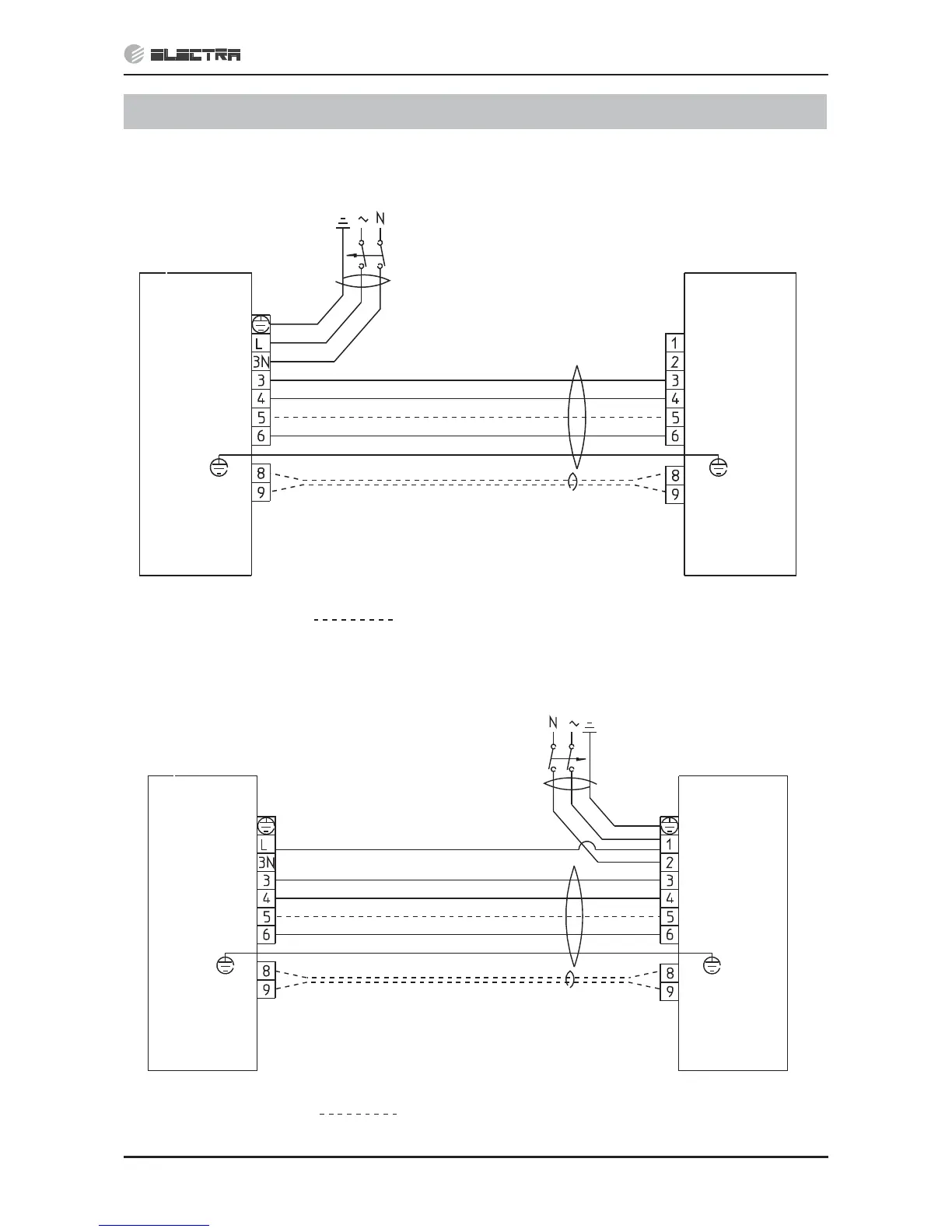

9. ELECTRICAL CONNECTIONS
9.1 DELTA 18 / 21 1PH
9.2 DELTA 24 1PH (power supply to Outdoor unit)
INDOOR UNIT
POWER SUPPLY
1PH 220-240V 50Hz
CIRCULIT BREAKER
(NOT SUPPLIED)
CONNECTED ONLY
HEAT - PUMP UNIT
OUTDOOR UNIT
INDOOR UNIT
POWER SUPPLY
1PH 220-240V 50Hz
CIRCULIT BREAKER
(NOT SUPPLIED)
CONNECTED ONLY
HEAT - PUMP UNIT
OUTDOOR UNIT
