14-17
SERVICING
SM OU12HP 2-E.2 GB

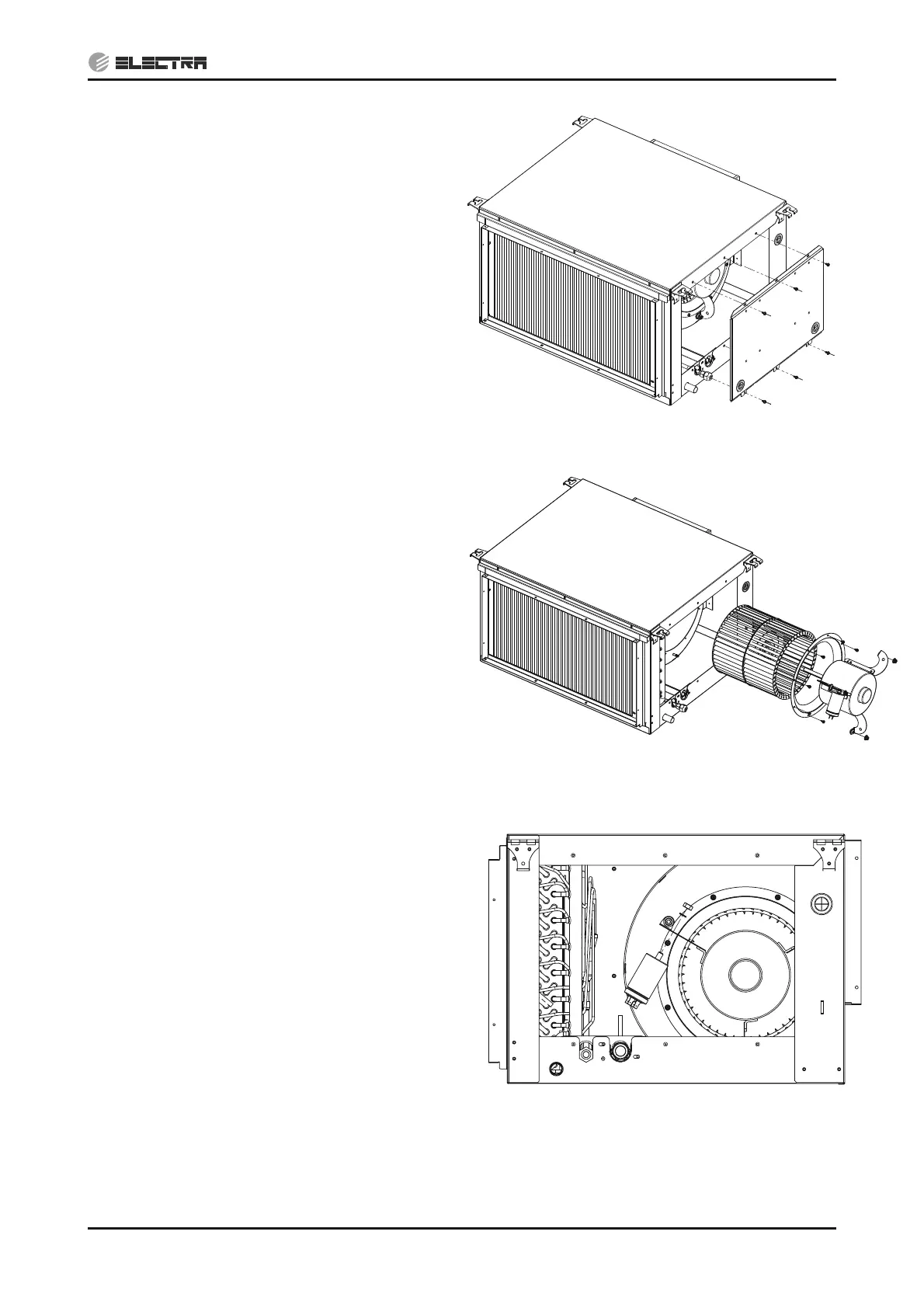

14.3.4 Removing Service Panel
1. Remove the 6 fixing screws and pull the
service panel to remove it.
14.3.5 Removing Fan and Fan Motor
Disconnect the motor connector from the 7.
Electronics Board.
Remove the Service Panel according to 8.
14.3.4.
Push the motor cable back into the unit 9.
through the grommet.
Remove the 6 fixing screw connecting the 10.
ring to the fan housing.
Remove the 3 fixing hex nuts and the spring 11.
washers that connect the legs support to
fan house and take out the motor with the 3
legs.
Release the allen screw fixing the fan to fan 12.
motor axis and separate it.
14.3.6 Removing motor Capacitor
1. Remove the Service Panel according to
14.3.4.
2. Disconnect the tab connections from the
capacitor.
3. Remove the nut holding the capacitor to the
holder.
To Next Page
