14-16
SERVICING
SM OU12HP 2-E.2 GB

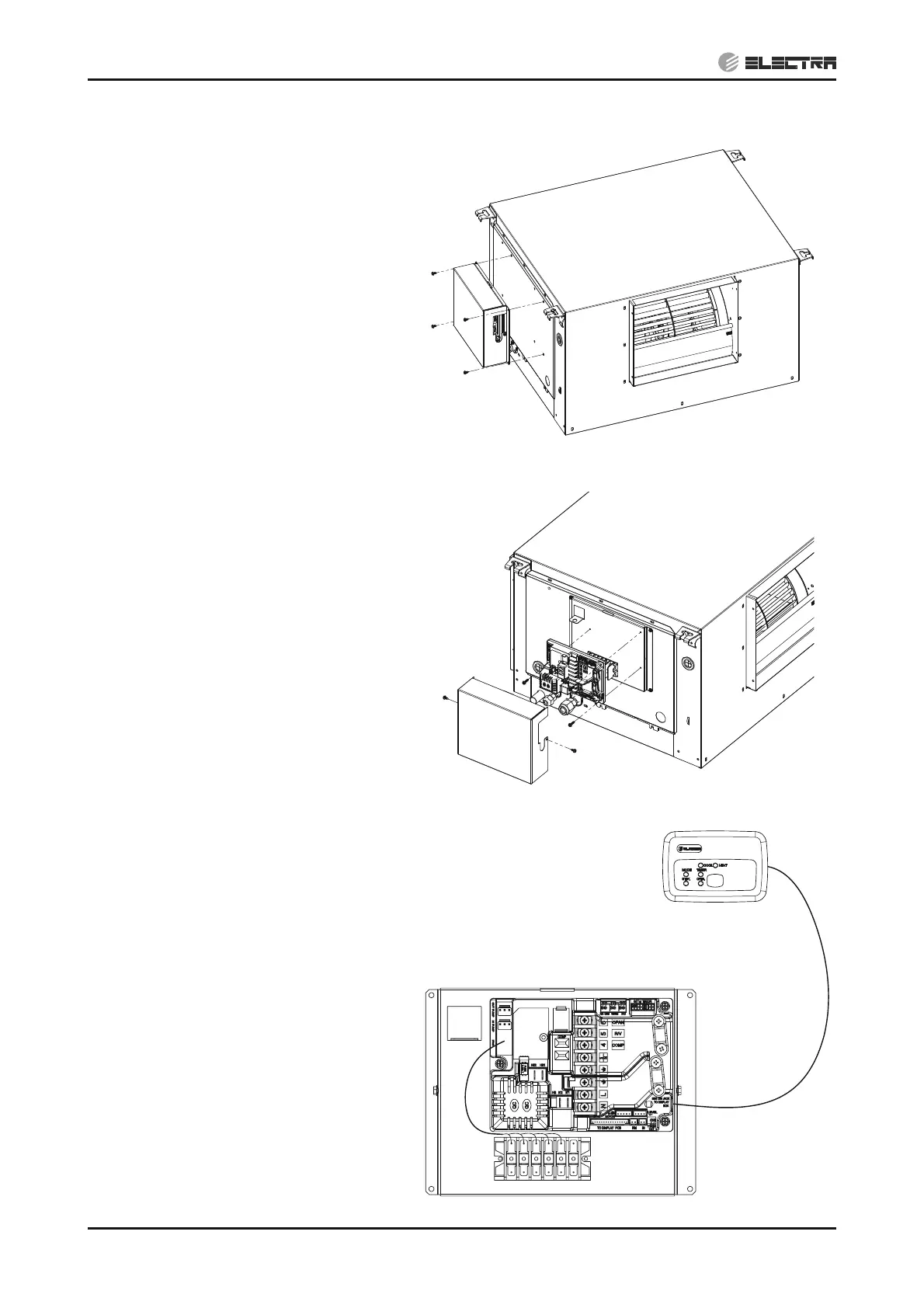

14.3 Indoor Unit: EMD
14.3.1 Electronics Assembly Remote Access
In cases of hard access to control assembly it is
made possible to release the assembly from the
indoor unit chassis.
1. Remove the 4 fixing screws and relocate the
Electronics assembly .
14.3.2 Removing Electronics Assembly
1. Remove the 2 fixing screws and take out the
cover.
2. Disconnect all connectors and wires from
the Electronics Board.
3. Remove the 3 fixing screws and take out the
Electronics Board.
14.3.3 Removing Display unit
1. Take out the display connector from the
electronics board.
To Next Page
