14-19
SERVICING
SM OU12HP 2-E.2 GB

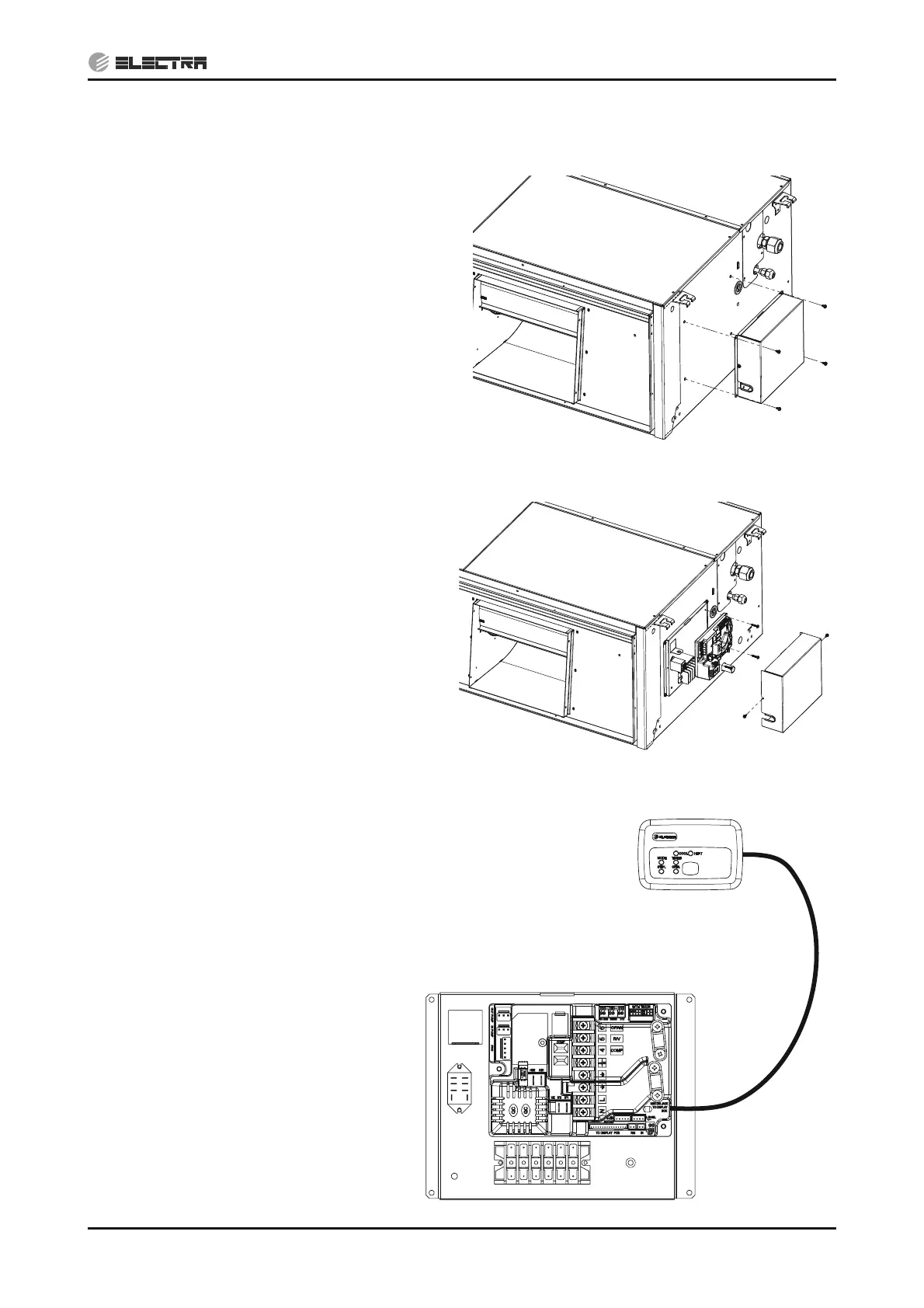

14.4 Indoor Unit: CD
14.4.1 Electronics Assembly Remote Access
In cases of hard access to control assembly it is
made possible to release the assembly from the
indoor unit chassis.
Remove the 4 fixing screws and relocate the 1.
Electronics assembly .
14.4.2 Removing Electronics Assembly
Remove the 2 fixing screws and take out the 1.
cover.
Disconnect all connectors and wires from the 2.
Electronics Board
Remove the 3 fixing screws and take out the 3.
Electronics Board.
"I"
14.4.3 Removing Display Unit
Take out the display connector from the 1.
electronics board. "A"
To Next Page
