14-20
SERVICING
SM OU12HP 2-E.2 GB

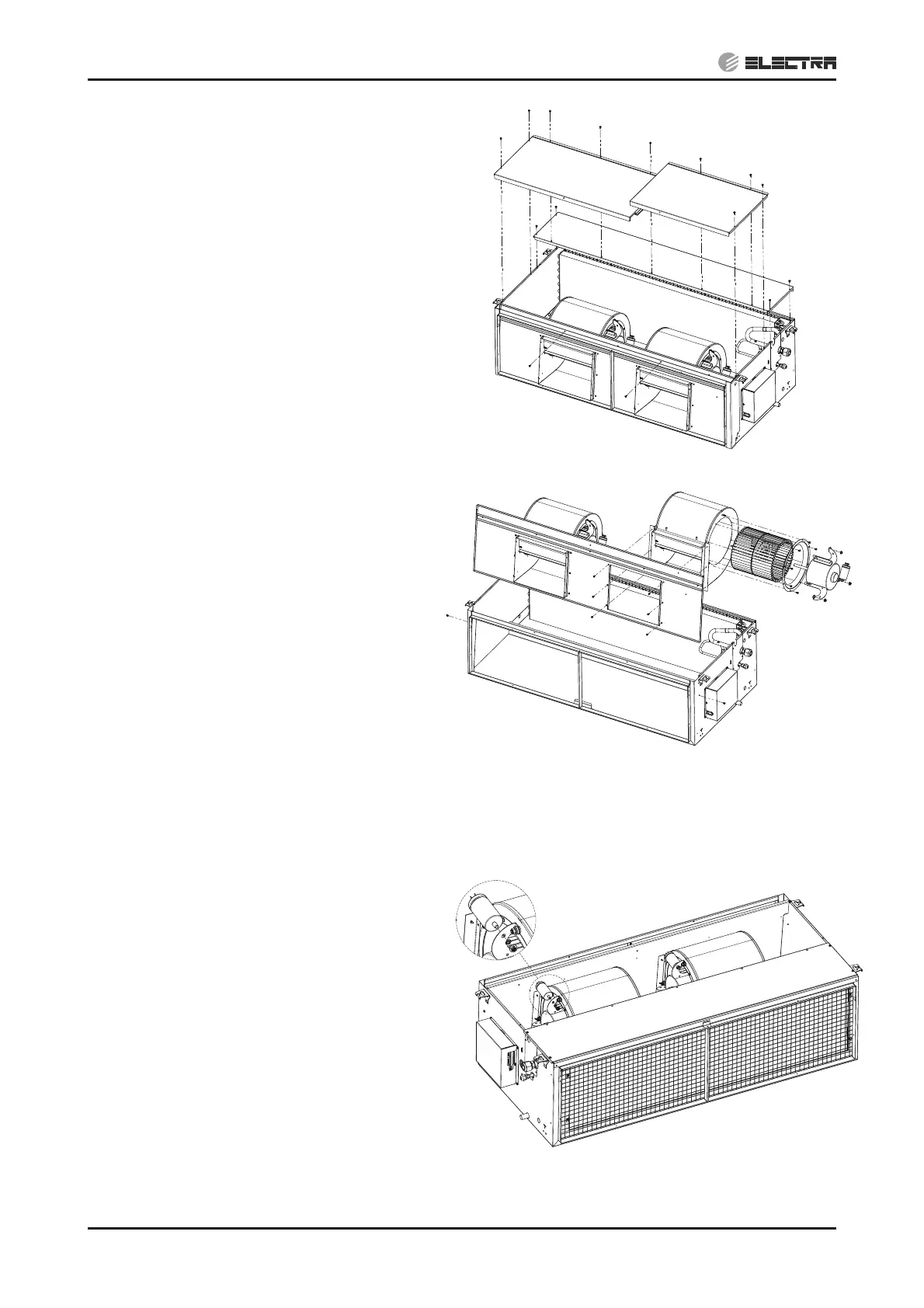

14.4.4 Removing Service Panels
Remove the 15 fixing screws and pull the 1.
service panel to remove it. "J"
14.4.5 Removing Fan and Fan Motor
Disconnect the motor connectors from the 1.
Electronics Board.
Remove the Service Panel according to 2.
14.3.4.
Push the motors cable back into the unit 3.
through the gromet.
Remove the 2 fixing screw connecting the fan 4.
housing assembly to base and pull it .
Remove the 6 fixing screw connecting the 5.
ring to the fan housing.
Remove the 3 fixing hex nuts and the spring 6.
washers that connect the legs support to
fan house and take out the motor with the 3
legs.
Release the allen screw fixing the fan to fan 7.
motor axis and separate it.
14.4.6 Removing Motor Capacitor
Remove the Service Panels, from fans side 1.
only, according to 14.3.4.
Disconnect the tab connections from the 2.
capacitor.
Remove the nut holding the capacitor to the 3.
holder.
"L"
