PERFORMANCE DATA & PRESSURE CURVES
SM OU12HP 2-E.2 GB

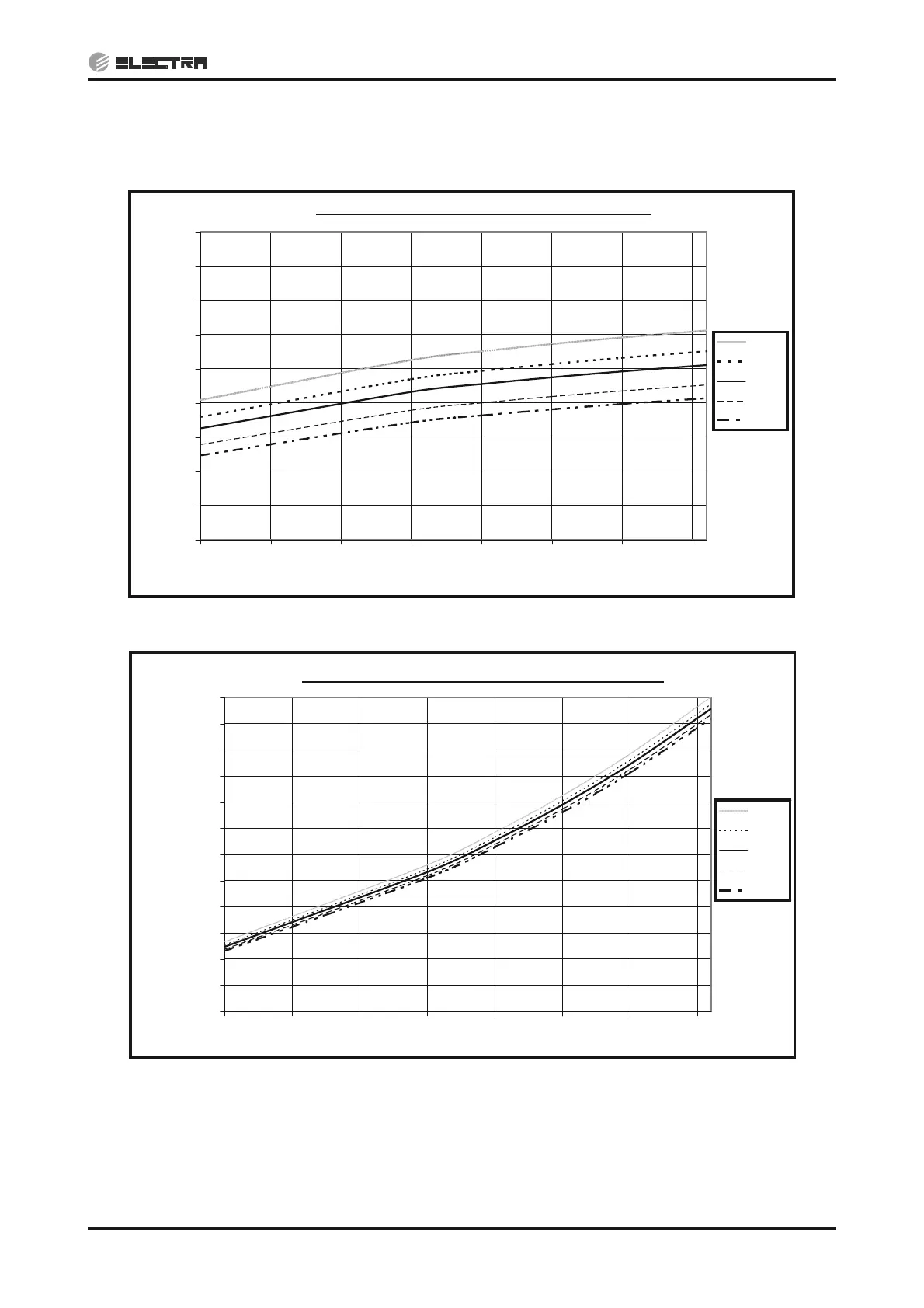

5.5.5 Pressure Curves (Cooling – Technician Mode)
5.5.5.1 Cooling
Suction Pressure - Cooling (Technician Mode)
500
600
700
800
900
1000
1100
1200
1300
1400
10 15 20 25 30 35 40 45
Outdoor DB Temperature [°C]
Suction Pressure [KPa(g)]
32/23
29/21
27/19
24/17
22/15
Discharge Pressure - Cooling (Technician Mode)
1000
1250
1500
1750
2000
2250
2500
2750
3000
3250
3500
3750
4000
10 15 20 25 30 35 40 45
Outdoor DB Temperature [°C]
Discharge Pressure [KPa(g)]
32/23
29/21
27/19
24/17
22/15
