Electra DNG 100 - Page 35

5-20
PERFORMANCE DATA & PRESSURE CURVES
SM OU12HP 2-E.2 GB
5.5.5.2 Heating

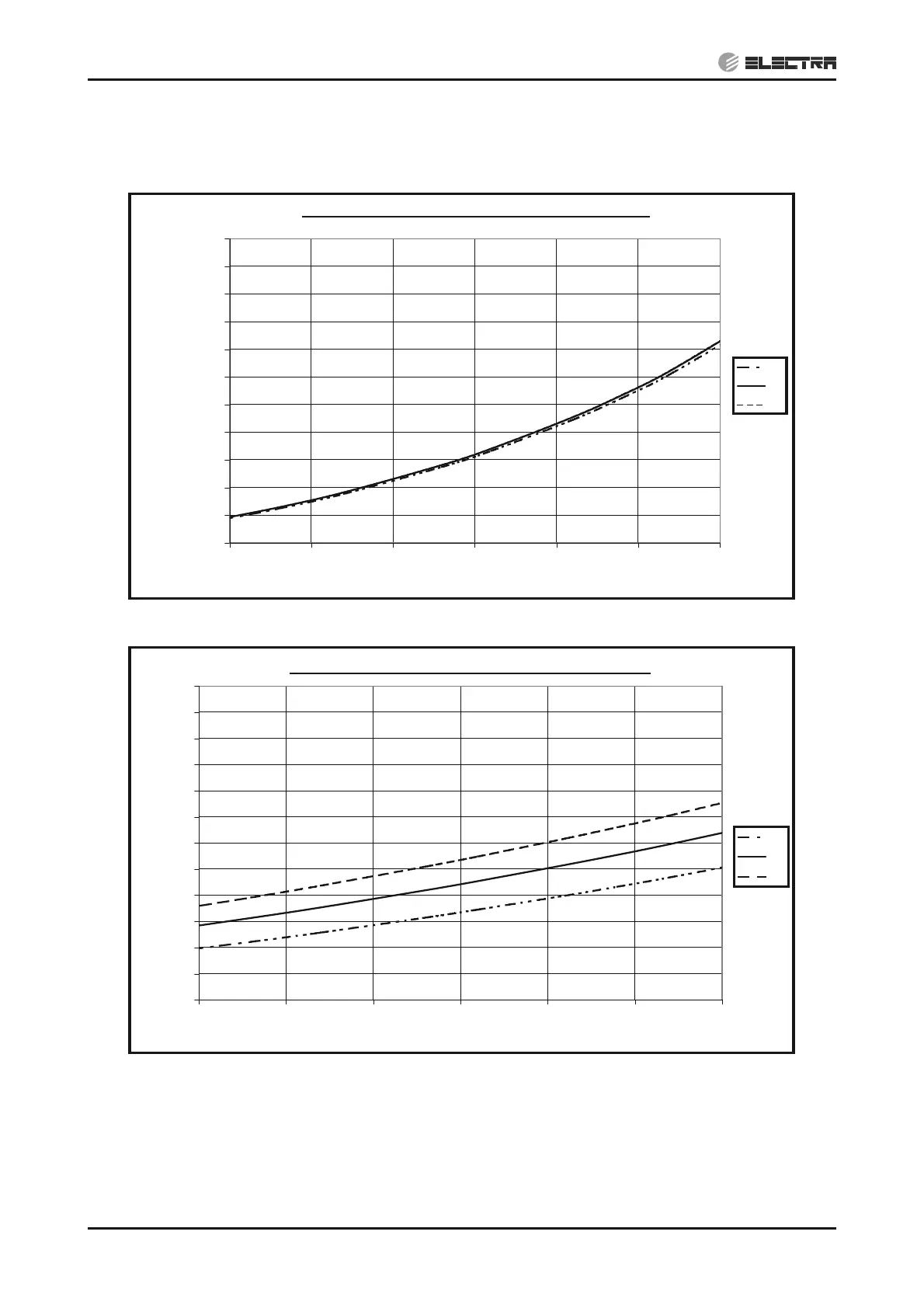

Suction Pressure - Heating (Technician Mode)
200
300
400
500
600
700
800
900
1000
1100
1200
1300
-15 -10 -5 0 5 10 15
Outdoor WB Temperature [°C]
Suction Pressure [KPa(g)]
15
20
25
Discharge Pressure - Heating (Technician Mode)
1000
1250
1500
1750
2000
2250
2500
2750
3000
3250
3500
3750
4000
-15 -10 -5 0 5 10 15
Outdoor WB Temperature [°C]
Discharge Pressure [KPa(g)]
15
20
25
