9-5
WIRING DIAGRAMS
SM OU12HP 2-E.2 GB

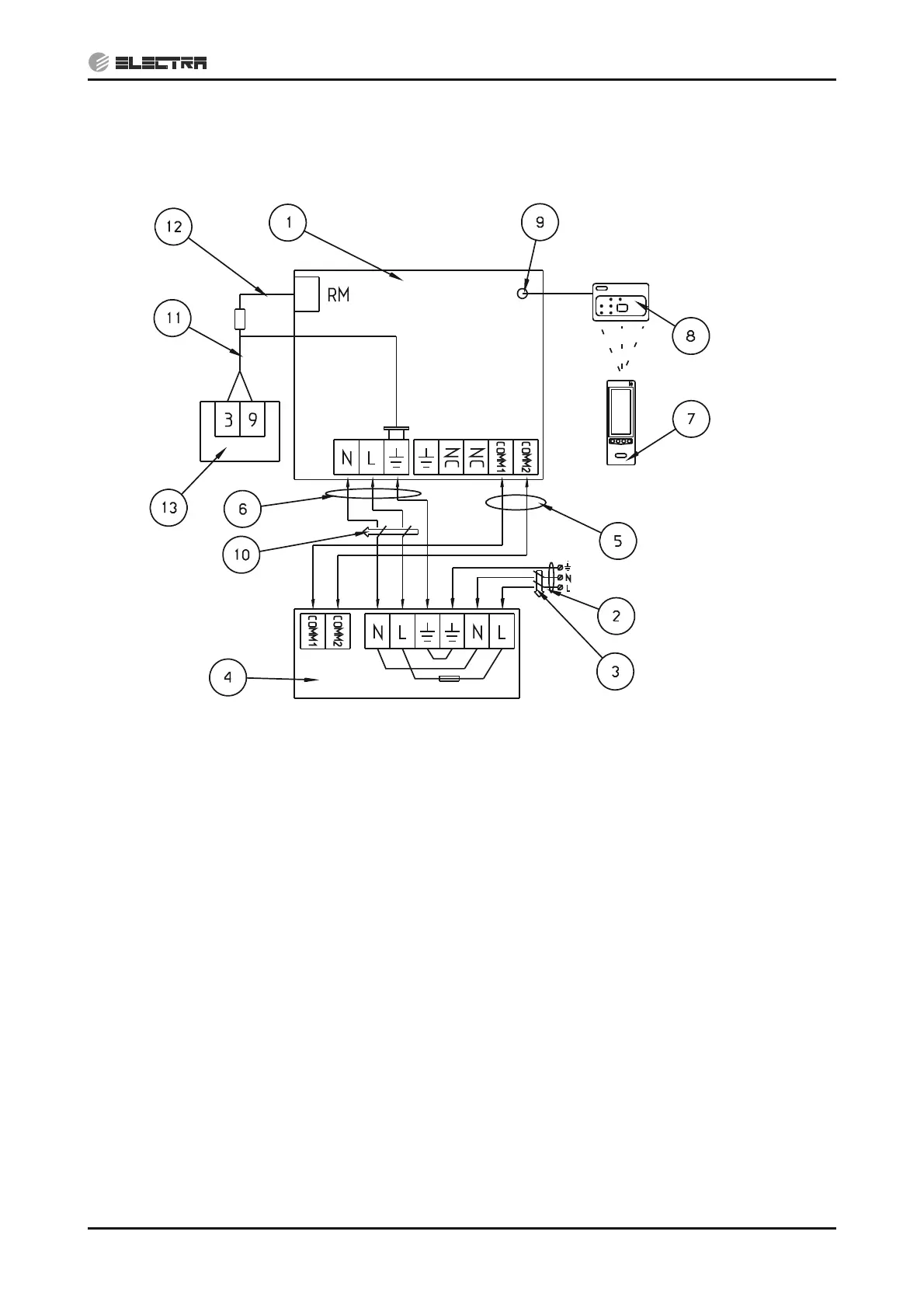

9.6 1PH UNITS POWER SUPPLY TO OUTDOOR
(10.0, 12.5 Kw units)
Indoor Unit1.
Power Supply Cable2.
Main Power Breaker3.
Outdoor Unit4.
Interconnecting cable (2x0.75mm5.
2
)**
Power Interconnecting Cable (3x1.5mm6.
2
)
Wireless remote Control7.
Display Unit8.
Display Connector9.
Power Breaker (*by installer)10.
Control Cable**11.
Sensor Wire with connector12.
Room Temperature Sensor13.
* The power breaker must be of type that disconnects all poles with 3 mm contact
opening.
** Use shielded cable and connect the shield to earth point
