9-6
WIRING DIAGRAMS
SM OU12HP 2-E.2 GB

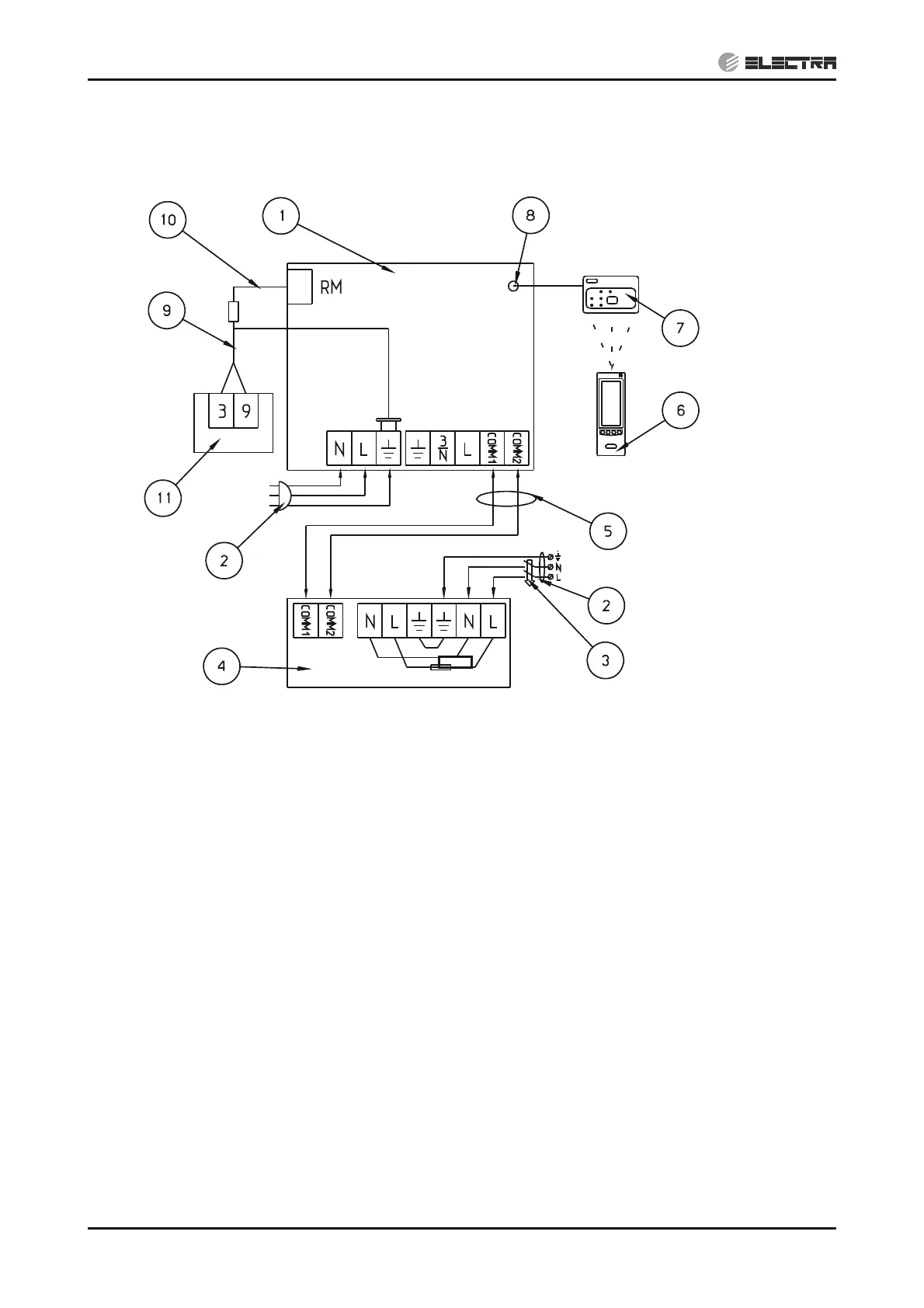

9.7 1PH UNITS POWER SUPPLY TO OUTDOOR and INDOOR UNIT
SEPERATELY
(10.0, 12.5 Kw units)
1. Indoor Unit
2. Power Supply Cable
3. Main Power Breaker
4. Outdoor Unit
5. Interconnecting cable (2x0.75mm
2
)*
6. Wireless remote Control
7. Display Unit
8. Display Connector
9. Control Cable*
10. Sensor Wire with connector
11. Room Temperature Sensor
* Use shielded cable and connect the shield to earth point.
