12-21
CONTROL SYSTEM
SM OU12HP 2-E.2 GB

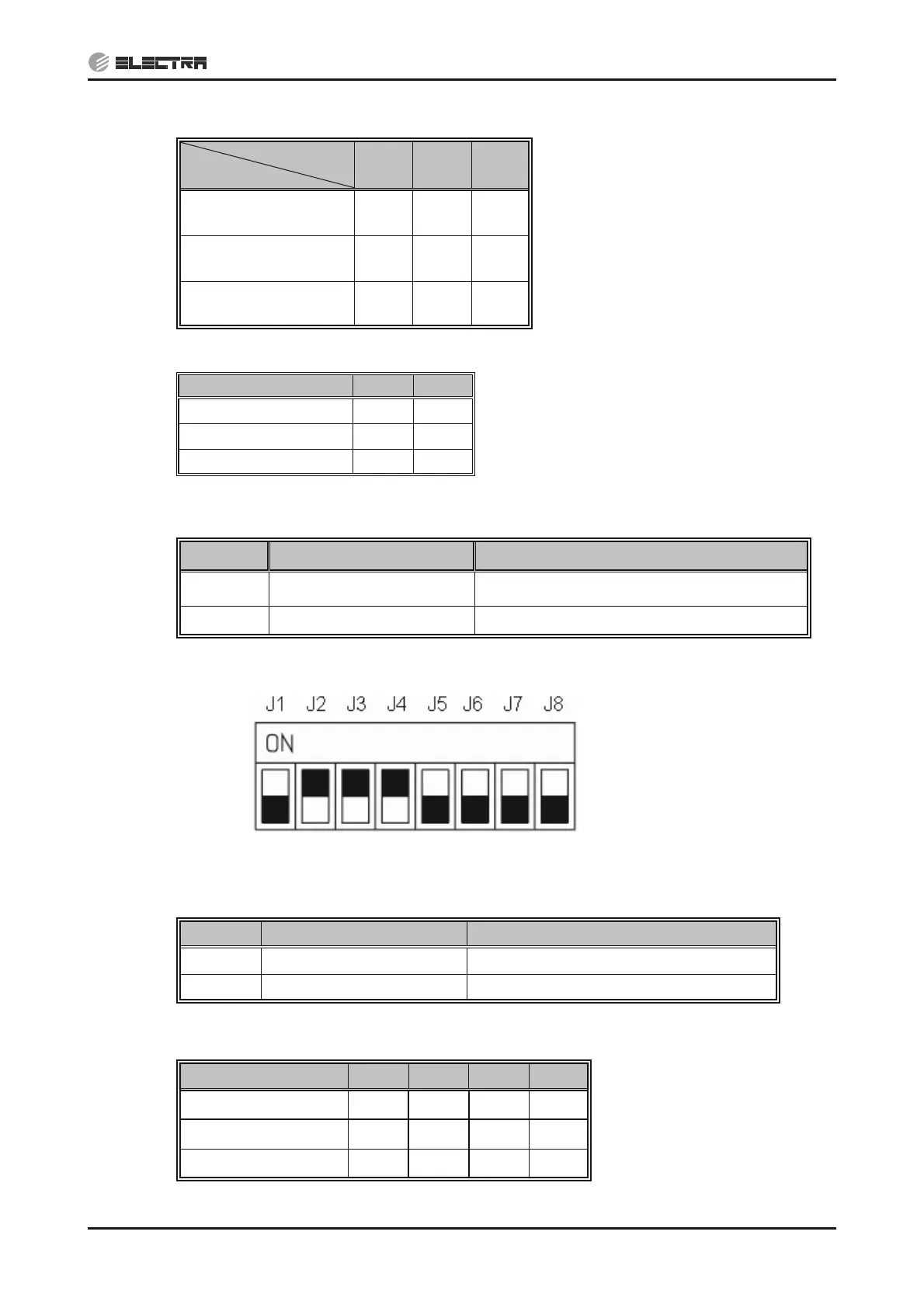

12.8.2.3. Family selection Jumper/DIP – J3, J4, J5
#
Family Name
J3 J4 J5
DNG 4-5HP 1 1 0
EMD 4-5HP 0 1 0
CD 6HP 1 0 1
12.8.2.4. Model selection Jumper/DIP – J7, J8
Model J7 J8
A – 4HP 0 0
B – 5HP 1 0
C – 6HP 0 1
12.8.2.5. Presence Detector/DIP – J9
Position Status Description
0 Open (Disconnected)
Presence detector enabled (Default)
1 Close (Shorted) NA (Not to be used)
12.8.3. ODU Jumpers
12.8.3.1. Self test Jumper/DIP – J1
Position Status Description
0 Open (Disconnected) Normal Operation (Default)
1 Close (Shorted) Self Test enabled
12.8.3.2. ODU Model Selection Jumper/DIP – J2, J3, J4, J5
ODU Model J2 J3 J4 J5
M (DCI 100) ON OFF ON ON
N (DCI 125) OFF ON ON ON
O (DCI 140) ON ON ON ON
