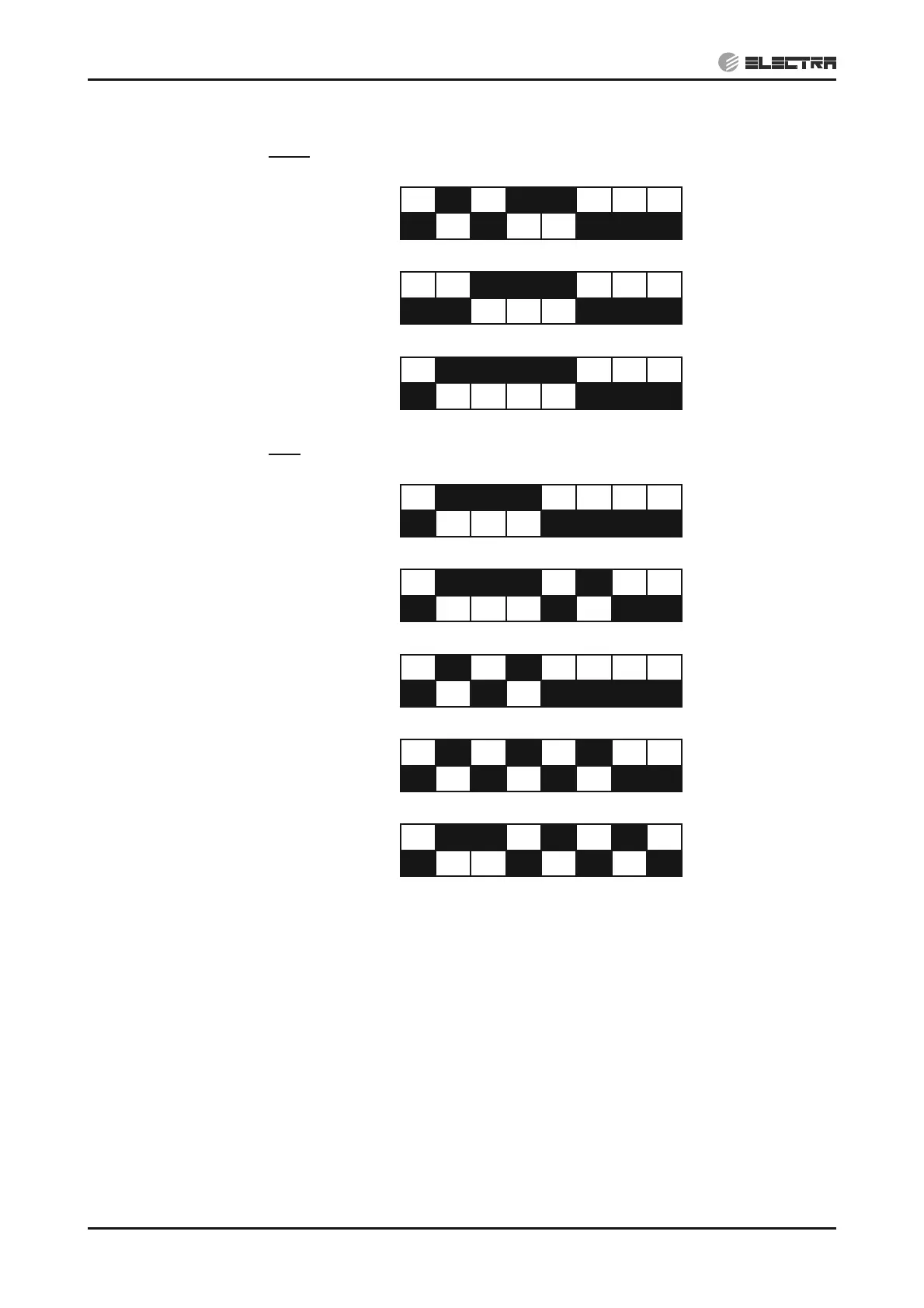

12.8.4. Dip-Switch Setting table
ODU
12345678
ODU 4HP
ON
OFF
ODU 5HP
ON
OFF
ODU 6HP
ON
OFF
IDU
12345789
DNG100
ON
OFF
DNG125
ON
OFF
EMD100
ON
OFF
EMD125
ON
OFF
CD140
ON
OFF
Note: in some cases where an external room thermostat kit is installed, the configuration of J2
in the indoor unit controller will be set to OFF.
