4 Part Names and Functions (continued)

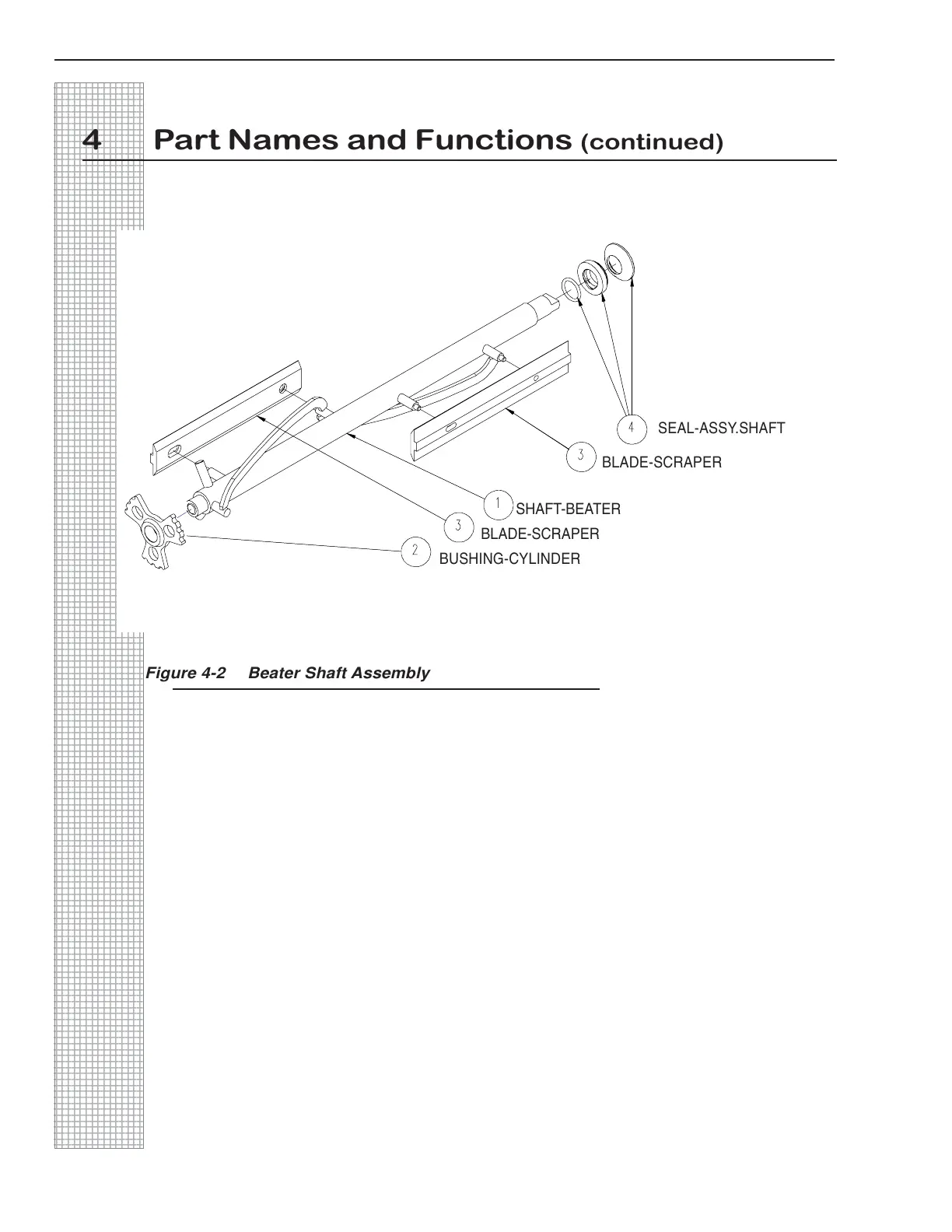

Figure 4-2 Beater Shaft Assembly

BUSHING-CYLINDER

SEAL-ASSY.SHAFT

BLADE-SCRAPER

SHAFT-BEATER

BLADE-SCRAPER
