184955-01

Use only original or authorized replacement parts with this freezer

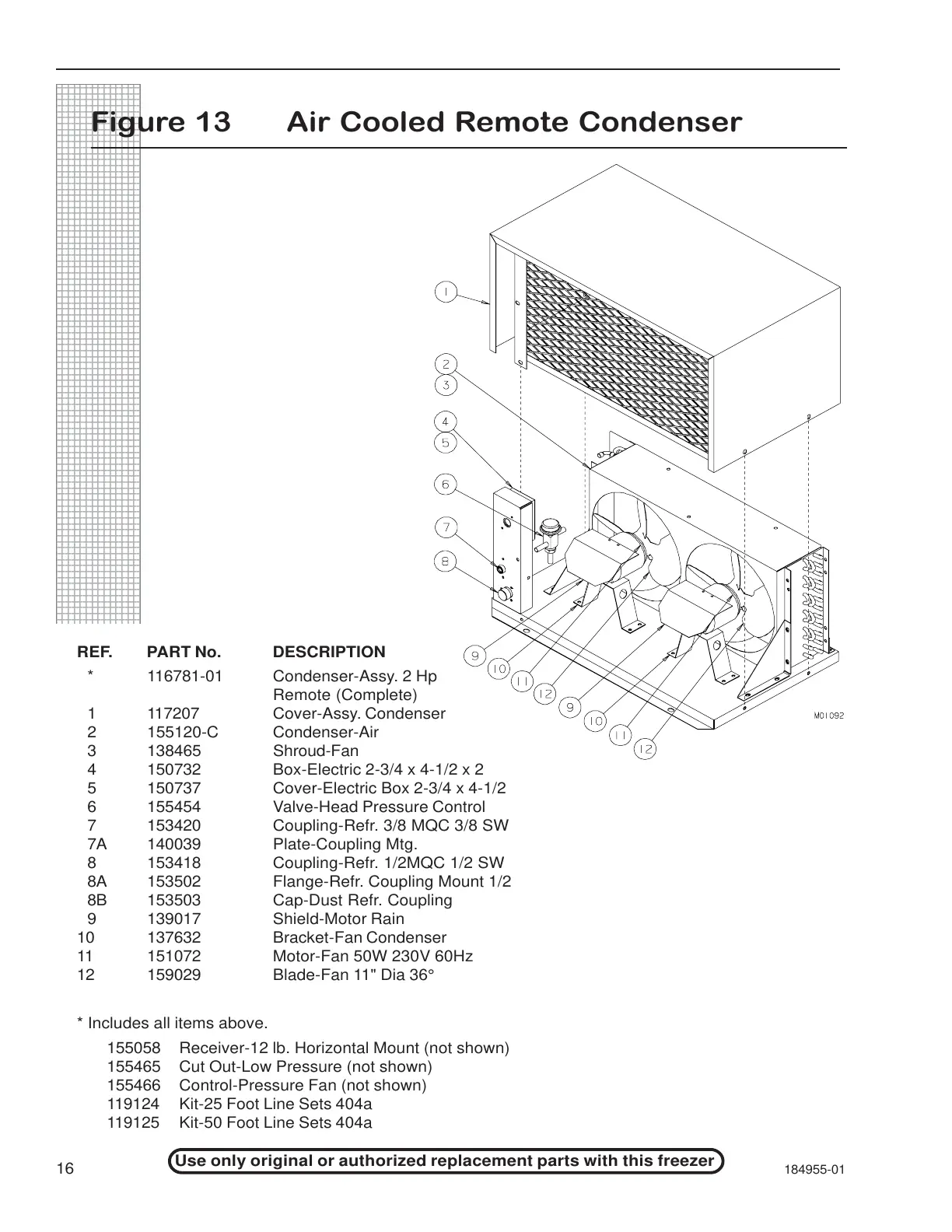

Figure 13 Air Cooled Remote Condenser

REF. PART No. DESCRIPTION

* 116781-01 Condenser-Assy. 2 Hp

Remote (Complete)

1 117207 Cover-Assy. Condenser

2 155120-C Condenser-Air

3 138465 Shroud-Fan

4 150732 Box-Electric 2-3/4 x 4-1/2 x 2

5 150737 Cover-Electric Box 2-3/4 x 4-1/2

6 155454 Valve-Head Pressure Control

7 153420 Coupling-Refr. 3/8 MQC 3/8 SW

7A 140039 Plate-Coupling Mtg.

8 153418 Coupling-Refr. 1/2MQC 1/2 SW

8A 153502 Flange-Refr. Coupling Mount 1/2

8B 153503 Cap-Dust Refr. Coupling

9 139017 Shield-Motor Rain

10 137632 Bracket-Fan Condenser

11 151072 Motor-Fan 50W 230V 60Hz

12 159029 Blade-Fan 11" Dia 36°

* Includes all items above.

155058 Receiver-12 lb. Horizontal Mount (not shown)

155465 Cut Out-Low Pressure (not shown)

155466 Control-Pressure Fan (not shown)

119124 Kit-25 Foot Line Sets 404a

119125 Kit-50 Foot Line Sets 404a
