Use only original or authorized replacement parts with this freezer

.

184955-01

15

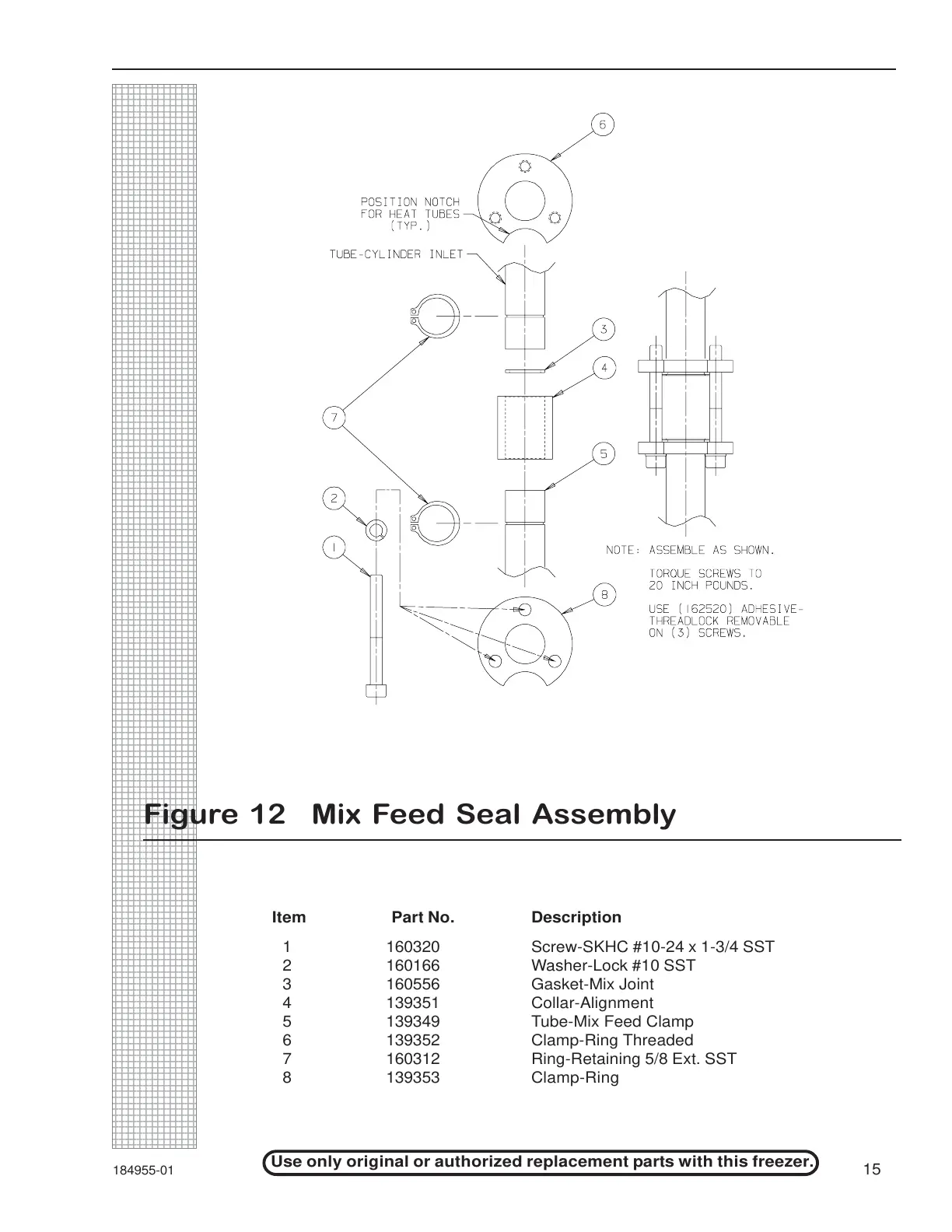

Figure 12 Mix Feed Seal Assembly

Item Part No. Description

1 160320 Screw-SKHC #10-24 x 1-3/4 SST

2 160166 Washer-Lock #10 SST

3 160556 Gasket-Mix Joint

4 139351 Collar-Alignment

5 139349 Tube-Mix Feed Clamp

6 139352 Clamp-Ring Threaded

7 160312 Ring-Retaining 5/8 Ext. SST

8 139353 Clamp-Ring
