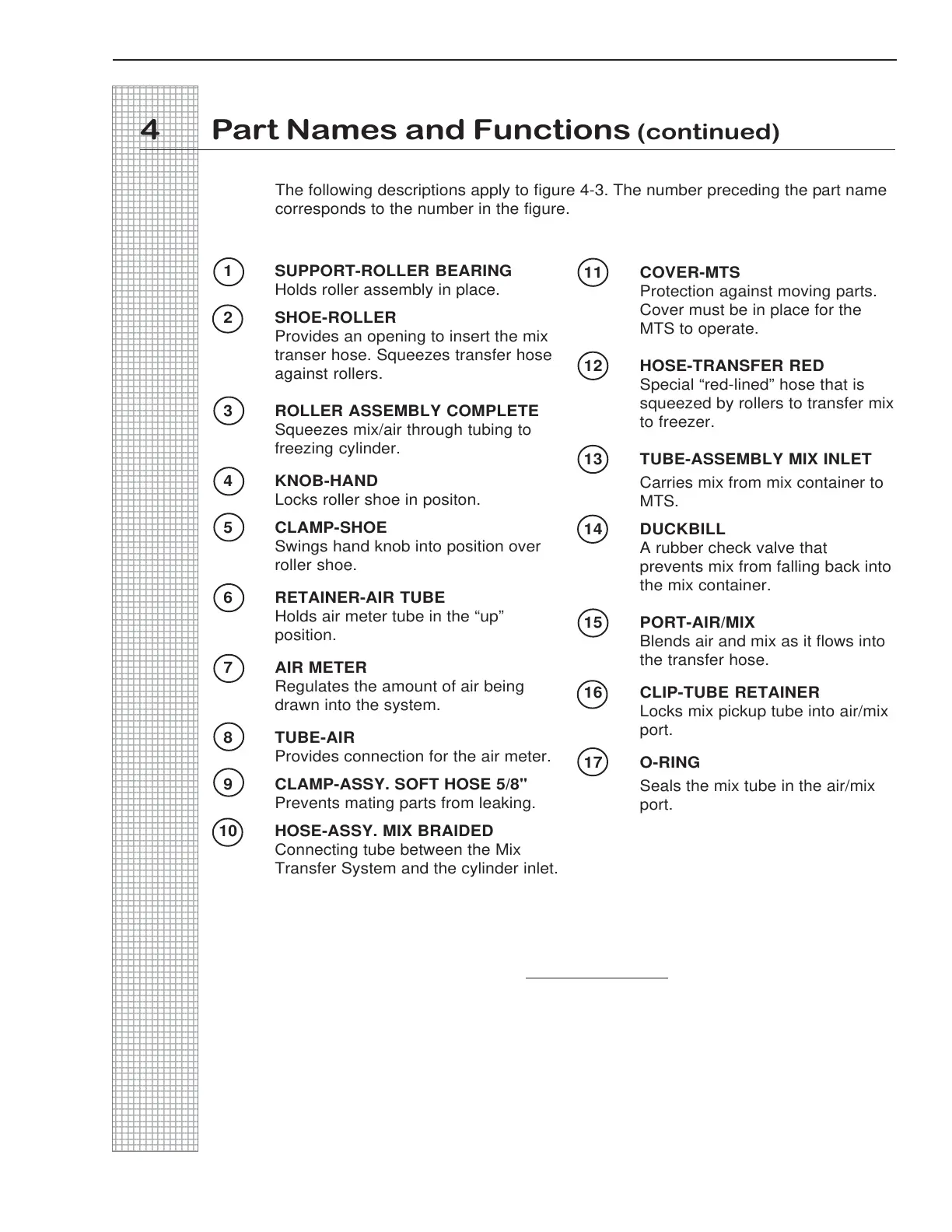

4 Part Names and Functions (continued)
The following descriptions apply to figure 4-3. The number preceding the part name
corresponds to the number in the figure.
11 COVER-MTS
Protection against moving parts.
Cover must be in place for the
MTS to operate.
12 HOSE-TRANSFER RED
Special “red-lined” hose that is
squeezed by rollers to transfer mix
to freezer.
13 TUBE-ASSEMBLY MIX INLET
Carries mix from mix container to
MTS.
14 DUCKBILL
A rubber check valve that
prevents mix from falling back into
the mix container.
15 PORT-AIR/MIX
Blends air and mix as it flows into
the transfer hose.
16 CLIP-TUBE RETAINER
Locks mix pickup tube into air/mix
port.
17 O-RING
Seals the mix tube in the air/mix
port.
1 SUPPORT-ROLLER BEARING
Holds roller assembly in place.
2 SHOE-ROLLER
Provides an opening to insert the mix
transer hose. Squeezes transfer hose
against rollers.
3 ROLLER ASSEMBLY COMPLETE
Squeezes mix/air through tubing to
freezing cylinder.
4 KNOB-HAND
Locks roller shoe in positon.
5 CLAMP-SHOE
Swings hand knob into position over
roller shoe.
6 RETAINER-AIR TUBE
Holds air meter tube in the “up”
position.
7 AIR METER
Regulates the amount of air being
drawn into the system.
8 TUBE-AIR
Provides connection for the air meter.
9 CLAMP-ASSY. SOFT HOSE 5/8"
Prevents mating parts from leaking.
10 HOSE-ASSY. MIX BRAIDED
Connecting tube between the Mix
Transfer System and the cylinder inlet.
