Use only original or authorized replacement parts with this freezer .
184955-01 11

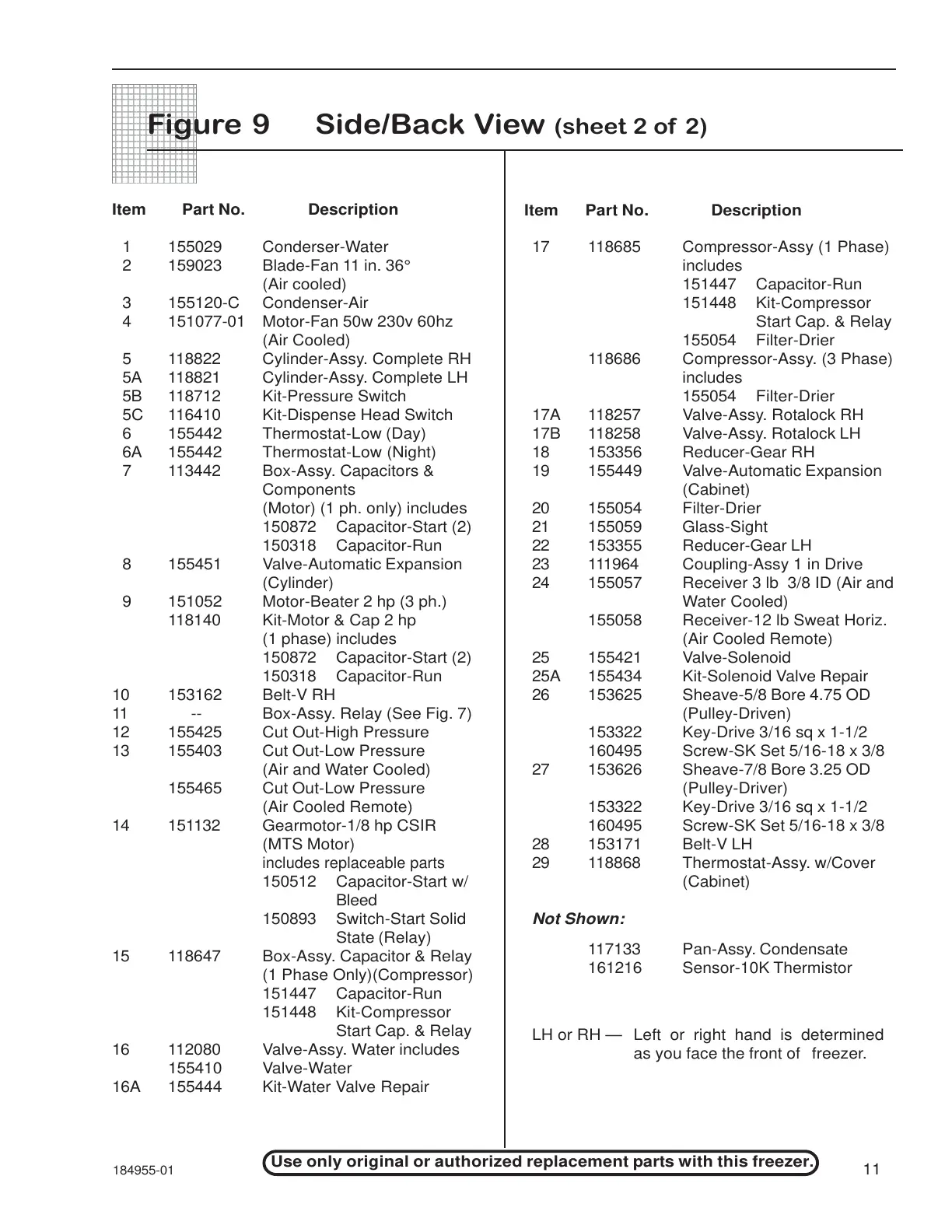

Figure 9 Side/Back View (sheet 2 of 2)
Item Part No. Description
1 155029 Conderser-Water
2 159023 Blade-Fan 11 in. 36°
(Air cooled)
3 155120-C Condenser-Air
4 151077-01 Motor-Fan 50w 230v 60hz
(Air Cooled)
5 118822 Cylinder-Assy. Complete RH
5A 118821 Cylinder-Assy. Complete LH
5B 118712 Kit-Pressure Switch
5C 116410 Kit-Dispense Head Switch
6 155442 Thermostat-Low (Day)
6A 155442 Thermostat-Low (Night)
7 113442 Box-Assy. Capacitors &
Components
(Motor) (1 ph. only) includes
150872 Capacitor-Start (2)
150318 Capacitor-Run
8 155451 Valve-Automatic Expansion
(Cylinder)
9 151052 Motor-Beater 2 hp (3 ph.)
118140 Kit-Motor & Cap 2 hp
(1 phase) includes
150872 Capacitor-Start (2)
150318 Capacitor-Run
10 153162 Belt-V RH
11 -- Box-Assy. Relay (See Fig. 7)
12 155425 Cut Out-High Pressure
13 155403 Cut Out-Low Pressure
(Air and Water Cooled)
155465 Cut Out-Low Pressure
(Air Cooled Remote)
14 151132 Gearmotor-1/8 hp CSIR
(MTS Motor)
includes replaceable parts
150512 Capacitor-Start w/
Bleed
150893 Switch-Start Solid
State (Relay)
15 118647 Box-Assy. Capacitor & Relay
(1 Phase Only)(Compressor)
151447 Capacitor-Run
151448 Kit-Compressor
Start Cap. & Relay
16 112080 Valve-Assy. Water includes
155410 Valve-Water
16A 155444 Kit-Water Valve Repair
17 118685 Compressor-Assy (1 Phase)
includes
151447 Capacitor-Run
151448 Kit-Compressor
Start Cap. & Relay
155054 Filter-Drier
118686 Compressor-Assy. (3 Phase)
includes
155054 Filter-Drier
17A 118257 Valve-Assy. Rotalock RH
17B 118258 Valve-Assy. Rotalock LH
18 153356 Reducer-Gear RH
19 155449 Valve-Automatic Expansion
(Cabinet)
20 155054 Filter-Drier
21 155059 Glass-Sight
22 153355 Reducer-Gear LH
23 111964 Coupling-Assy 1 in Drive
24 155057 Receiver 3 lb 3/8 ID (Air and
Water Cooled)
155058 Receiver-12 lb Sweat Horiz.
(Air Cooled Remote)
25 155421 Valve-Solenoid
25A 155434 Kit-Solenoid Valve Repair
26 153625 Sheave-5/8 Bore 4.75 OD
(Pulley-Driven)
153322 Key-Drive 3/16 sq x 1-1/2
160495 Screw-SK Set 5/16-18 x 3/8
27 153626 Sheave-7/8 Bore 3.25 OD
(Pulley-Driver)
153322 Key-Drive 3/16 sq x 1-1/2
160495 Screw-SK Set 5/16-18 x 3/8
28 153171 Belt-V LH
29 118868 Thermostat-Assy. w/Cover
(Cabinet)
Not Shown:
117133 Pan-Assy. Condensate
161216 Sensor-10K Thermistor
LH or RH — Left or right hand is determined
as you face the front of freezer.
Item Part No. Description
