5 Part Names and Functions

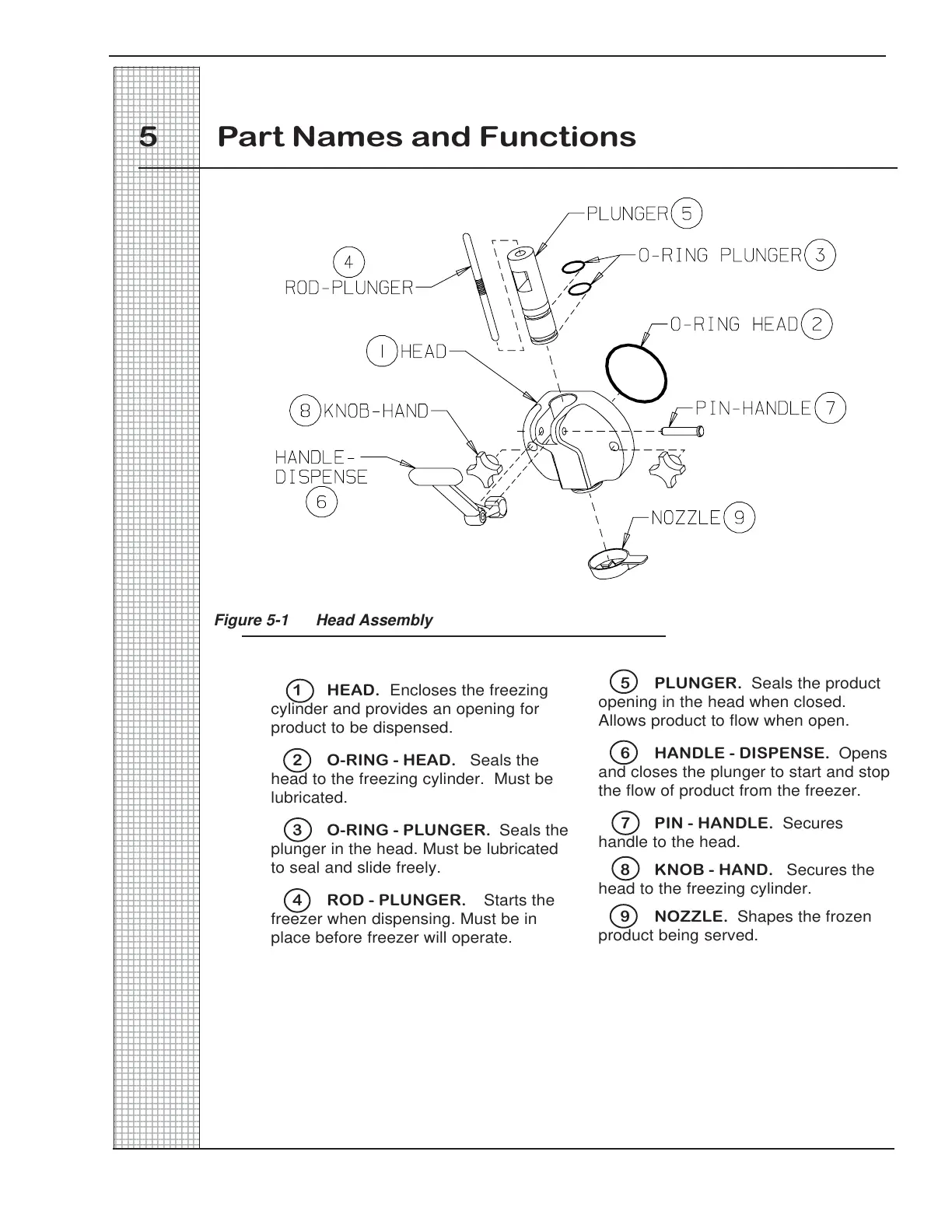

Figure 5-1 Head Assembly

5 PLUNGER.

Seals the product

opening in the head when closed.

Allows product to flow when open.

6 HANDLE - DISPENSE.

Opens

and closes the plunger to start and stop

the flow of product from the freezer.

7 PIN - HANDLE. Secures

handle to the head.

8 KNOB - HAND.

Secures the

head to the freezing cylinder.

9 NOZZLE.

Shapes the frozen

product being served.

1 HEAD.

Encloses the freezing

cylinder and provides an opening for

product to be dispensed.

2 O-RING - HEAD

.

Seals the

head to the freezing cylinder. Must be

lubricated.

3 O-RING - PLUNGER. Seals the

plunger in the head. Must be lubricated

to seal and slide freely.

4 ROD - PLUNGER.

Starts the

freezer when dispensing. Must be in

place before freezer will operate.
