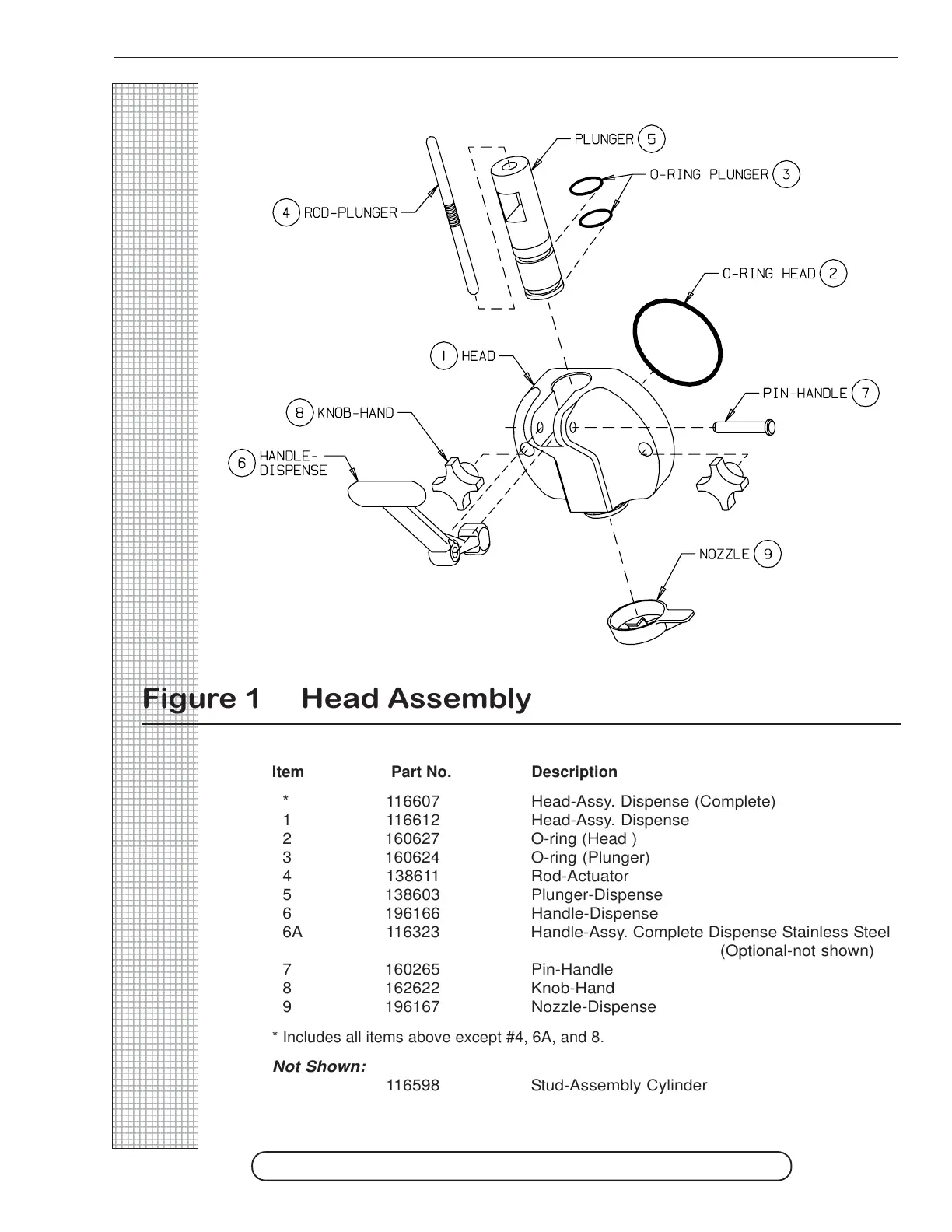

ELECTRO FREEZE cs5 - Figure 1 Head Assembly

ELECTRO FREEZE Model CS5
184627-01 Use only original or authorized replacement parts with this freezer 1
