10 184627-01 7/02

IMPORTANT: All parts shown are for standard models designed for 115v/IMPORTANT: All parts shown are for standard models designed for 115v/

IMPORTANT: All parts shown are for standard models designed for 115v/IMPORTANT: All parts shown are for standard models designed for 115v/

IMPORTANT: All parts shown are for standard models designed for 115v/

60Hz/1phase.60Hz/1phase.

60Hz/1phase.60Hz/1phase.

60Hz/1phase.

* As Required

** Items Included In O-Ring Kit No. 116851

*** LH or RH — Left or right hand is determined as you face the front of freezer.

NLA No Longer Available

Use only original or authorized replacement parts with this freezer

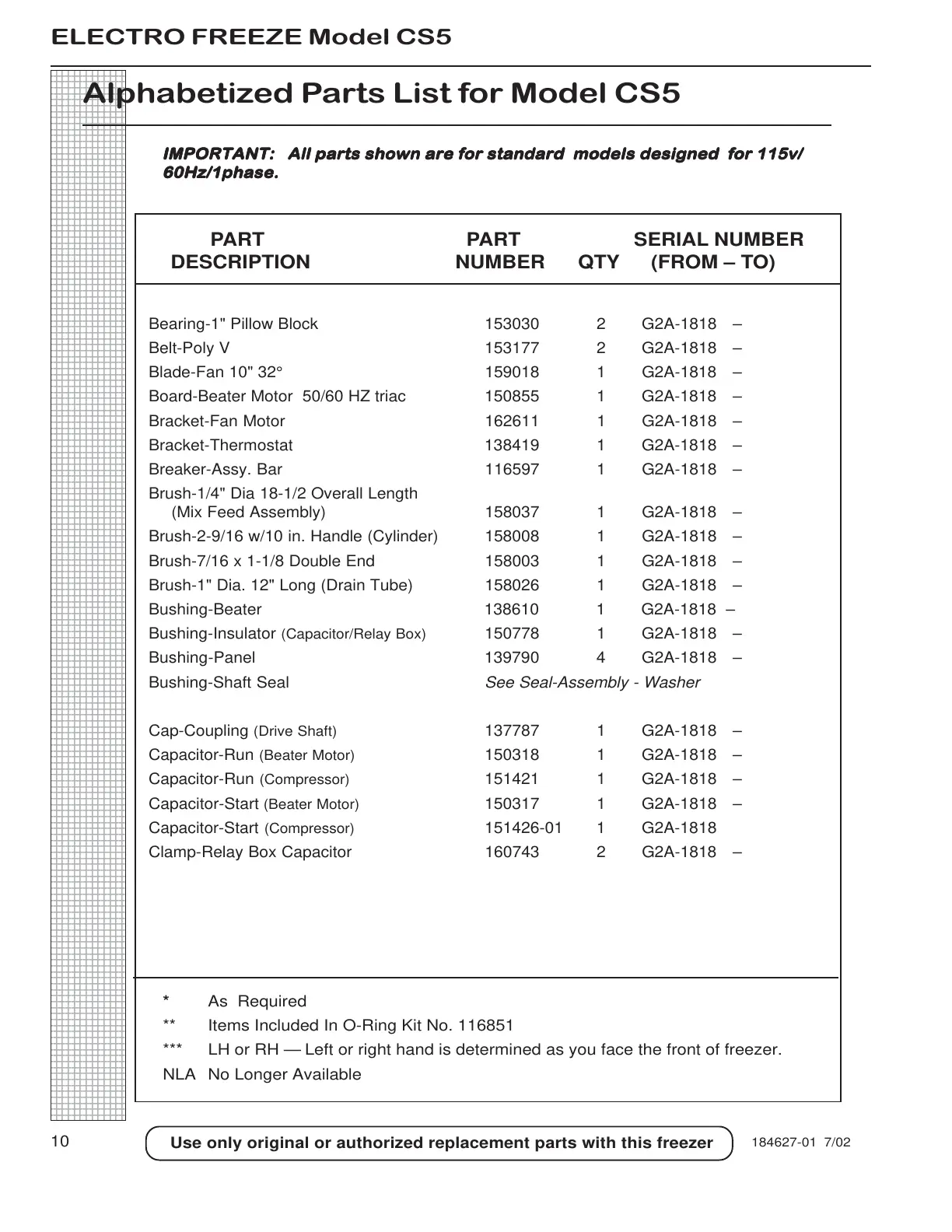

Alphabetized Parts List for Model CS5

ELECTRO FREEZE Model CS5

PART PART SERIAL NUMBER

DESCRIPTION NUMBER QTY (FROM – TO)

Bearing-1" Pillow Block 153030 2 G2A-1818 –

Belt-Poly V 153177 2 G2A-1818 –

Blade-Fan 10" 32° 159018 1 G2A-1818 –

Board-Beater Motor 50/60 HZ triac 150855 1 G2A-1818 –

Bracket-Fan Motor 162611 1 G2A-1818 –

Bracket-Thermostat 138419 1 G2A-1818 –

Breaker-Assy. Bar 116597 1 G2A-1818 –

Brush-1/4" Dia 18-1/2 Overall Length

(Mix Feed Assembly) 158037 1 G2A-1818 –

Brush-2-9/16 w/10 in. Handle (Cylinder) 158008 1 G2A-1818 –

Brush-7/16 x 1-1/8 Double End 158003 1 G2A-1818 –

Brush-1" Dia. 12" Long (Drain Tube) 158026 1 G2A-1818 –

Bushing-Beater 138610 1 G2A-1818 –

Bushing-Insulator

(Capacitor/Relay Box)

150778 1 G2A-1818 –

Bushing-Panel 139790 4 G2A-1818 –

Bushing-Shaft Seal See Seal-Assembly - Washer

Cap-Coupling

(Drive Shaft)

137787 1 G2A-1818 –

Capacitor-Run

(Beater Motor)

150318 1 G2A-1818 –

Capacitor-Run

(Compressor)

151421 1 G2A-1818 –

Capacitor-Start

(Beater Motor)

150317 1 G2A-1818 –

Capacitor-Start

(Compressor)

151426-01 1 G2A-1818

Clamp-Relay Box Capacitor 160743 2 G2A-1818 –
