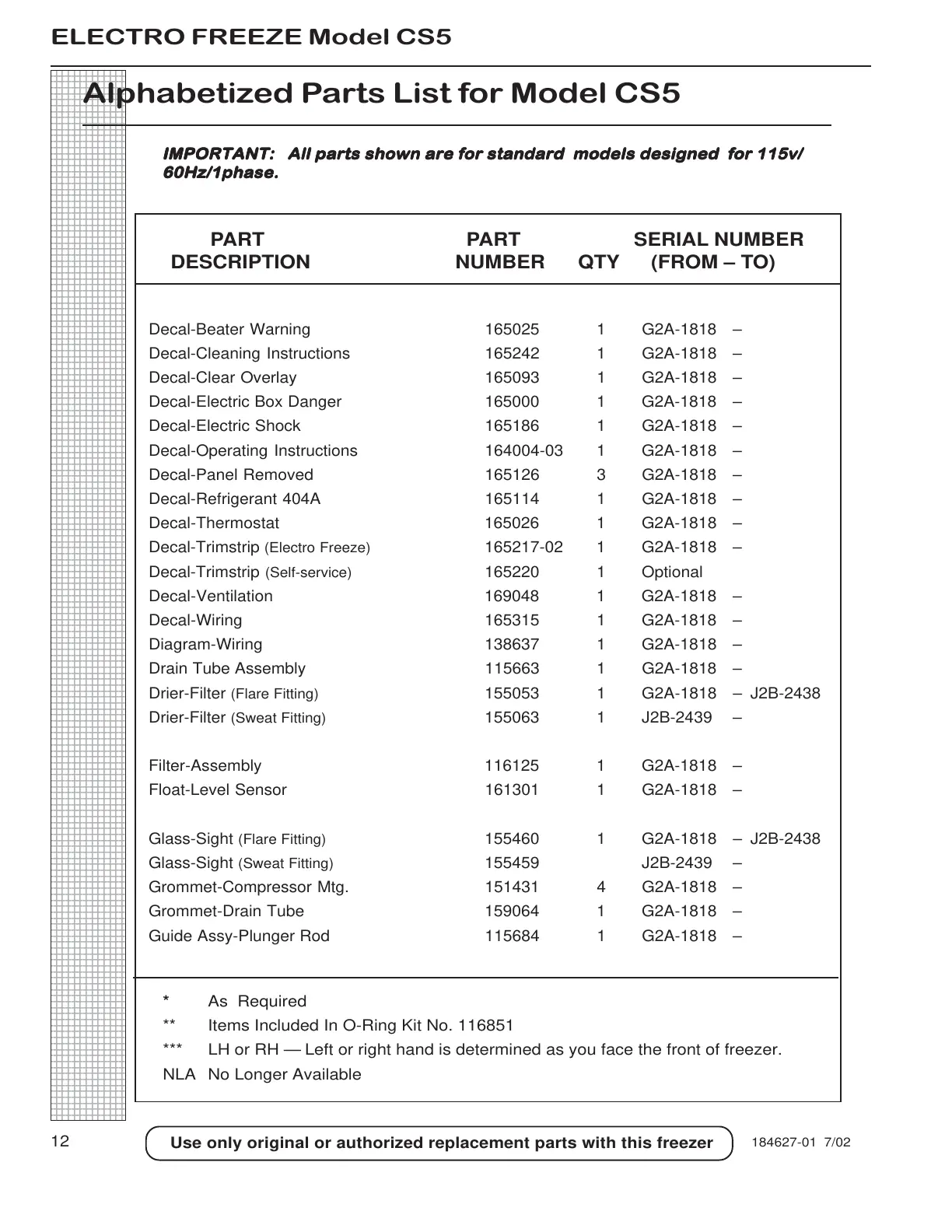

Alphabetized Parts List for Model CS5

ELECTRO FREEZE Model CS5

PART PART SERIAL NUMBER

DESCRIPTION NUMBER QTY (FROM – TO)

Decal-Beater Warning 165025 1 G2A-1818 –

Decal-Cleaning Instructions 165242 1 G2A-1818 –

Decal-Clear Overlay 165093 1 G2A-1818 –

Decal-Electric Box Danger 165000 1 G2A-1818 –

Decal-Electric Shock 165186 1 G2A-1818 –

Decal-Operating Instructions 164004-03 1 G2A-1818 –

Decal-Panel Removed 165126 3 G2A-1818 –

Decal-Refrigerant 404A 165114 1 G2A-1818 –

Decal-Thermostat 165026 1 G2A-1818 –

Decal-Trimstrip

(Electro Freeze)

165217-02 1 G2A-1818 –

Decal-Trimstrip

(Self-service)

165220 1 Optional

Decal-Ventilation 169048 1 G2A-1818 –

Decal-Wiring 165315 1 G2A-1818 –

Diagram-Wiring 138637 1 G2A-1818 –

Drain Tube Assembly 115663 1 G2A-1818 –

Drier-Filter

(Flare Fitting)

155053 1 G2A-1818 – J2B-2438

Drier-Filter

(Sweat Fitting)

155063 1 J2B-2439 –

Filter-Assembly 116125 1 G2A-1818 –

Float-Level Sensor 161301 1 G2A-1818 –

Glass-Sight

(Flare Fitting)

155460 1 G2A-1818 – J2B-2438

Glass-Sight

(Sweat Fitting)

155459 J2B-2439 –

Grommet-Compressor Mtg. 151431 4 G2A-1818 –

Grommet-Drain Tube 159064 1 G2A-1818 –

Guide Assy-Plunger Rod 115684 1 G2A-1818 –
