12345678901234

IMPORTANT: All parts shown are for standard models designed for 115v/IMPORTANT: All parts shown are for standard models designed for 115v/

IMPORTANT: All parts shown are for standard models designed for 115v/IMPORTANT: All parts shown are for standard models designed for 115v/

IMPORTANT: All parts shown are for standard models designed for 115v/

60Hz/1phase.60Hz/1phase.

60Hz/1phase.60Hz/1phase.

60Hz/1phase.

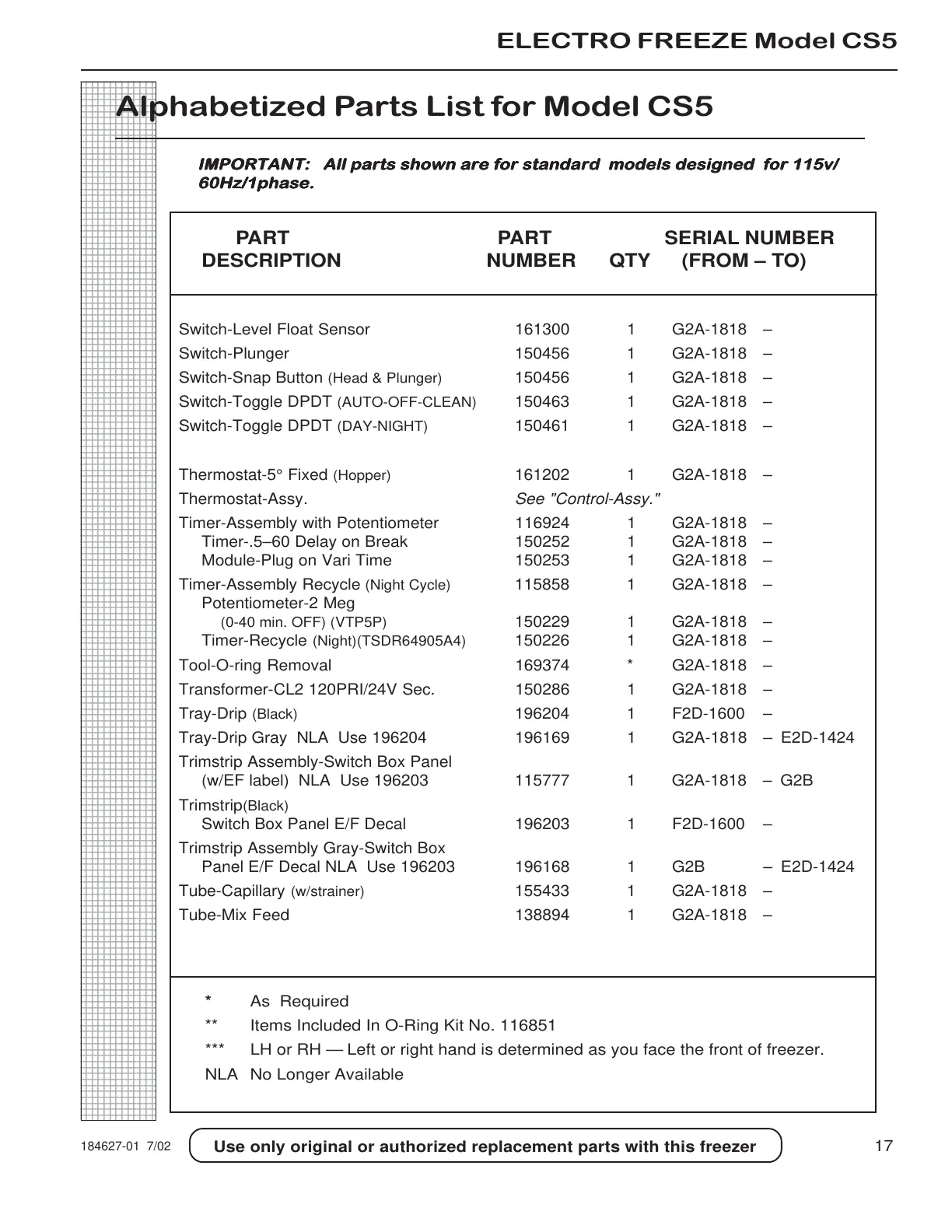

Alphabetized Parts List for Model CS5

* As Required

** Items Included In O-Ring Kit No. 116851

*** LH or RH — Left or right hand is determined as you face the front of freezer.

NLA No Longer Available

17

184627-01 7/02

Use only original or authorized replacement parts with this freezer

ELECTRO FREEZE Model CS5

PART PART SERIAL NUMBER

DESCRIPTION NUMBER QTY (FROM – TO)

Switch-Level Float Sensor 161300 1 G2A-1818 –

Switch-Plunger 150456 1 G2A-1818 –

Switch-Snap Button

(Head & Plunger)

150456 1 G2A-1818 –

Switch-Toggle DPDT

(AUTO-OFF-CLEAN)

150463 1 G2A-1818 –

Switch-Toggle DPDT

(DAY-NIGHT)

150461 1 G2A-1818 –

Thermostat-5° Fixed

(Hopper)

161202 1 G2A-1818 –

Thermostat-Assy. See "Control-Assy."

Timer-Assembly with Potentiometer 116924 1 G2A-1818 –

Timer-.5–60 Delay on Break 150252 1 G2A-1818 –

Module-Plug on Vari Time 150253 1 G2A-1818 –

Timer-Assembly Recycle

(Night Cycle)

115858 1 G2A-1818 –

Potentiometer-2 Meg

(0-40 min. OFF) (VTP5P)

150229 1 G2A-1818 –

Timer-Recycle

(Night)(TSDR64905A4)

150226 1 G2A-1818 –

Tool-O-ring Removal 169374 * G2A-1818 –

Transformer-CL2 120PRI/24V Sec. 150286 1 G2A-1818 –

Tray-Drip

(Black)

196204 1 F2D-1600 –

Tray-Drip Gray NLA Use 196204 196169 1 G2A-1818 – E2D-1424

Trimstrip Assembly-Switch Box Panel

(w/EF label) NLA Use 196203 115777 1 G2A-1818 – G2B

Trimstrip

(Black)

Switch Box Panel E/F Decal 196203 1 F2D-1600 –

Trimstrip Assembly Gray-Switch Box

Panel E/F Decal NLA Use 196203 196168 1 G2B – E2D-1424

Tube-Capillary

(w/strainer)

155433 1 G2A-1818 –

Tube-Mix Feed 138894 1 G2A-1818 –
