ELECTRO FREEZE FM8

ELECTRO FREEZE Model FM8

184965-01

Use only original or authorized replacement parts with this freezer 9

2345678901234567890123456789012123456789012345678901234567890121234567890123456789012345678901212345678901234567890123456789012123456789012345678901234567890121234567890123456

184979-04

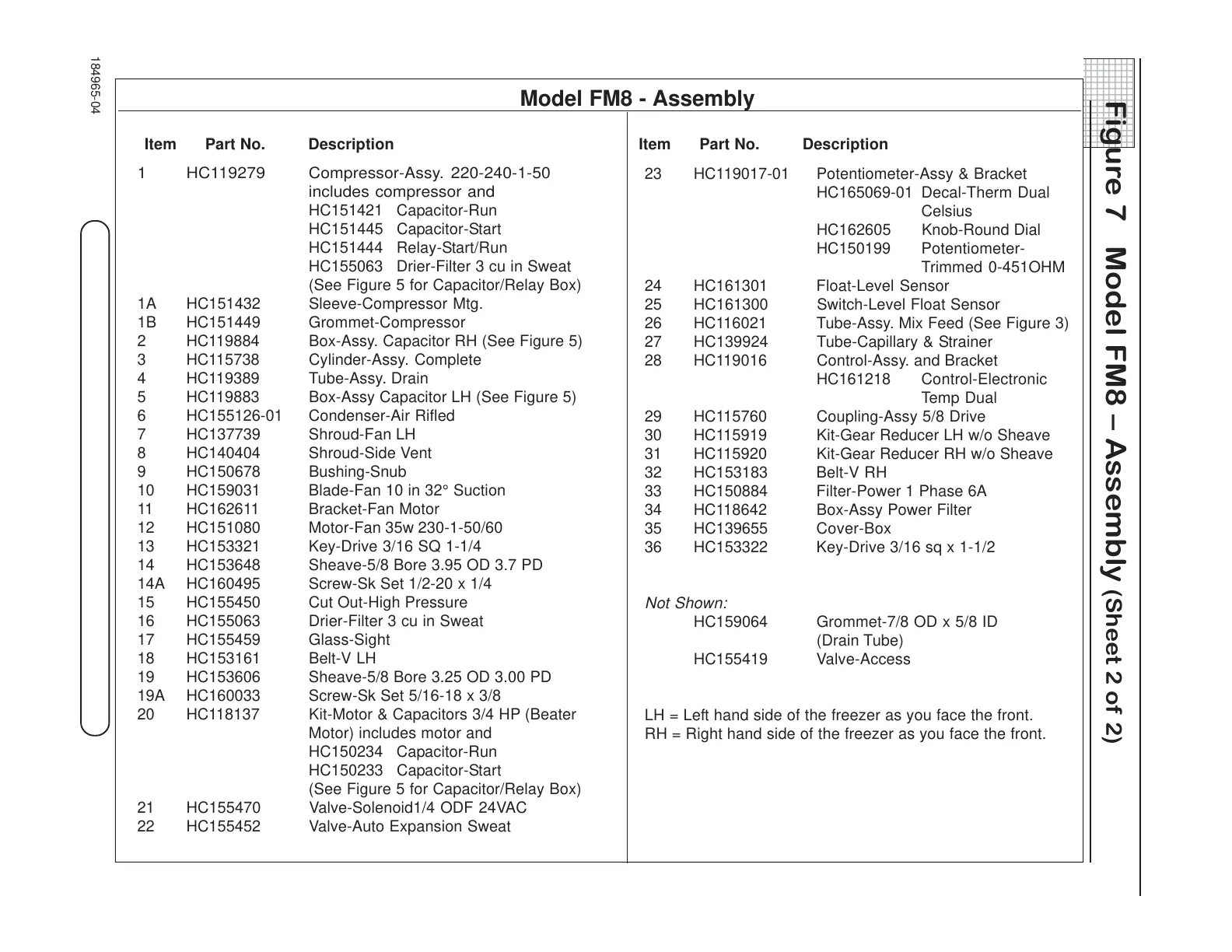

Figure 7 Model FM8 – Assembly (Sheet 2 of 2)

Item Part No. Description

23 HC119017-01 Potentiometer-Assy & Bracket

HC165069-01 Decal-Therm Dual

Celsius

HC162605 Knob-Round Dial

HC150199 Potentiometer-

Trimmed 0-451OHM

24 HC161301 Float-Level Sensor

25 HC161300 Switch-Level Float Sensor

26 HC116021 Tube-Assy. Mix Feed (See Figure 3)

27 HC139924 Tube-Capillary & Strainer

28 HC119016 Control-Assy. and Bracket

HC161218 Control-Electronic

Temp Dual

29 HC115760 Coupling-Assy 5/8 Drive

30 HC115919 Kit-Gear Reducer LH w/o Sheave

31 HC115920 Kit-Gear Reducer RH w/o Sheave

32 HC153183 Belt-V RH

33 HC150884 Filter-Power 1 Phase 6A

34 HC118642 Box-Assy Power Filter

35 HC139655 Cover-Box

36 HC153322 Key-Drive 3/16 sq x 1-1/2

Not Shown:

HC159064 Grommet-7/8 OD x 5/8 ID

(Drain Tube)

HC155419 Valve-Access

LH = Left hand side of the freezer as you face the front.

RH = Right hand side of the freezer as you face the front.

1 HC119279 Compressor-Assy. 220-240-1-50

includes compressor and

HC151421 Capacitor-Run

HC151445 Capacitor-Start

HC151444 Relay-Start/Run

HC155063 Drier-Filter 3 cu in Sweat

(See Figure 5 for Capacitor/Relay Box)

1A HC151432 Sleeve-Compressor Mtg.

1B HC151449 Grommet-Compressor

2 HC119884 Box-Assy. Capacitor RH (See Figure 5)

3 HC115738 Cylinder-Assy. Complete

4 HC119389 Tube-Assy. Drain

5 HC119883 Box-Assy Capacitor LH (See Figure 5)

6 HC155126-01 Condenser-Air Rifled

7 HC137739 Shroud-Fan LH

8 HC140404 Shroud-Side Vent

9 HC150678 Bushing-Snub

10 HC159031 Blade-Fan 10 in 32° Suction

11 HC162611 Bracket-Fan Motor

12 HC151080 Motor-Fan 35w 230-1-50/60

13 HC153321 Key-Drive 3/16 SQ 1-1/4

14 HC153648 Sheave-5/8 Bore 3.95 OD 3.7 PD

14A HC160495 Screw-Sk Set 1/2-20 x 1/4

15 HC155450 Cut Out-High Pressure

16 HC155063 Drier-Filter 3 cu in Sweat

17 HC155459 Glass-Sight

18 HC153161 Belt-V LH

19 HC153606 Sheave-5/8 Bore 3.25 OD 3.00 PD

19A HC160033 Screw-Sk Set 5/16-18 x 3/8

20 HC118137 Kit-Motor & Capacitors 3/4 HP (Beater

Motor) includes motor and

HC150234 Capacitor-Run

HC150233 Capacitor-Start

(See Figure 5 for Capacitor/Relay Box)

21 HC155470 Valve-Solenoid1/4 ODF 24VAC

22 HC155452 Valve-Auto Expansion Sweat

Item Part No. Description

Model FM8 - Assembly

Item Part No. Description

184965-04

ELECTRO FREEZE FM8 - Page 49
