ELECTRO FREEZE Model FM8

Use only original or authorized replacement parts with this freezer.

184979-04 8/05 23

PART PART SERIAL NUMBER

DESCRIPTION NUMBER QTY (FROM – TO)

Important: All parts shown are for standard models designed for 230V/1PH/

60HZ.

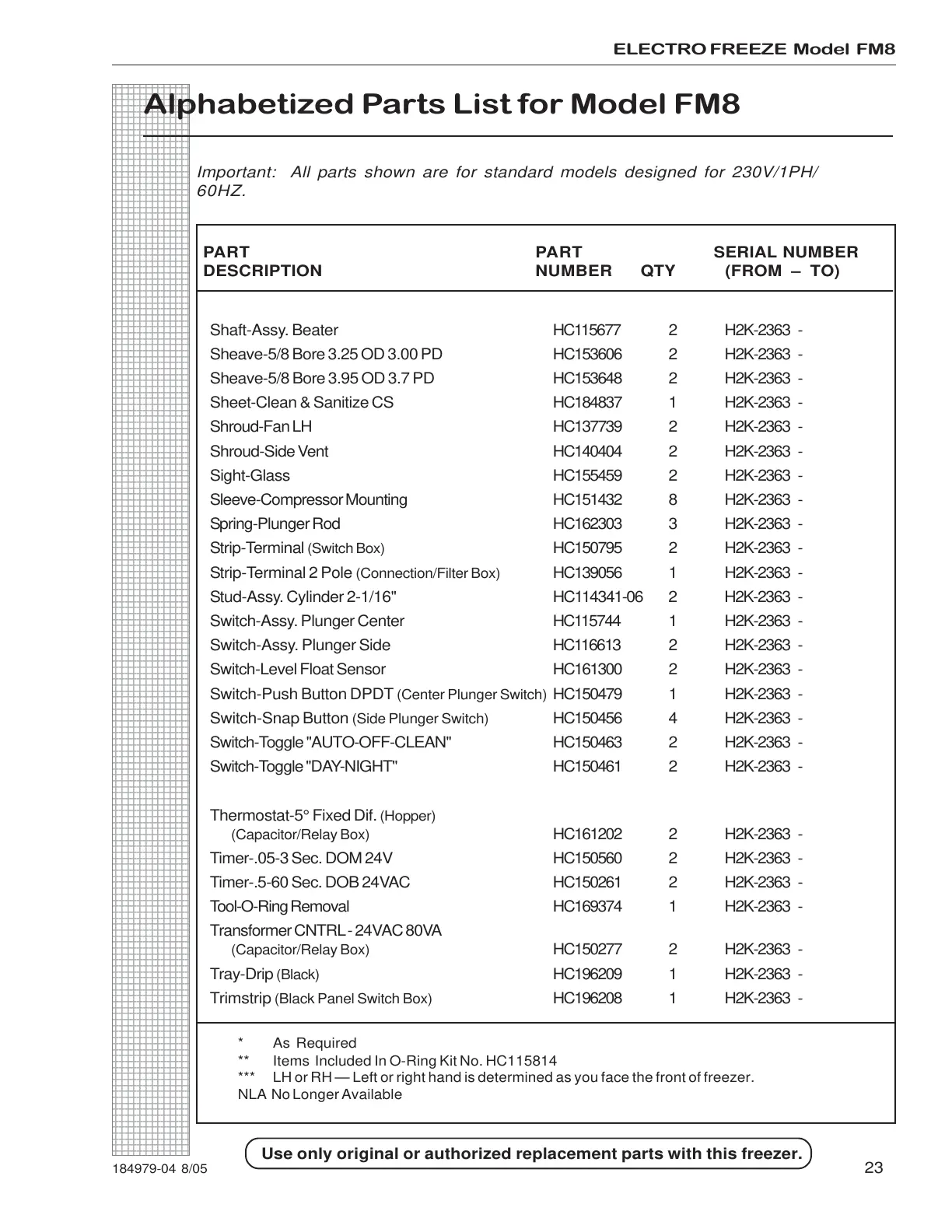

Alphabetized Parts List for Model FM8

* As Required

** Items Included In O-Ring Kit No. HC115814

*** LH or RH — Left or right hand is determined as you face the front of freezer.

NLA No Longer Available

Shaft-Assy. Beater HC115677 2 H2K-2363 -

Sheave-5/8 Bore 3.25 OD 3.00 PD HC153606 2 H2K-2363 -

Sheave-5/8 Bore 3.95 OD 3.7 PD HC153648 2 H2K-2363 -

Sheet-Clean & Sanitize CS HC184837 1 H2K-2363 -

Shroud-Fan LH HC137739 2 H2K-2363 -

Shroud-Side Vent HC140404 2 H2K-2363 -

Sight-Glass HC155459 2 H2K-2363 -

Sleeve-Compressor Mounting HC151432 8 H2K-2363 -

Spring-Plunger Rod HC162303 3 H2K-2363 -

Strip-Terminal

(Switch Box)

HC150795 2 H2K-2363 -

Strip-Terminal 2 Pole

(Connection/Filter Box)

HC139056 1 H2K-2363 -

Stud-Assy. Cylinder 2-1/16" HC114341-06 2 H2K-2363 -

Switch-Assy. Plunger Center HC115744 1 H2K-2363 -

Switch-Assy. Plunger Side HC116613 2 H2K-2363 -

Switch-Level Float Sensor HC161300 2 H2K-2363 -

Switch-Push Button DPDT

(Center Plunger Switch)

HC150479 1 H2K-2363 -

Switch-Snap Button

(Side Plunger Switch)

HC150456 4 H2K-2363 -

Switch-Toggle "AUTO-OFF-CLEAN" HC150463 2 H2K-2363 -

Switch-Toggle "DAY-NIGHT" HC150461 2 H2K-2363 -

Thermostat-5° Fixed Dif.

(Hopper)

(Capacitor/Relay Box)

HC161202 2 H2K-2363 -

Timer-.05-3 Sec. DOM 24V HC150560 2 H2K-2363 -

Timer-.5-60 Sec. DOB 24VAC HC150261 2 H2K-2363 -

Tool-O-Ring Removal HC169374 1 H2K-2363 -

Transformer CNTRL - 24VAC 80VA

(Capacitor/Relay Box)

HC150277 2 H2K-2363 -

Tray-Drip

(Black)

HC196209 1 H2K-2363 -

Trimstrip

(Black Panel Switch Box)

HC196208 1 H2K-2363 -
