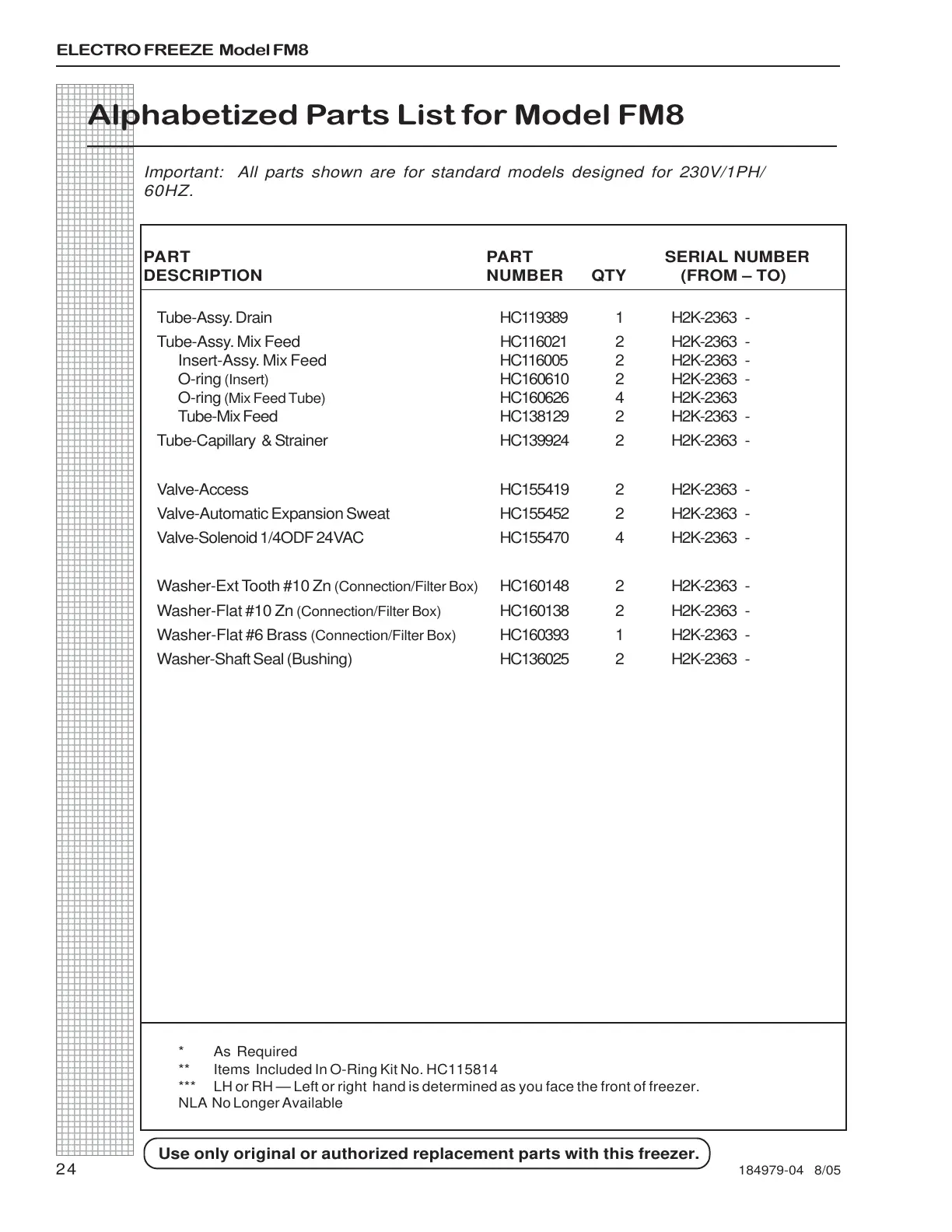

ELECTRO FREEZE Model FM8

Use only original or authorized replacement parts with this freezer.

24 184979-04 8/05

PART PART SERIAL NUMBER

DESCRIPTION NUMBER QTY (FROM – TO)

Important: All parts shown are for standard models designed for 230V/1PH/

60HZ.

Alphabetized Parts List for Model FM8

* As Required

** Items Included In O-Ring Kit No. HC115814

*** LH or RH — Left or right hand is determined as you face the front of freezer.

NLA No Longer Available

Tube-Assy. Drain HC119389 1 H2K-2363 -

Tube-Assy. Mix Feed HC116021 2 H2K-2363 -

Insert-Assy. Mix Feed HC116005 2 H2K-2363 -

O-ring

(Insert)

HC160610 2 H2K-2363 -

O-ring

(Mix Feed Tube)

HC160626 4 H2K-2363

Tube-Mix Feed HC138129 2 H2K-2363 -

Tube-Capillary & Strainer HC139924 2 H2K-2363 -

Valve-Access HC155419 2 H2K-2363 -

Valve-Automatic Expansion Sweat HC155452 2 H2K-2363 -

Valve-Solenoid 1/4ODF 24VAC HC155470 4 H2K-2363 -

Washer-Ext Tooth #10 Zn

(Connection/Filter Box)

HC160148 2 H2K-2363 -

Washer-Flat #10 Zn

(Connection/Filter Box)

HC160138 2 H2K-2363 -

Washer-Flat #6 Brass

(Connection/Filter Box)

HC160393 1 H2K-2363 -

Washer-Shaft Seal (Bushing) HC136025 2 H2K-2363 -
