2: Meter Overview and Specifications
Electro Industries/GaugeTech™
Powered by Innovation™
KYZ output contacts (and infrared
LED light pulses through faceplate) (See Section 6.4 for Kh values.)
Pulse Width: 40 ms
Full Scale Frequency: ~6 Hz
Contact type: Solid state – SPDT (NO – C – NC)
Relay type: Solid state
Peak switching voltage: DC ±350 V
Continuous load current: 120 mA
Peak load current: 350m A for 10 ms
On resistance, max.: 35 Ω
Leakage current: 1µ A@350 V
Isolation: AC 3750 V
Reset State: (NC - C) Closed; (NO - C) Open
Infrared LED:
Peak Spectral Wavelength: 940 nm
Reset State: Off

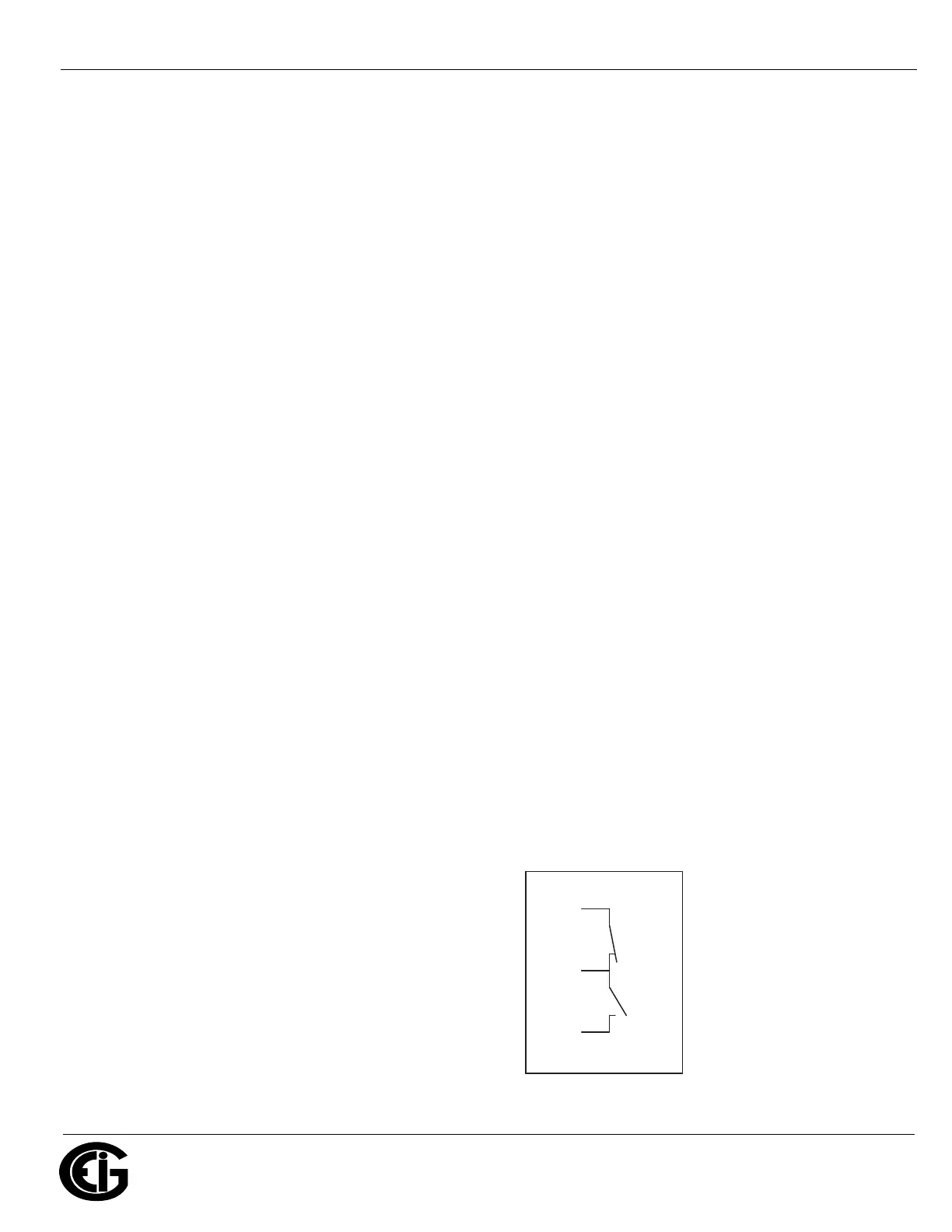

Internal Schematic:
N
O
C
N
C
