3: Mechanical Installation
Electro Industries/GaugeTech
3.2: ANSI Installation Steps
INSTALLATION STEPS:
1. Slide meter with Mounting Gasket
into panel.
2. Secure from back of panel with flat
washer, lock washer and nut on each
threaded rod. Use a small wrench to
tighten. Do not overtighten: the
maximum installation torque is
0.4 Newton-Meter.
Threaded Rods
NEMA 12 Mounting
Gasket

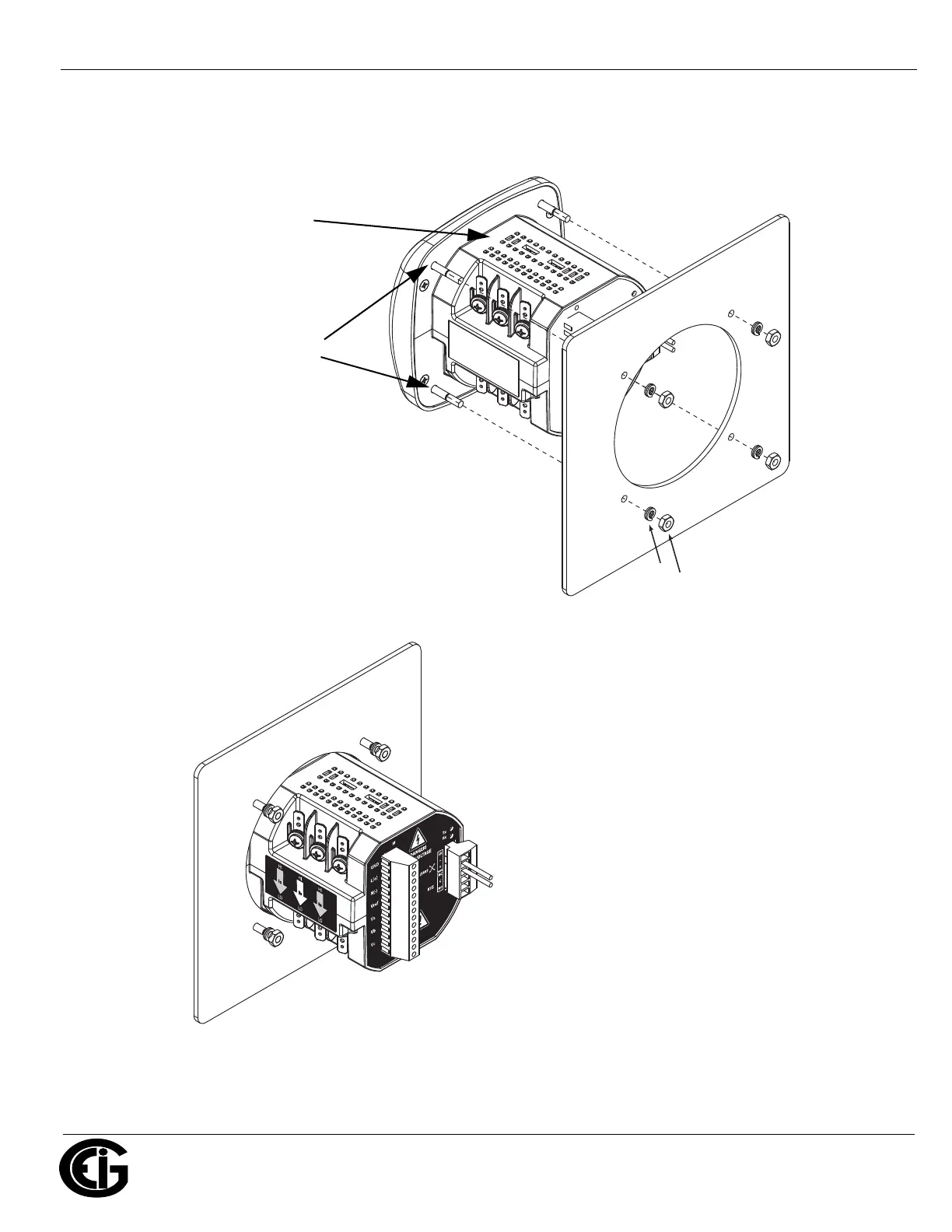

Figure 3.7: ANSI Installation
