REAR VIEW

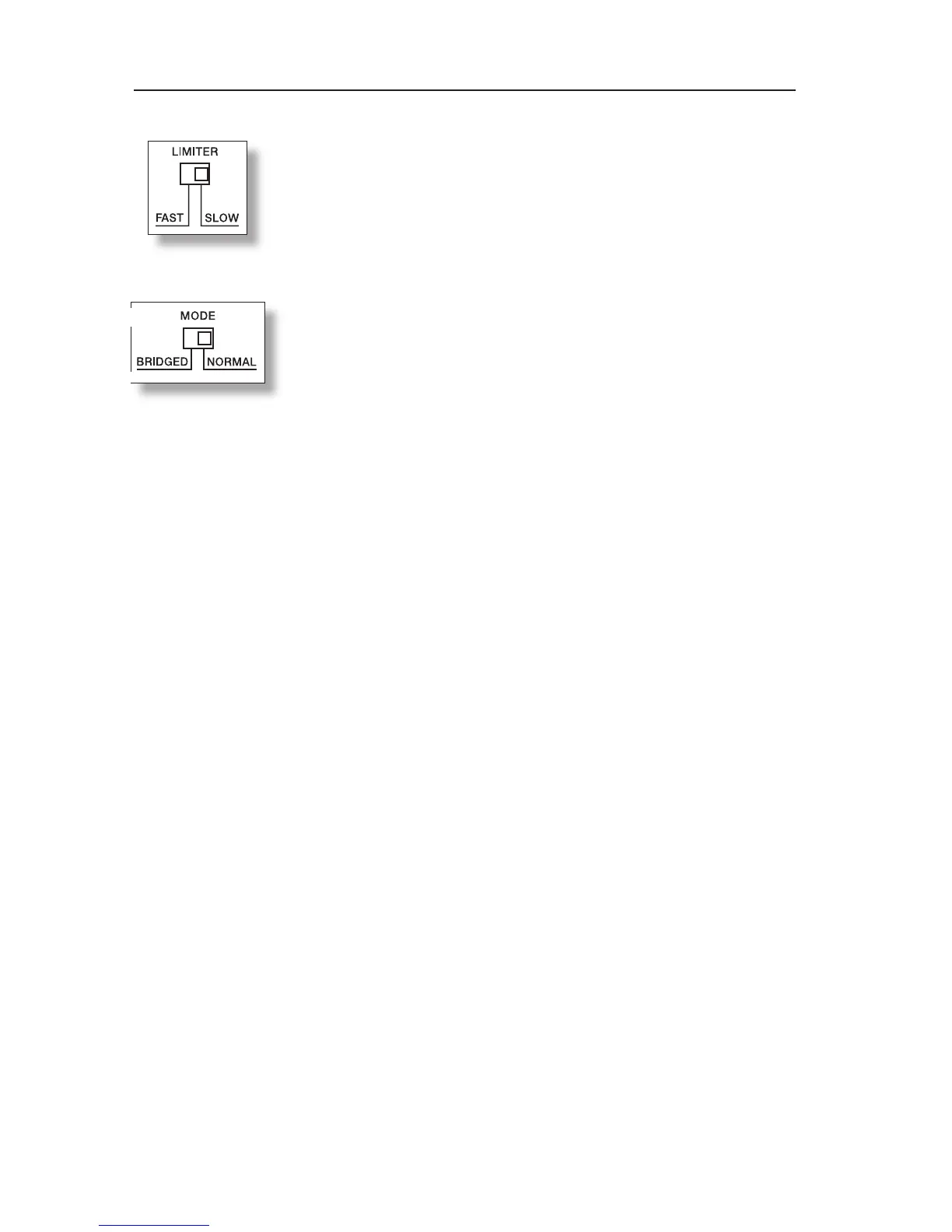

LIMITER
The integrated limiter provides reliable protection against signal clipping and
has a switchable time constant. Leaving the switch set to SLOW is
recommended for general use (factory pre-set status).
When using the power amplier as Mid/Hi power amp employed in active
multi-way systems, setting the limiter switch to FAST is recommended.
When using the power amplier as low-frequency woofer power amp
employed in active multi-way systems, setting the limiter switch to SLOW is
recommended.
BRIDGED MODE
Switch for changing from normal (stereo) operation to bridged mode. In
bridged mode the integrated power ampliers operate in „push-pull“
operation. The output voltages of cannel „A“ and channel „B“ are doubled
and present at the BRIDGED OUT connector. Channels „A“ and „B“ work
phase-shifted in push-pull operation and may not be used as loudspeaker
outputs.
