NETWORK EXAMPLES

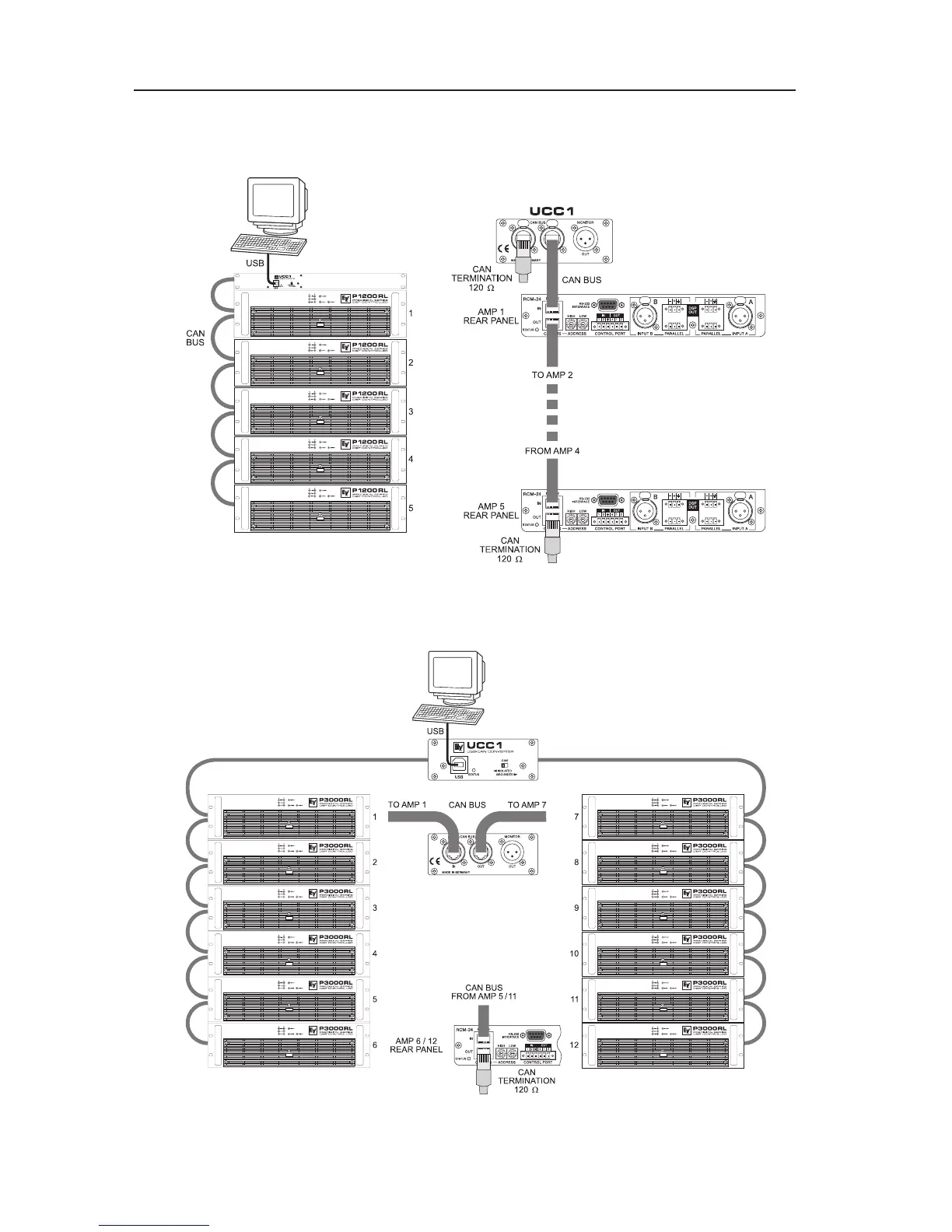

The following diagrams show examples of the data-bus wiring for different order of size:
System with 5 amps and one UCC1 / PC at the beginning of the bus
Terminators at the UCC1 (rst unit on the bus) and at amp 5 (last unit on the bus)
System with 2 amp-racks and an UCC1 / PC in the middle
Terminators at amp 6 (rst unit on the bus) and amp 12 (last unit on the bus)
