Electrolux 6 Series - Technical Characteristics; Construction Overview

Technical Support - A.D.L. 40/83 599 74 12-51 Rev.00
10 TECHNICAL CHARACTERISTICS

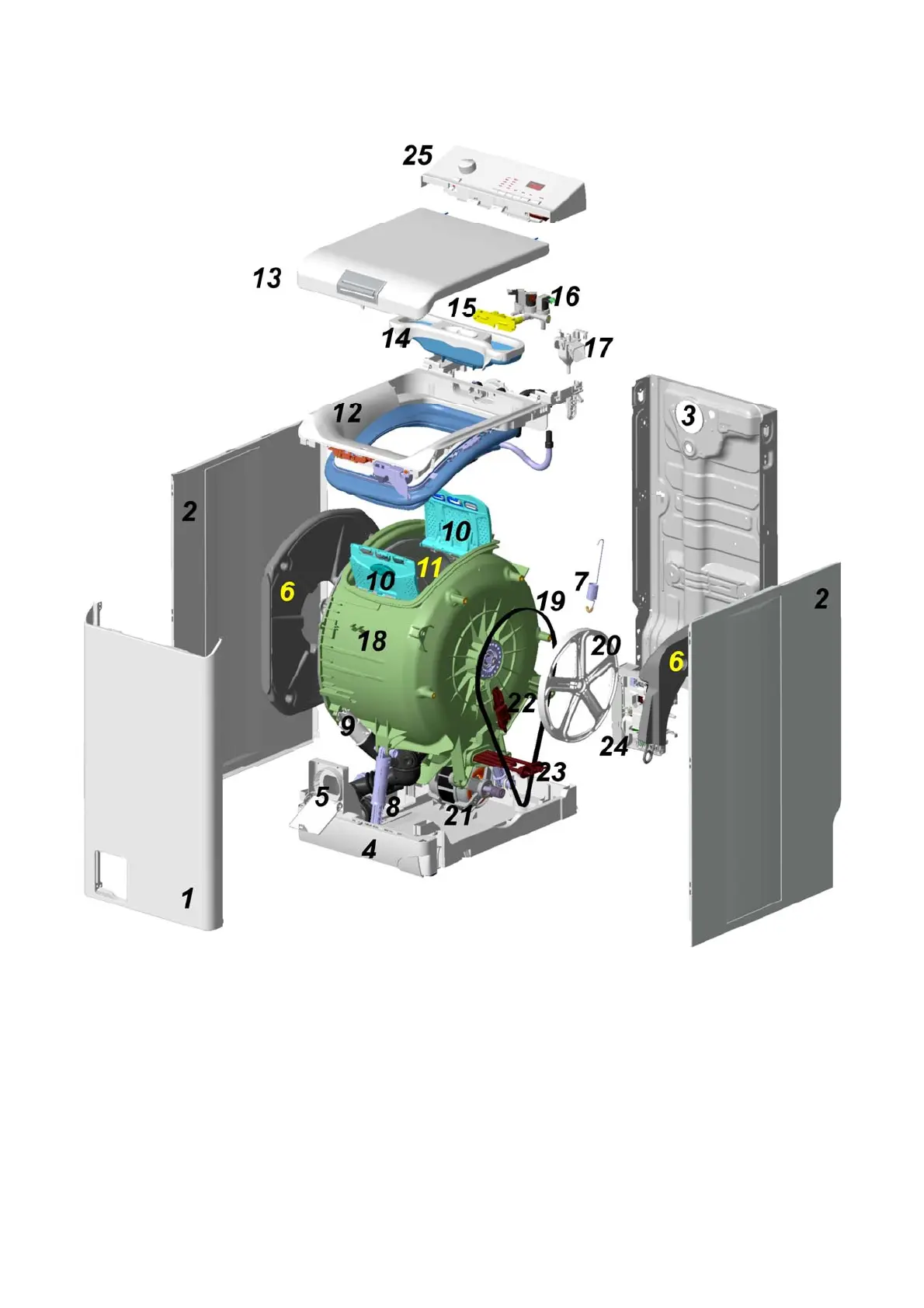

10.1 Construction
1. Frontal piece.
2. Sides.
3. Back panel.
4. Base.
5. Filter.
6. Right and Left counterweights.
7. Washing unit suspension springs.
8. Drain pump.
9. Pressure chamber.
10. Lids.
11. Drum.
12. Inlet.
13. Upper cover.
14. Detergent dispenser.
15. Water dispenser.
16. Solenoid valves.
17. Air Break.
18. Washing unit.
19. Transmission belt.
20. Pulley.
21. Drum rotation motor.
22. DSP.
23. Heating element.
24. Main electronic circuit board.
25. Control panel.
