10.2 Detergent dispenser

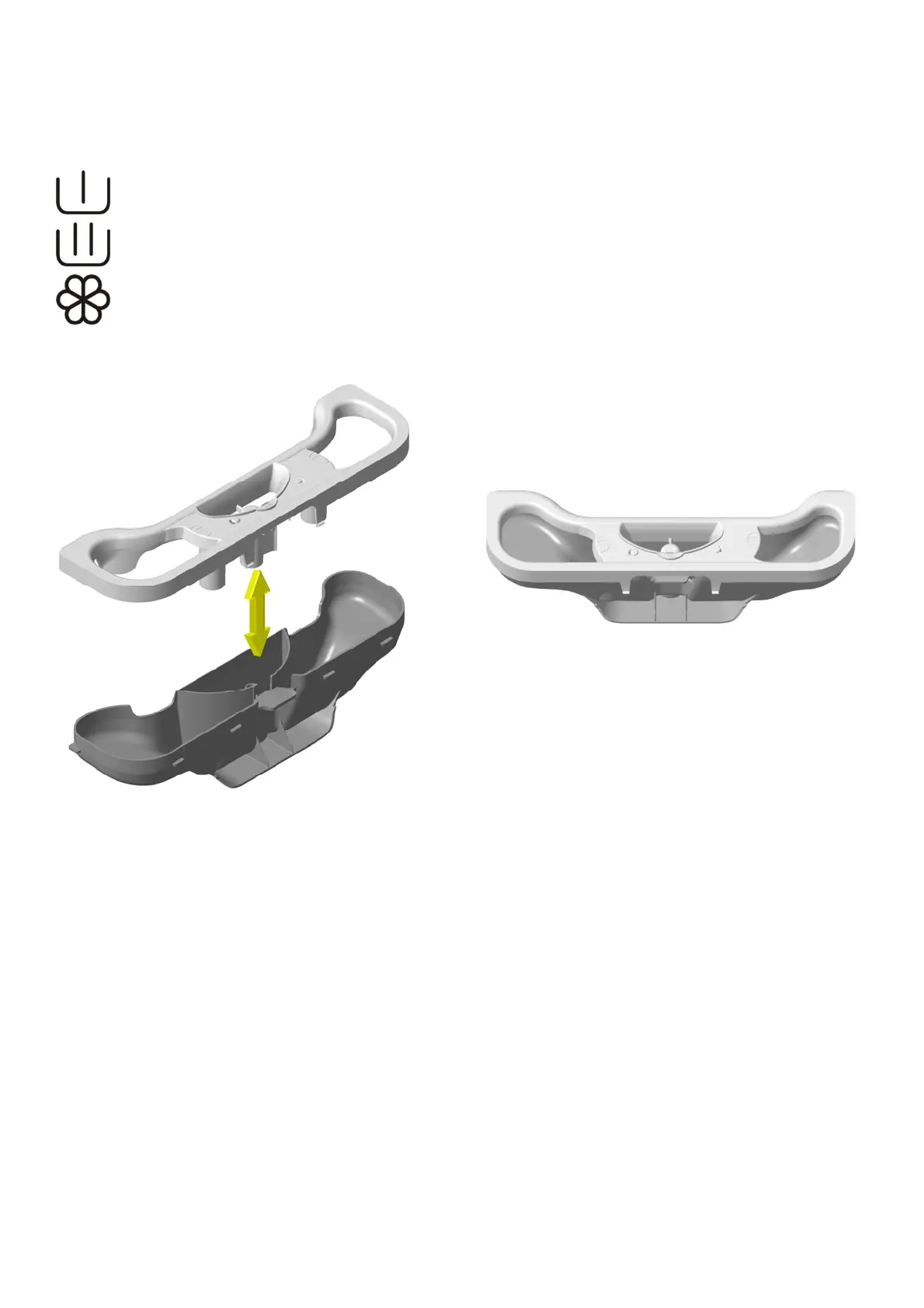

10.2.1 Detergent dispenser
Before entering the tub, the cold water passes through the detergent dispenser picking up the detergent inside it.
This dispenser is split into 3 compartments marked with the symbols:
Wash (dispenser 1)
Pre-wash (dispenser 3)
Fabric conditioner (dispenser 2)
1. Detergent dispenser.
2. Fabric softener dispenser.
3. Pre-wash detergent dispenser.
1 3
2
1
2
3
