Electrolux 6 Series - Water Circuit

Technical Support - A.D.L. 44/83 599 74 12-51 Rev.00
10.4 Water circuit

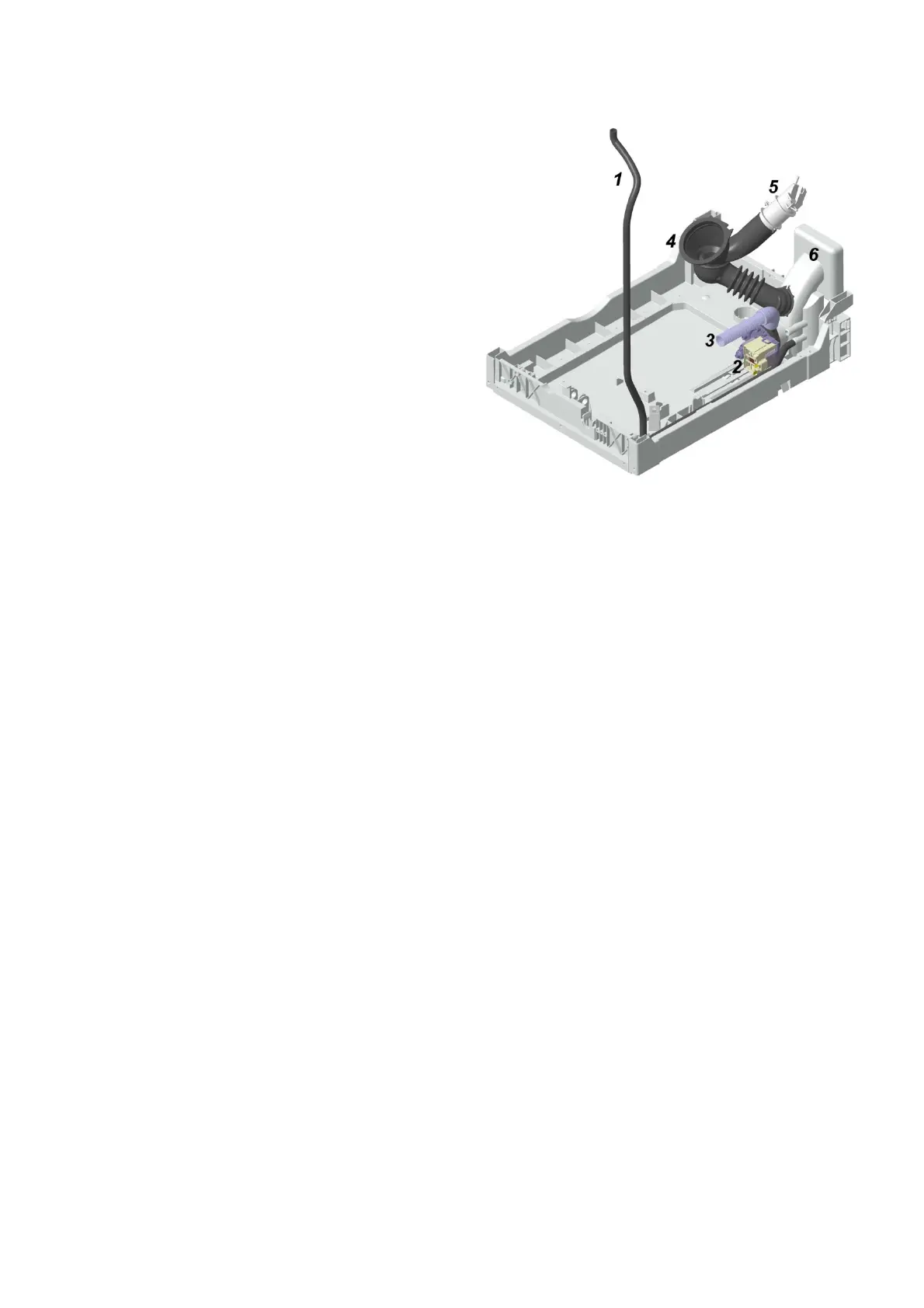

10.4.1 OKO version drain circuit
1. Pre-filing pipe.
2. Drain pump.
3. Drain pipe.
4. Filter unit tub pipe containing the sphere.
5. Pressure chamber.
6. Filter unit amassed in the base frame.
