13 ACCESS

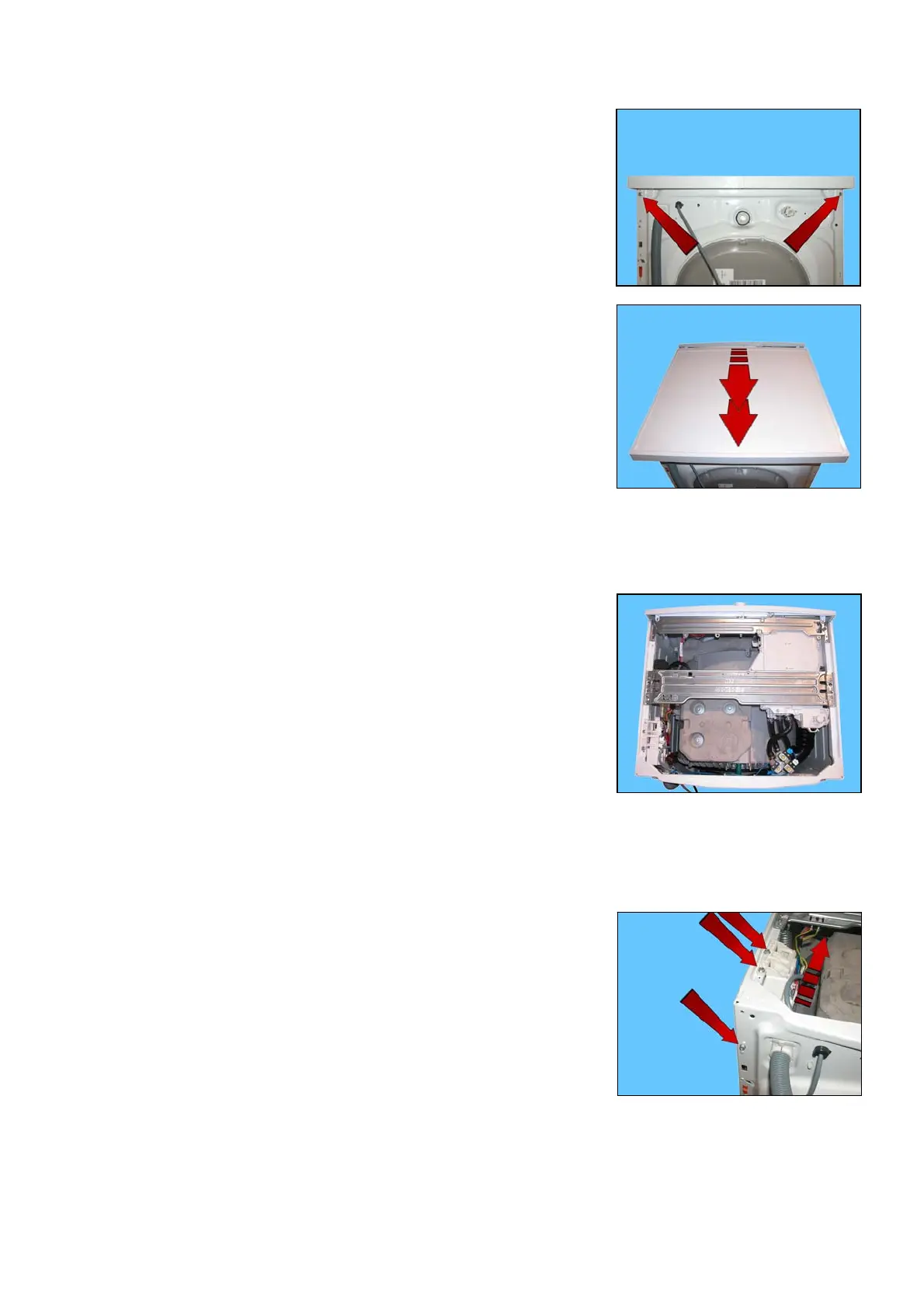

13.1 Worktop
Remove the screws that secure it to the back panel.
Remove it from the rear
13.2 From the worktop, you can access:
1. Main board
2. Solenoid valves
3. Control panel
4. Display board/light diffuser/buttons/buttons springs assembly
5. Electronic pressure switch
6. Detergent dispenser
7. Detergent loading pipe
8. Upper counterweight
13.2.1 Main board
Remove the worktop (see relevant paragraph).
Unfasten the three screws securing it to the cabinet
Move it in the direction shown by the arrow.
1
2
3
4
5
6
7
8
