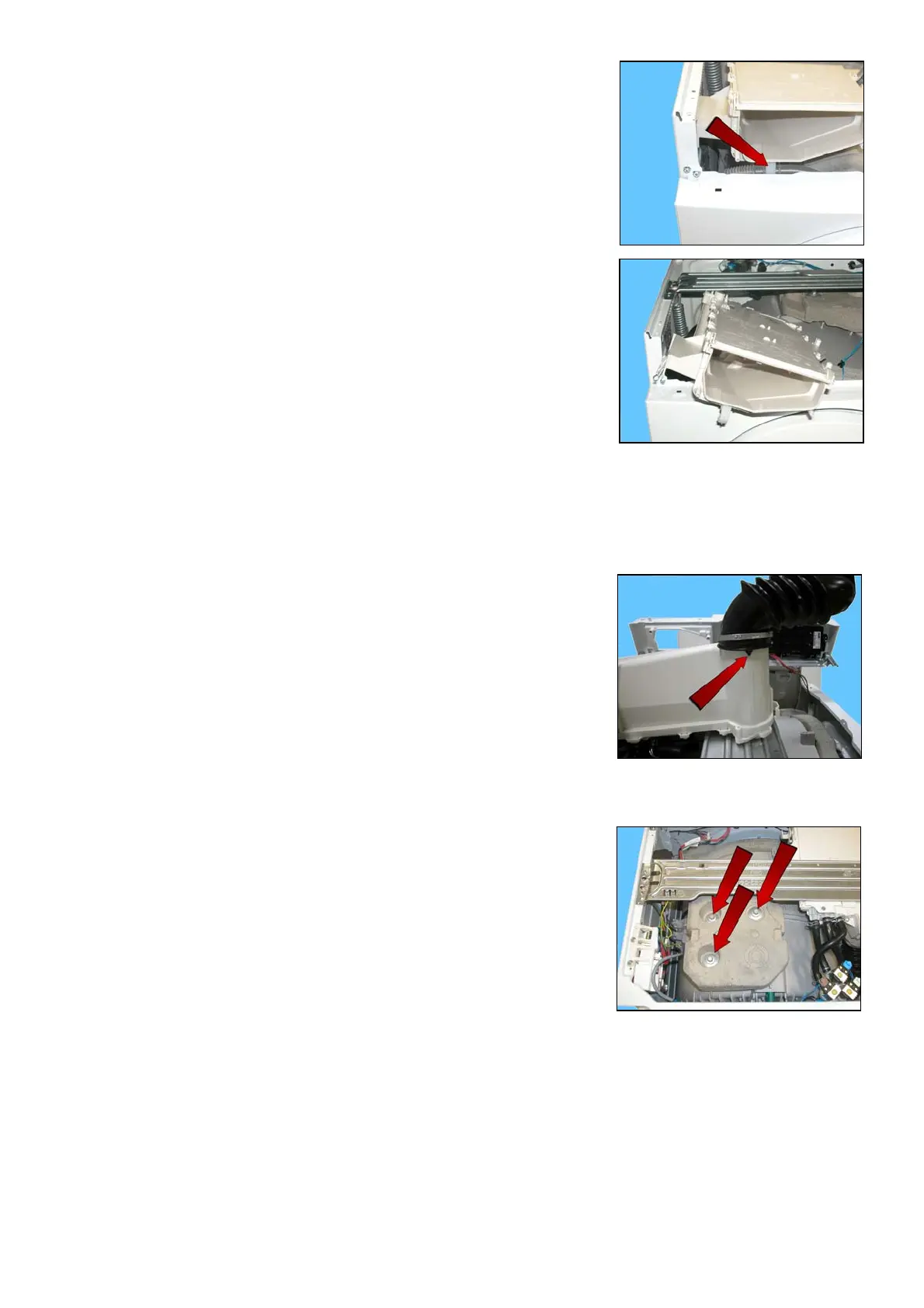

If the appliance is a Jet System, pull out the pipe from the detergent
dispenser hook
Remove the detergent dispenser.
13.2.7 Detergent loading pipe
Remove the worktop (see relevant paragraph).
Remove the control panel (see relevant paragraph).
Remove the detergent dispenser (see relevant paragraph).
Pull out the pipe from the detergent dispenser after breaking/loosening the
clamp between the detergent dispenser and the detergent loading pipe.
When reassembling, use a new clamp with the same characteristics.
The size of the clamp to use is 65.5mm.
When introducing the pipe into the dispenser, make sure the two references are
aligned.
13.2.8 Upper counterweight
Remove the worktop (see relevant paragraph).
Remove the three screws that secure it to the welded tub
When reassembling:
If the tub assembly is new, tighten the screws at a torque of 20 Nm.
If the tub assembly is old, tighten the screws at a torque of 15 Nm.
