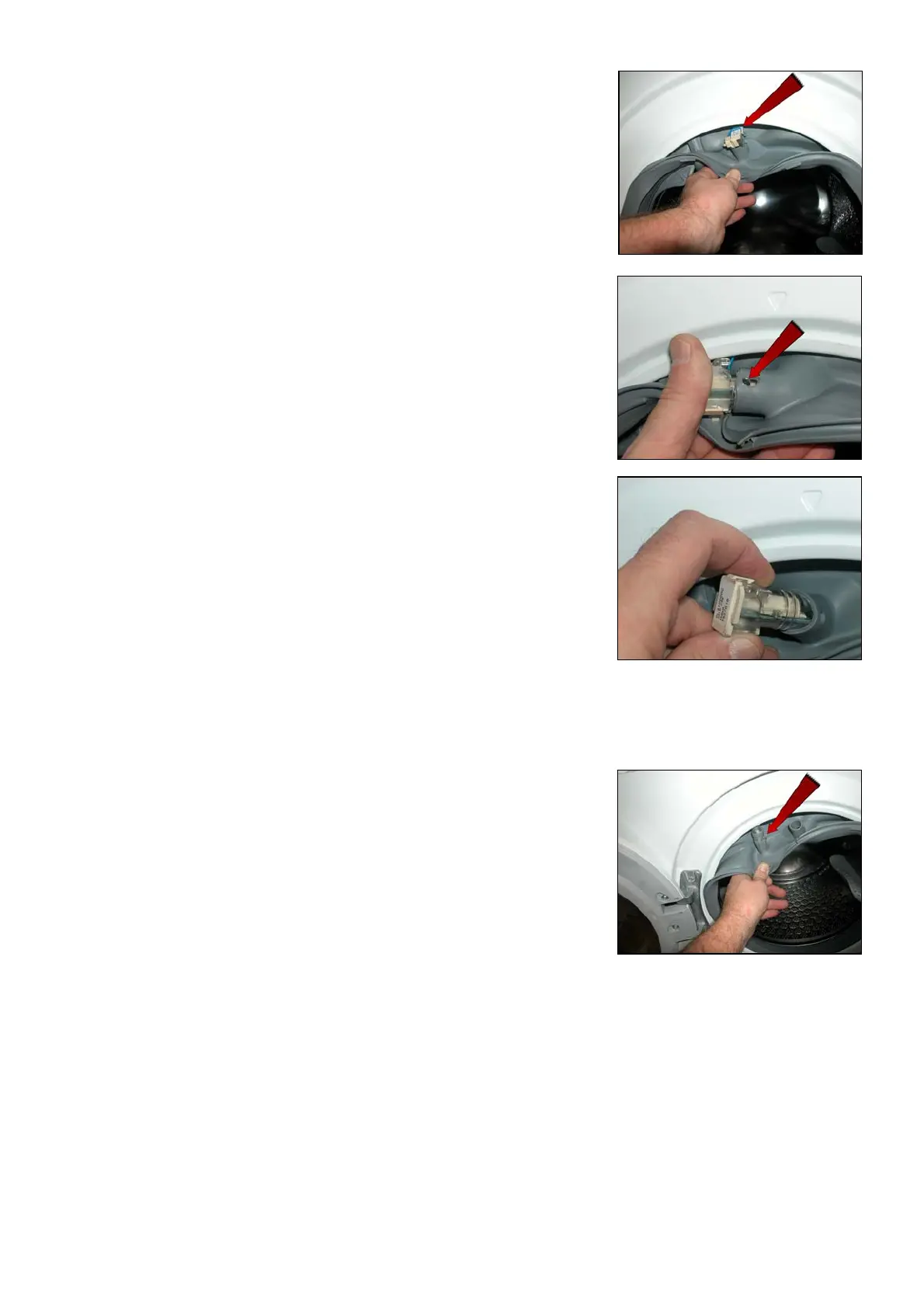

13.3.3 Drum light
Remove the iron ring securing the bellow seal to the cabinet.
Remove the part of the bellow seal concerned from the cabinet.
Remove the wiring from the lamp holder.
Take out the hook securing it to the bellow seal.
Take the lamp out of its seat.
13.3.4 Bellow seal
Remove the iron ring securing the bellow seal to the cabinet.
Release the bellows seal from the front panel.
Take the drum light out of its seat (see related paragraph).
Take the circulation pipe out of its seat in the bellow seal after breaking the clamp
(when reassembling, use a new clamp with the same characteristics and size 20.5).
Take the seal out of the welded tub.
(take care as the seal is held in position by a snap ring)
When reassembling the seal
Lubricate with liquid soap the part where the tub is inserted.
Make sure the references are aligned.
Reassemble the snap ring between the door bellow seal and the tub.
Where featured, reposition the Jet pipe and the lamp in their seats.
Reassemble the iron ring between the door bellow seal and the cabinet.
