Refrigeration Trim Kits
Louvered Trim Kit

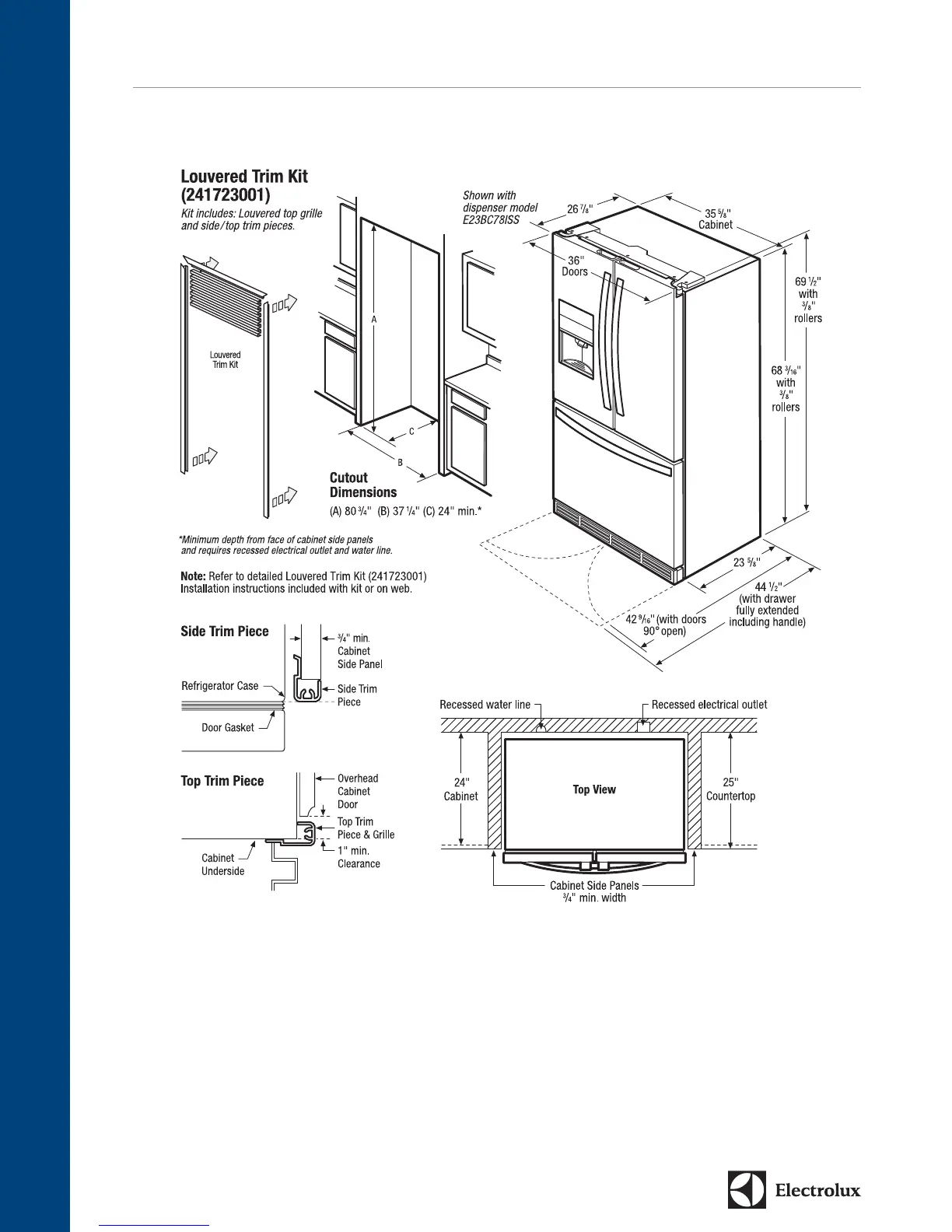

Planning Information (241723001)
For new-build installation when installed with Counter-Depth French Door Refrigerator
models E23BC78IPS, E23BC78ISS, E23BC68FPS and E23BC68FSS
Installation Specifications
New-Build Installation –
UÊ
Louvered Trim Kit (PN # 241723001) is designed
for built-in installation with Counter-Depth French Door Refrigerator models
E23BC78IPS, E23BC78ISS, E23BC68JPS and E23BC68JSS.
To use Louvered Trim Kit (PN # 241723001), an enclosure is required around
UÊ
Counter-Depth French Door Refrigerator having an opening of 80-3/4" H x
37-1/4" W with minimum cabinet side panels of 24" D x 3/4" W.
Minimum 24" depth requires recessed electrical outlet and water line.
UÊ
Cabinet or soffit above unit must extend out to same depth as side panels.
UÊ
Minimum 7' x 7' clear floor space required for Trim Kit assembly.
UÊ
For detailed Trim Kit installation, refer to instructions packed with kit or on web.
UÊ
For detailed Counter-Depth French Door Refrigerator installation, refer to
UÊ
model-specific product page and installation guide on web.
Note: For planning purposes only. Refer to product information
on the web at electroluxicon.com for detailed installation instructions.
Specifications subject to change.
