Planning Information Built-In Trim Kit Compatibility / All-Freezer & All-Refrigerator Trim Kits

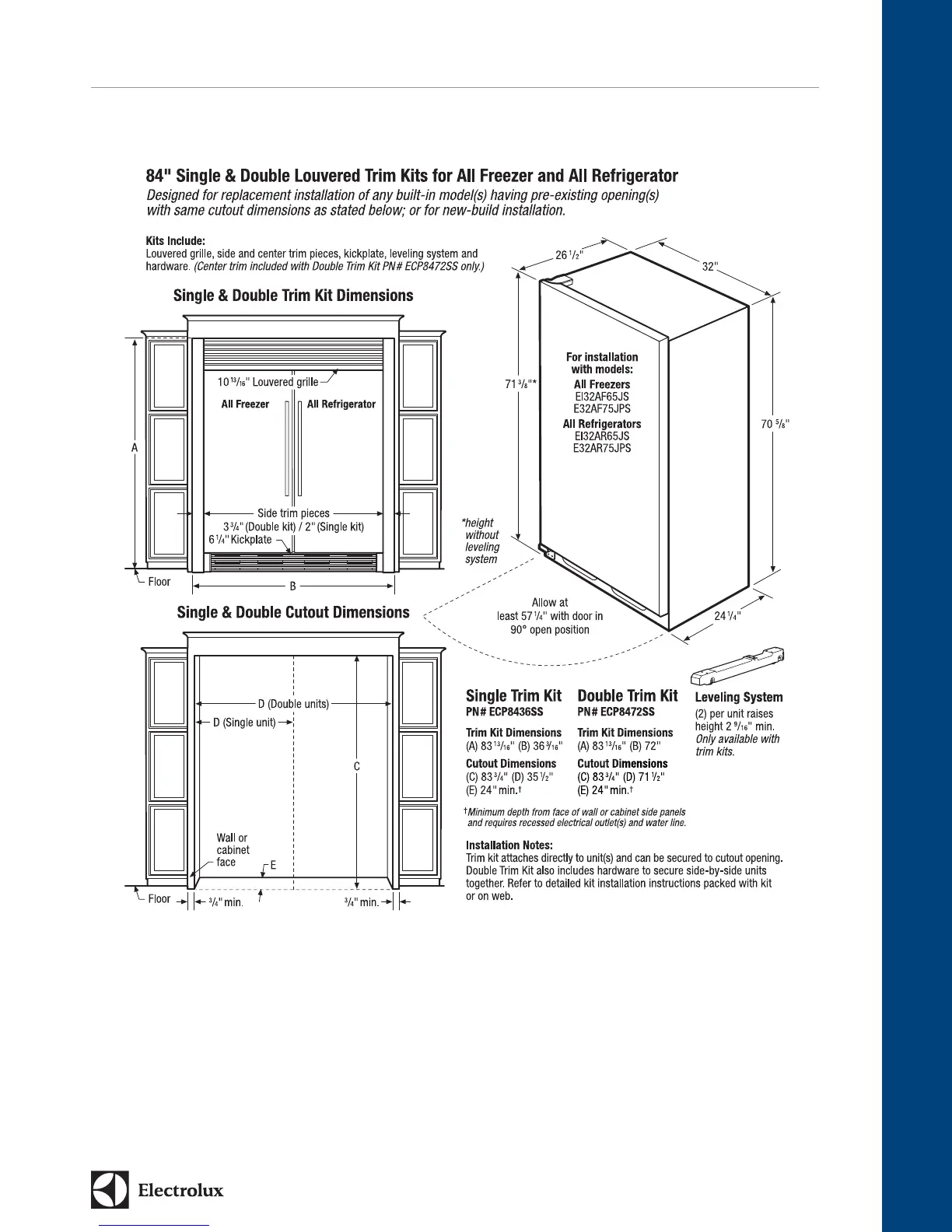

Louvered Trim Kits
Planning Information (ECP8436SS & ECP8472SS)
For replacement installation of Sub-Zero
®
brand 650 Series models or for new-build installation – when installed
with All-Freezer models EI32AF65FS, E32AF75FPS and All-Refrigerator models EI32AR65FS, E32AR75FPS
Installation Specifications
New-Build Installation –
UÊ
Louvered Trim Kits (PN # ECP8436SS &
PN # ECP8472SS) are designed for built-in installation with All-Freezer
models EI32AF65JS, E32AF75JPS and All-Refrigerator models
EI32AR65JS, E32AR75JPS.
Replacement Installation –
UÊ
Louvered Trim Kits (PN # ECP8436SS
& PN # ECP8472SS) are designed as built-in replacement option for
Sub-Zero
®
brand 650 Series models when installed with All-Freezer models
EI32AF65JS, E32AF75JPS and All-Refrigerator models EI32AR65JS,
E32AR75JPS into pre-existing cutout opening(s).
To use Single Louvered Trim Kit (PN # ECP8436SS), an enclosure is
UÊ
required around All Freezer or All Refrigerator having an opening of 83-3/4" H
x 35-1/2" W with minimum cabinet side panels of 24" D x 3/4" W.
To use Double Louvered Trim Kit (PN # ECP8472SS), an enclosure
UÊ
is required around All Freezer and All Refrigerator having an opening of
83-3/4" H x 71-1/2" W with minimum cabinet side panels of 24" D x 3/4" W.
(Double Trim Kit includes hardware to secure side-by-side units together.)
Trim Kit attaches directly to unit(s) and can be secured to cutout opening.
UÊ
Minimum 24" depth requires recessed electrical outlet(s) and water line.
UÊ
Cabinet or soffit above unit must extend out to same depth as side panels.
UÊ
Clear, adequate floor space required for Trim Kit assembly.
UÊ
For detailed Trim Kit installation, refer to instructions packed with kit or on web.
UÊ
For detailed All Freezer and/or All Refrigerator installation, refer to
UÊ
model-specific product page and installation guide on web.
Note: For planning purposes only. Refer to product information on
the web at electroluxappliances.com or electroluxicon.com for detailed
installation instructions. Specifications subject to change.
Sub-Zero
®
is a registered trademark of Sub-Zero, Inc.
