Electrolux Built-InTrim Kits Guide - Louvered Trim Kit for Counter-Depth Side-by-Side; Louvered Trim Kit (4480) Details and Dimensions; Louvered Trim Kit Installation Specifications

14
Refrigeration Trim Kits
Installation Specifications
New-Build Installation –
UÊ
Louvered Trim Kit (PN # 4480) is designed for
built-in installation with Counter-Depth Side-by-Side Refrigerator models
E23CS78HPS and E23CS78HSS.
To use Louvered Trim Kit (PN # 4480), an enclosure is required around
UÊ
Counter-Depth Side-by-Side Refrigerator having an opening of 80-3/4" H x
37-1/4" W with minimum cabinet side panels of 24" D x 3/4" W.
Minimum 24" depth requires recessed electrical outlet and water line.
UÊ
Cabinet or soffit above unit must extend out to same depth as side panels.
UÊ
Minimum 7' x 7' clear floor space required for Trim Kit assembly.
UÊ
For detailed Trim Kit installation, refer to instructions packed with kit or on web.
UÊ
For detailed Counter-Depth Side-by-Side Refrigerator installation, refer to
UÊ
model-specific product page and installation guide on web.
Louvered Trim Kit (PN # 4480) can also be used with Counter-Depth Side-by-
UÊ
Side Refrigerator models E23CS75DSS, E23CS78EPS, E23CS78ESS,
E23CS78GPS and E23CS78GSS.
Note: For planning purposes only. Refer to product information
on the web at electroluxicon.com for detailed installation instructions.
Specifications subject to change.

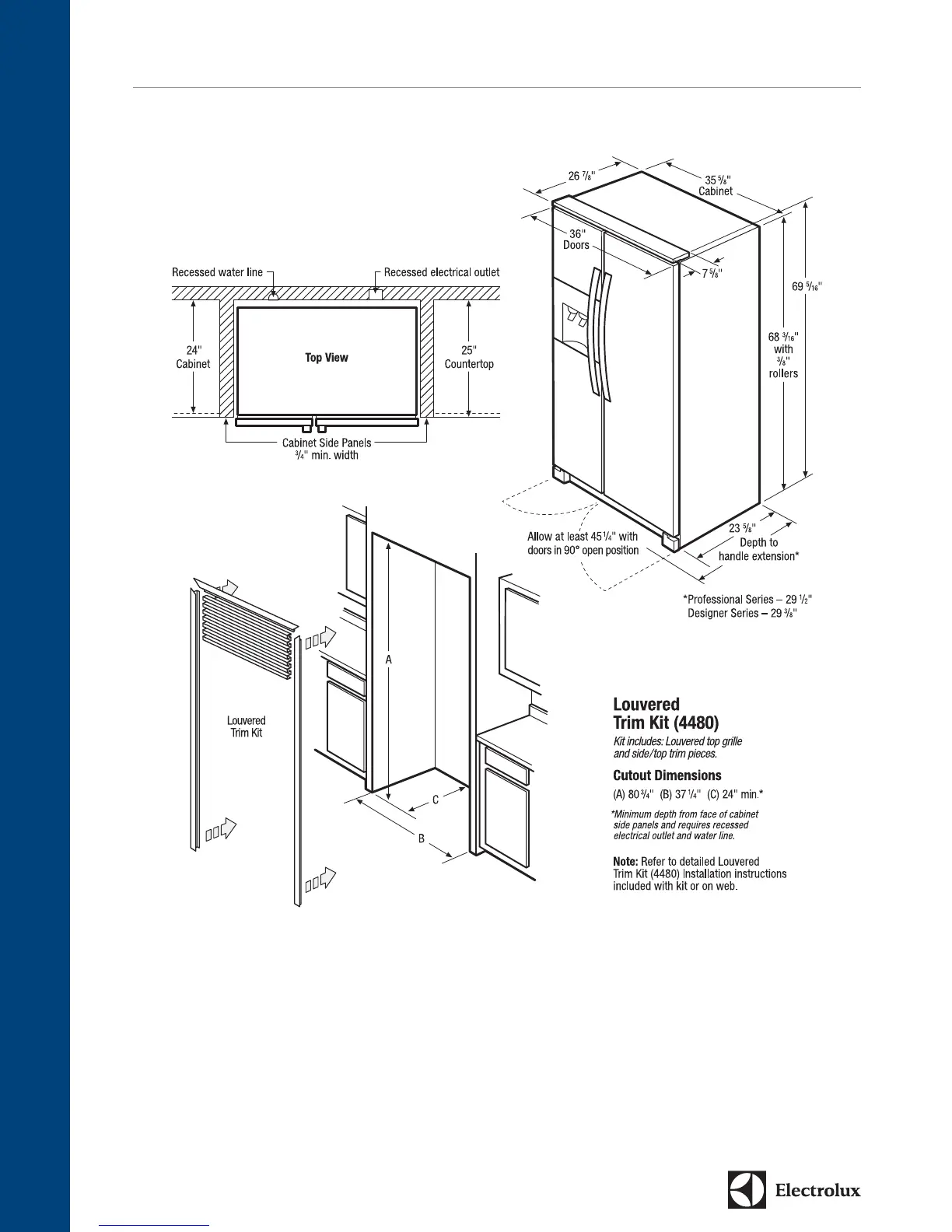

Louvered Trim Kit
Planning Information (4480)
For new-build installation when installed with Counter-Depth Side-by-Side Refrigerator
models E23CS78HPS and E23CS78HSS
