Electrolux e:line EOEM61CS - Detailed Control Panel Layouts

electrolux e:line ovens control panel 5

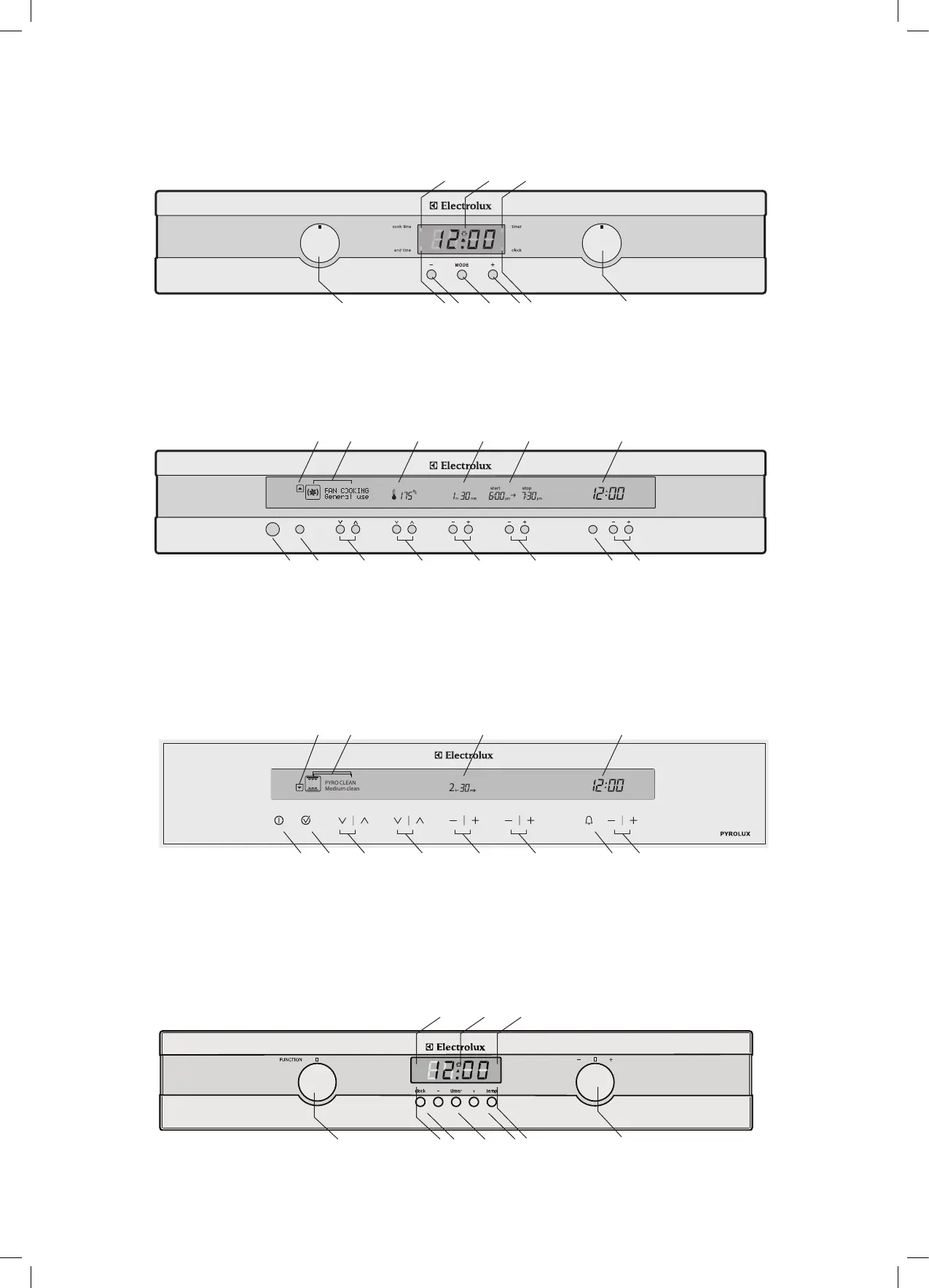

Rotary control panel (EOEM61CS)
Rotary control panel (EPEM61CS)
Electronic control panel (EOEE62CS, EOEE63CS, EPEE63CS, EUEE63CS, EDEE63CS)
Electronic touch control panel (EOEE62CK, EPEE63CK, EUEE63CK)
11 ON/OFF button
12 Upper/lower oven selector
(EUEE63CS & EDEE63CS)
Pyro accept button
(EPEE63CS only)
13 Cooking function selectors
14 Temperature selectors
15 Cook time selectors
16 Start/stop time selectors
17 Timer button
18 Set clock buttons
19 Upper or lower oven display
20 Cooking function display
21 Temperature display
22 Cook time display
23 Start/stop time display
24 Clock
25 ON/OFF button
26 Upper/lower oven selector
(EUEE63CK only)
Pyro accept button
(EPEE63CK only)
27 Cooking function selectors
28 Temperature selectors
29 Cook/Pyroclean time selector
30 Start/stop time selectors
31 Timer button
32 Set clock buttons
33 Pyro accept indicator
(EPEE63CK only)
34 Cooking function display
35 Cook time display
36 Clock
1 27 4 3 5 9
6 10 8
1 27 4 3 5 9
6 10 8
1 Oven function selector
2 Oven/grill temperature selector
3 Mode selector
4 Decrease time
5 Increase time
6 Cook time indicator
7 End time indicator
8 Timer indicator
9 Clock indicator
10 Display
1 Oven function selector
2 Oven/grill temperature selector
3 Mode selector
4 Decrease time
5 Increase time
6 Cook time indicator
7 End time indicator
8 Timer indicator
9 Clock indicator
10 Display
19 20 21 22 23 24
11 12 13 14 15 16 17 18
PYRO CLEAN
Medium clean
pyro accept
2
E
33 34 35 36
25 26 27 28 29 30 31 32
PROLUXE
