Trim And Riser Kit Installation
Instructions
The Dual Trim and Riser Kit consists of the following:
• Riser Kit - 2 packages
• Hardware Kit - 1 bag
• Trim Kit - 1 package
• Installation Instructions
The Single Trim and Riser Kit consists of the following:
• Riser Kit - 2 packages
• Hardware Kit - 1 bag
• Trim Kit - 1 package
• Installation Instructions
Before starting installation, have the following tools on
hand:
• Phillips
TM
Screwdriver
• Shims - Wooden or Plastic
• Tape Measure (min. 7” length)
• Safety Glasses
• Tape (Duct or Masking)
• Carpenter’s Level
• Drill & 1/8” Bit
• 1/2” Socket Wrench
The following items should be with the collar kit option:

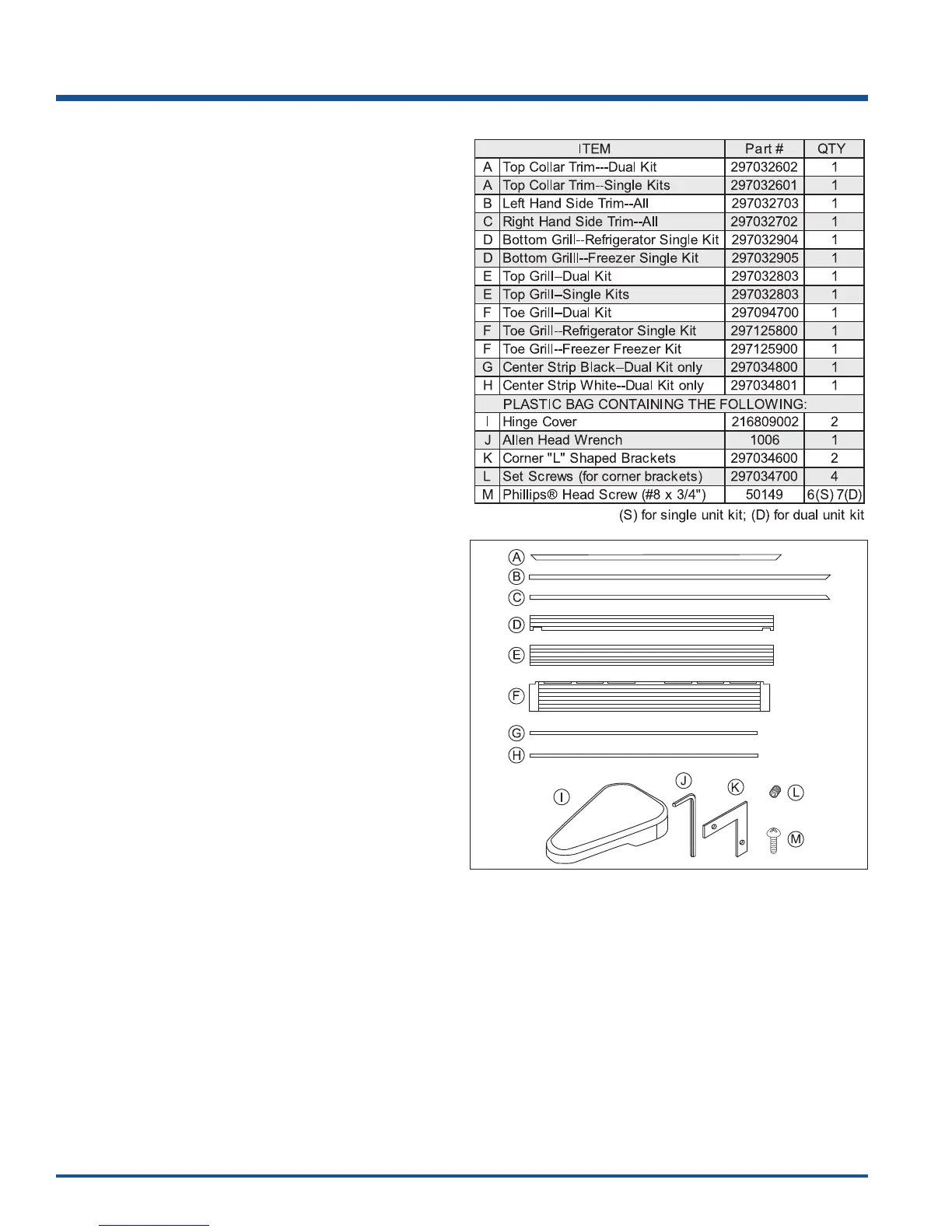

Figure 2-9. Trim Kit Components
Before You Begin
• Be careful when unpacking components. Do not use
sharp objects when removing packaging material.
This may scratch the surface of trim components.
• Make sure there is a large, clear area of floor
(approx. 10’ by 8’) to assemble the trim kit. Place a
drop cloth over the floor to prevent scratching of the
trim kit and/or floor.
• Use extreme care when handling the metal trim
pieces. Corners are very sharp and easily damaged
if dropped.
