7-1
Parts List

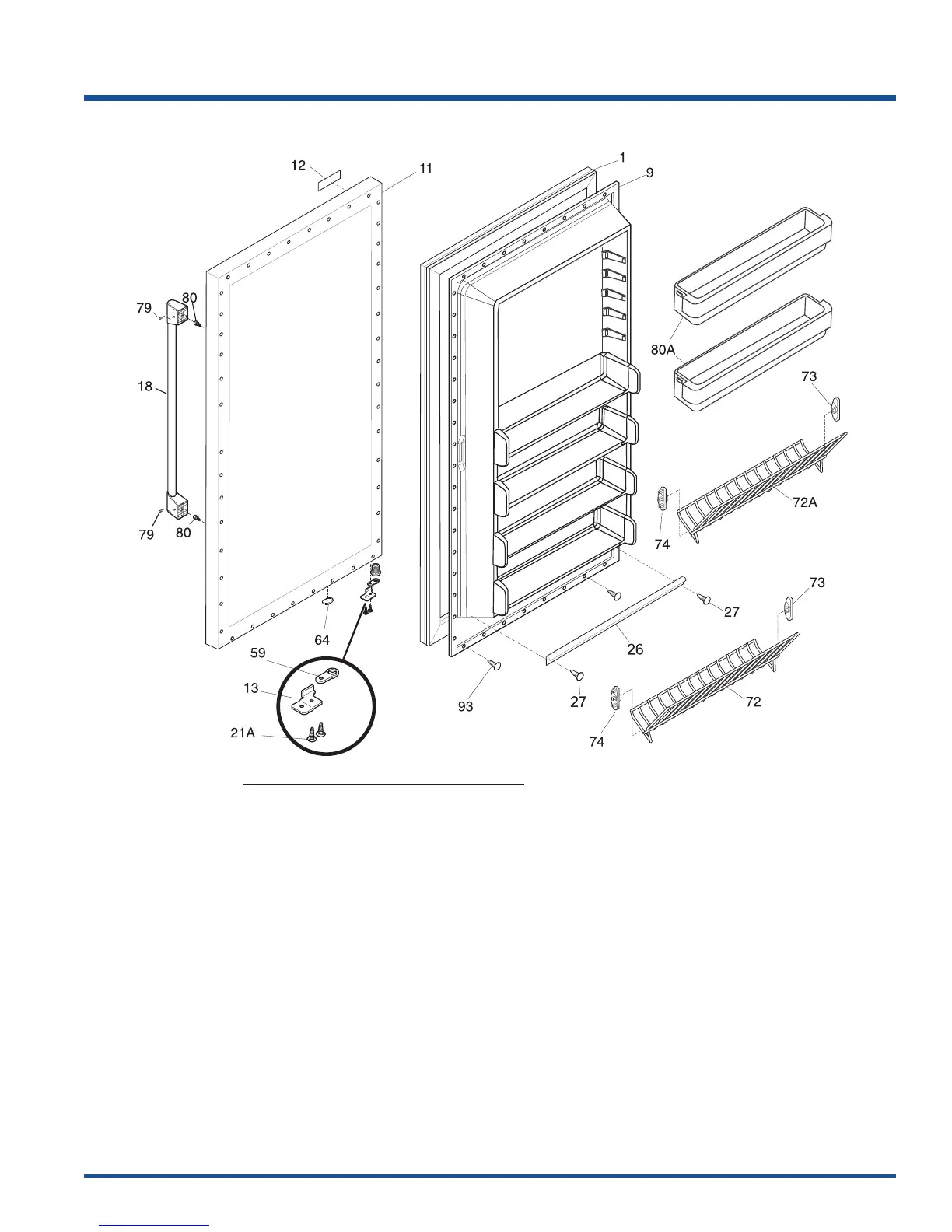

All Freezer Pro Door Exploded View Model E32AF75FPS
Ref # Part # Description
1 216522309 Gasket-door, white
9 216527902 Panel-inner door, frzr
11 297316549 Panel-outer door, stainless, LH
12 241603101 Label, nameplate, elux/icon
13 216974400 Door Stop
18 241637912 Handle Assembly, stainless, w/endcaps
18* 241601001 Wrench, allen
21A 5304460608 Screw, flat head, #1/4-20, door stop/hng
26 216524201 Gasket, secondary
27 5304472186 Clip, panel mtg
27* 5304406520 Clip, panel mtg kit, (40)
59 216974500 Bearing, door closer
64 216403700 Plug-button, hole filler, door base
72 297118100 Shelf, tilt out, wire
72A 297118200 Shelf, tiltout, short, wire
73 216513900 End Cap, shelf, LH, tilt-out
74 216514000 End Cap, shelf, RH, tilt-out
79 218755401 Screw-set, 10-32 x 0.375
80 218755504 Screw-shoulder, #10 AB, handle mounting
80A 216514300 Bin-door, adjustable, (2)
93 5304460605 Screw, ph truss head, 8-18AB x 0.500
# Functional Parts
* Non-Illustrated Parts
