Operating Cycle Illustrations - Manual Cycle
To manually cycle ice maker:
1. Turn the On/Off switch to ON
2. Press in on switch holding the spring loaded contact set closed, this will allow the motor to start.
3. Hold in on the switch for 10 seconds to allow hold switch contacts to close allowing the ice maker to continue
through a cycle.
Operating Cycle Illustrations - Electrical

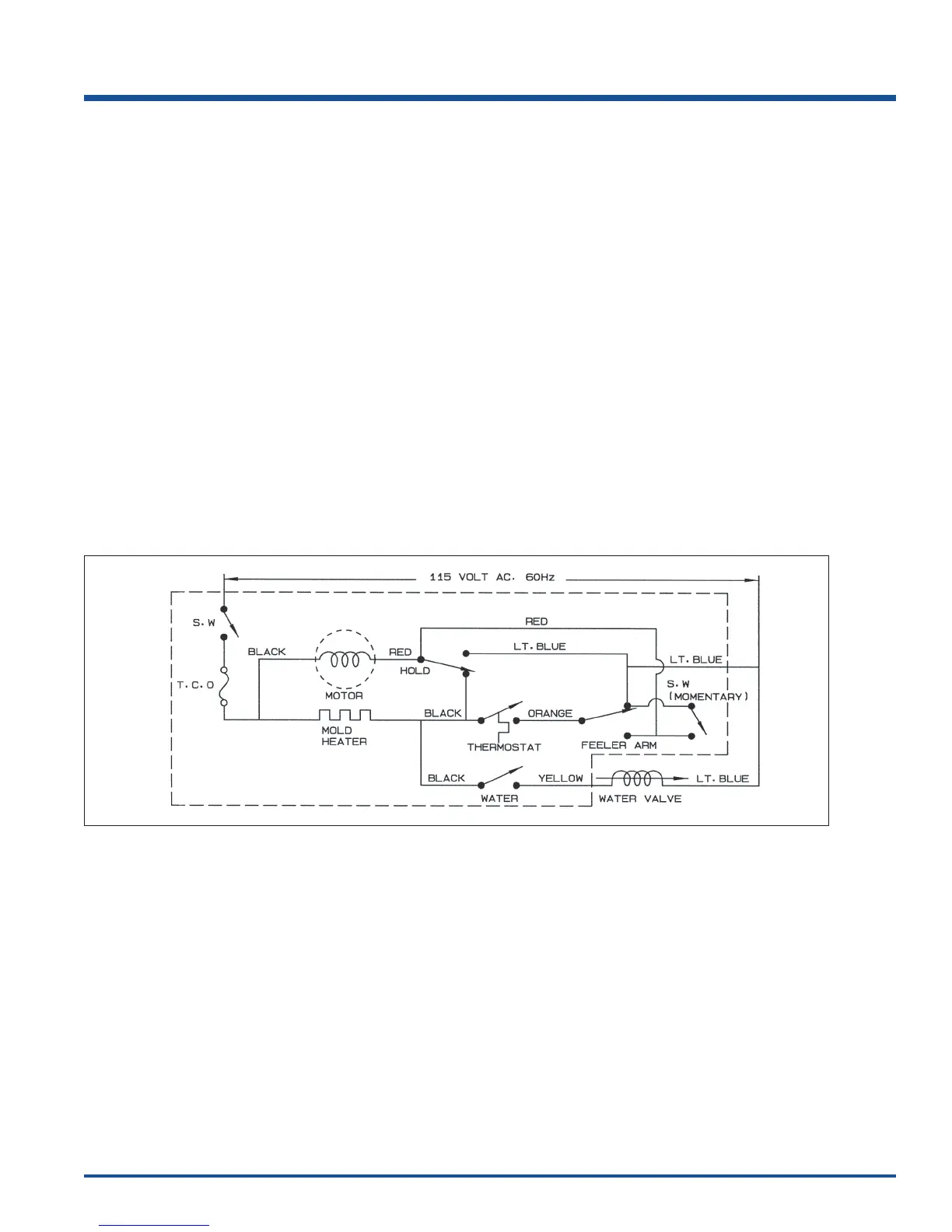

The following wiring diagrams illustrate the electrical operation of an ice maker.
• Ice Maker connected to electricity.
• Mold temperature above 9°F.
• Thermostat open.
• Motor not rotating.
• Mold Heater off.
• Control Arm in the down position.
• Feeler Arm Switch closed C to NO.
• Hold Switch closed C to NC.
• Water Fill Switch open.
