Ice Maker

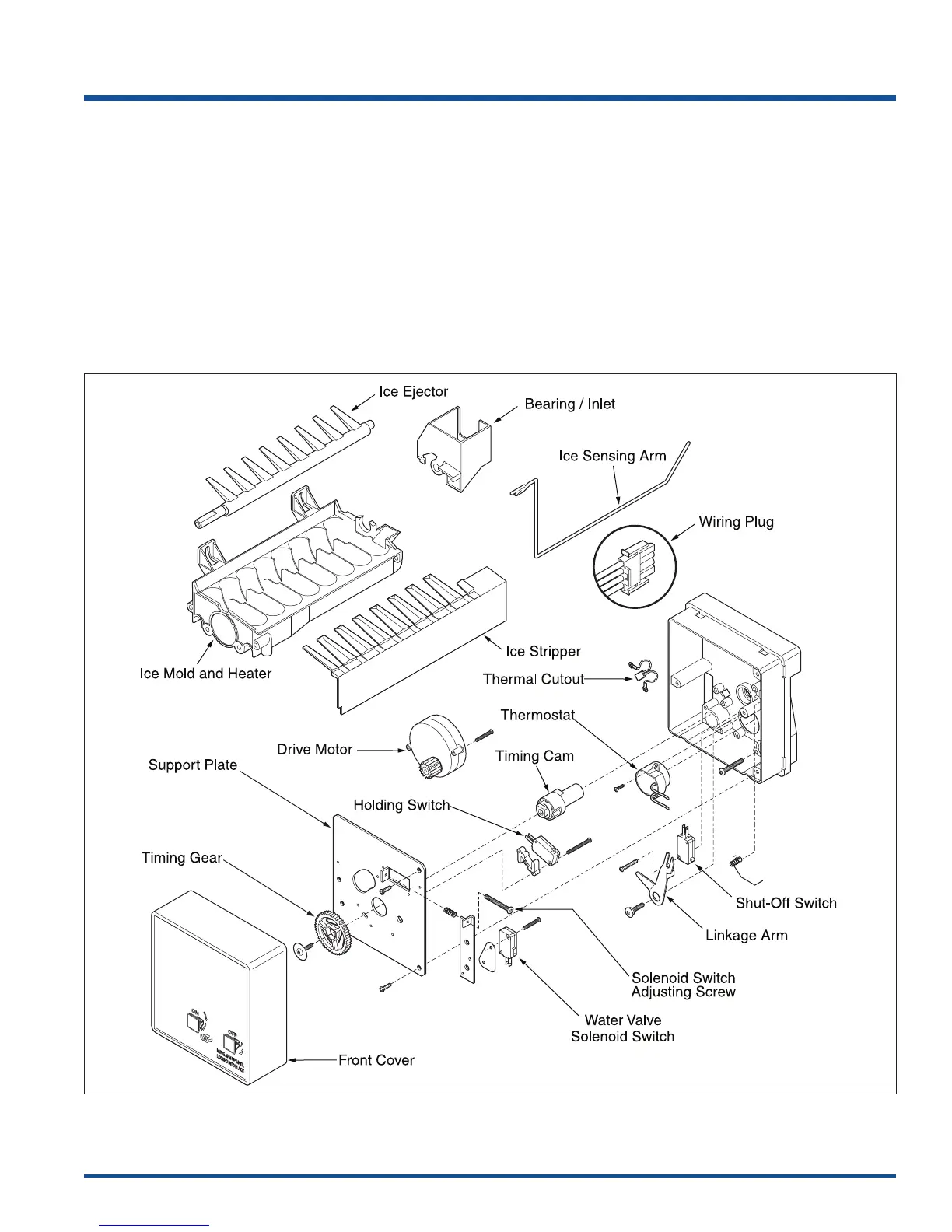

Side Mounted Ice Maker
The Ice Maker is designed to produce ice automatically. The length of time between harvest cycles will vary,
depending on load conditions, door openings, ambient temperature and freezer temperature and water temperature.
These factors must be taken into consideration when checking the ice production rate.
With a temperature of -2°F to +5°F in the freezer, the rate of harvest will be 40 to 96 cubes per 24 hour period.
The ice maker is wired across the line and will harvest ice in the refrigeration or defrost cycles.
The water valve and solenoid assembly are both mounted in the compressor compartment.
A tube extends from the water valve up the rear wall of the freezer to a water inlet spout that directs the water into
the fi ll trough. The water fi ll spout connects to a housing in the back of the freezer and directs water fl ow into the ice
maker from the back of the mold.
