Ice Maker
4-12
• Maker connected to electricity.
• Mold temperature above 9°F.
• Thermostat open.
• Motor not rotating.
• Mold heater off.
• Control Arm down.
• Feeler Arm Switch closed C to NO.
• Hold Switch closed C to NC.
• Water Fill Switch open.
14

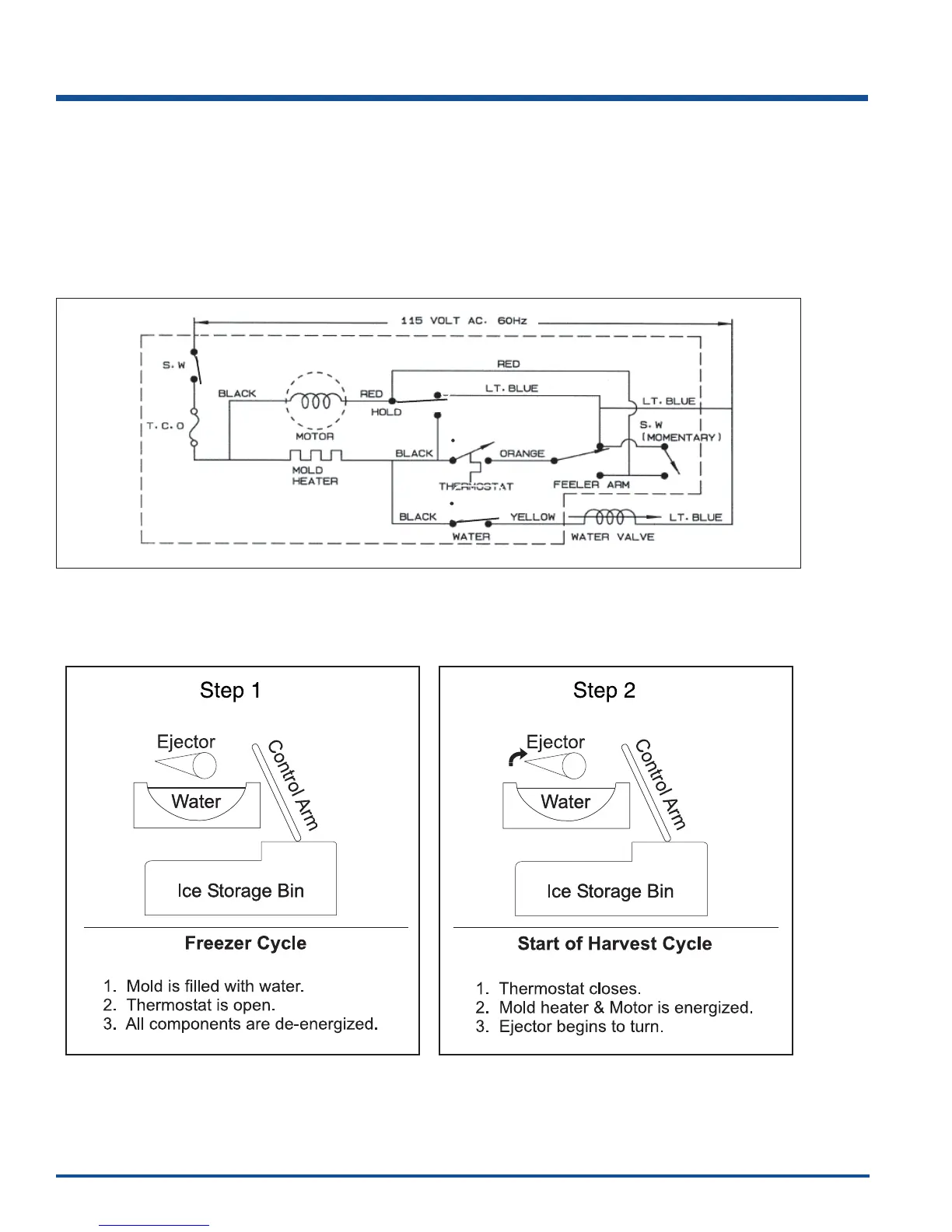

Operating Cycle Illustrations - Mechanical
The following diagrams illustrate the mechanical operation of an ice maker.
