Component Teardown
6-5
Interior Components
Adjustable Interior Shelves
Multi-position adjustable interior shelves can be moved
to any position for larger or smaller packages. The can-
tilever shelves are supported at the back of the
refrigerator. (See Figure 6-10) Replace the shelf by
inserting the hooks at rear of the shelf into the wall
bracket. Lower the shelf into the desired slots and lock
into position.
To remove the shelf assemblies:
1. Lift front edge up.
2. Pull shelf out.
Refrigerator Drawer Assembly Removal
The refrigerator drawer assembly can be lifted off of the
supports and pulled from the refrigerated compartment.
The drawer may now be removed from the drawer slides.
(See Figure 6-11)
To remove the refrigerator drawers assemblies:
1. Remove the lowest adjustable interior shelf.
2. Lift up on the front of the drawer assembly and lift
upwards until the bracket releases from the supports
mounted to the liner sidewalls. Then pull assembly
out of the cabinet interior.
3. Remove the glass shelf.
4. Remove crisper drawer from slides by using a flat
bladed screwdriver just behind the clip between the
drawer and rail, then gently twisting up. The clip will
release and the drawer will be free.
5. The drawer slides are secured with two tabs that
lock into the drawer frame brackets. Push drawer
slide upwards until the front tab releases, then pull
drawer slide forward until rear tab disengages.
Drawer slide is now free.
6. The bracket is secured with two screws to the
drawer frame. Extract the two screws to separate
the bracket and drawer frame.
7. The supports are secured with two screws to the
compartment sidewall. Extract the screws and
remove the supports.

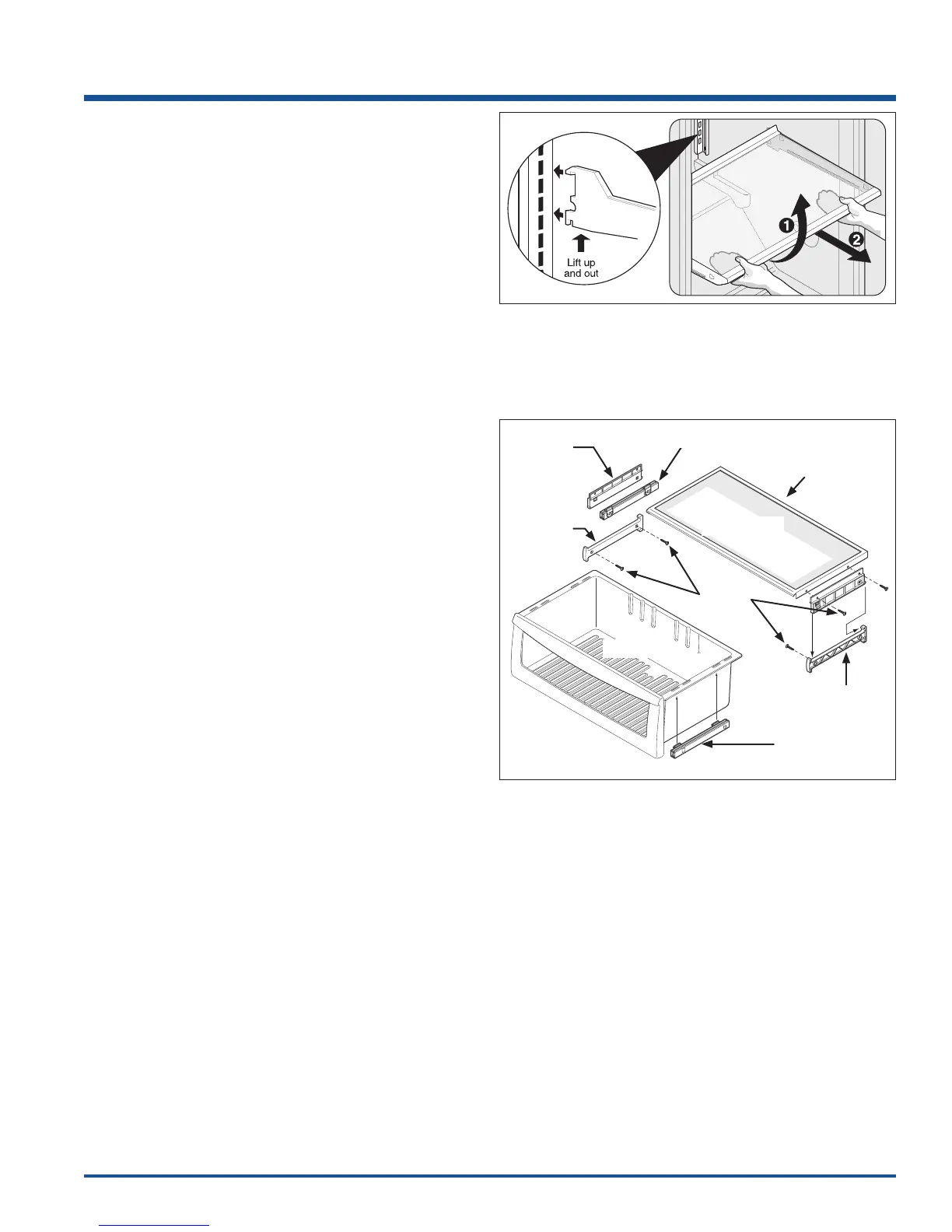

Figure 6-10. Interior Shelving Removal
Support
Glass Shelf
Figure 6-11. Refrigerator Drawer Assembly Removal
Drawer Slide
Screws
Drawer
Drawer Slide
Support
Drawer
Frame
Bracket
Drawer Frame
