Ice Maker
4-6

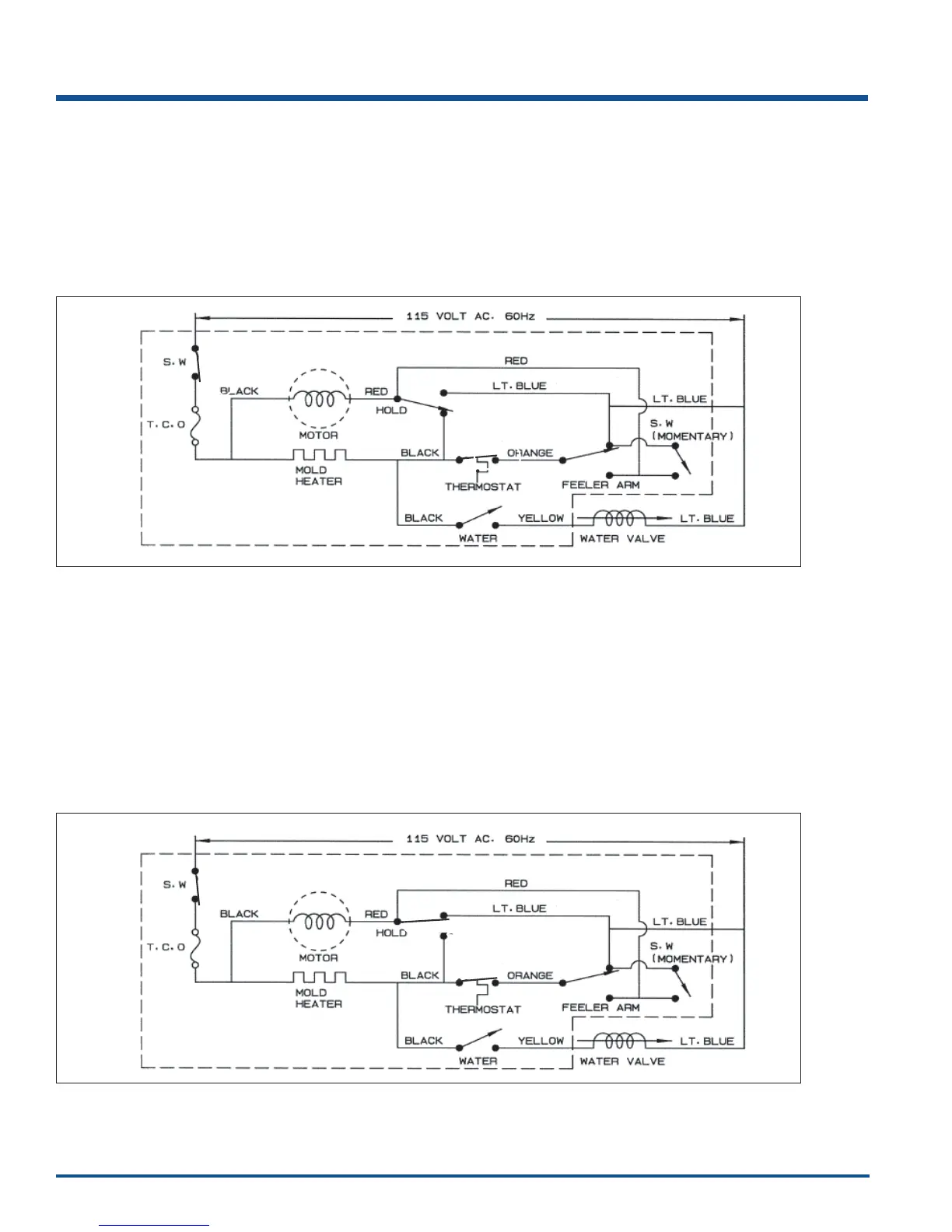

• Maker connected to electricity.
• Mold temperature above 9°F.
• Thermostat closes.
• Motor starting.
• Mold starting to heat.
• Control Arm in the down position.
• Feeler Arm Switch closed C to NO.
• Hold Switch closed C to NC.
• Water Fill Switch open.
2
• Ice Maker connected to electricity.
• Mold temperature above 9°F.
• Thermostat closed.
• Motor starting to rotate.
• Mold starting to heat.
• Control Arm in the down position.
• Feeler Arm Switch closed C to NO.
• Hold Switch closed C to NC.
• Water Fill Switch open.
