Electrolux E32AR75FPS - Page 37

Ice Maker
4-7

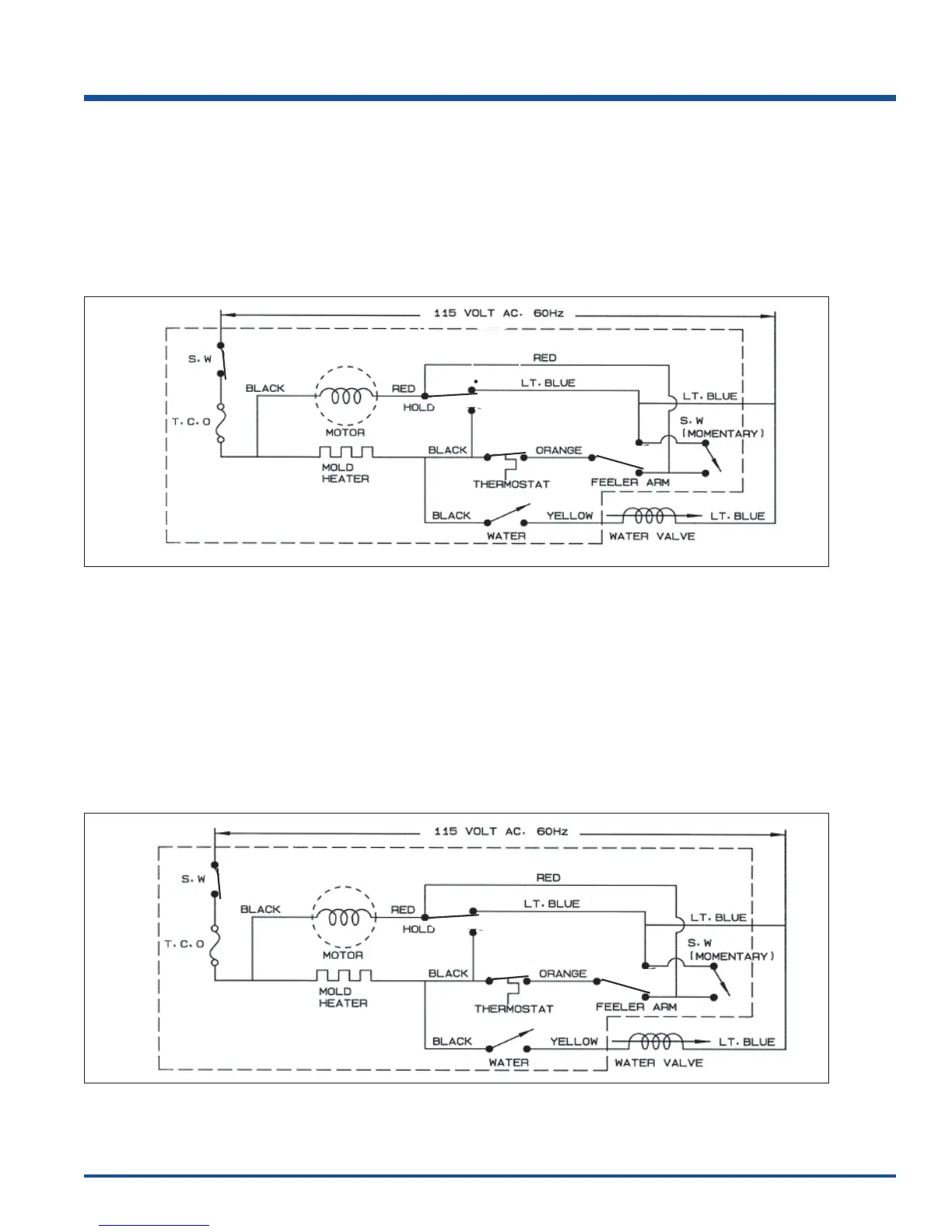

• Maker connected to electricity.
• Mold temperature above 9°F.
• Thermostat closed.
• Motor rotating.
• Mold heating.
• Control Arm swinging up.
• Feeler Arm Switch closed C to NC.
• Hold Switch closed C to NC.
• Water Fill Switch open.
4
• Ice Maker connected to electricity.
• Mold temperature above 9°F.
• Thermostat closed.
• Motor stalls as ejector hits ice in mold.
• Mold heating.
• Control Arm swinging down.
• Feeler Arm Switch closed C to NC.
• Hold Switch closed C to NO.
• Water Fill Switch open.
5
