Ice Maker
4-8

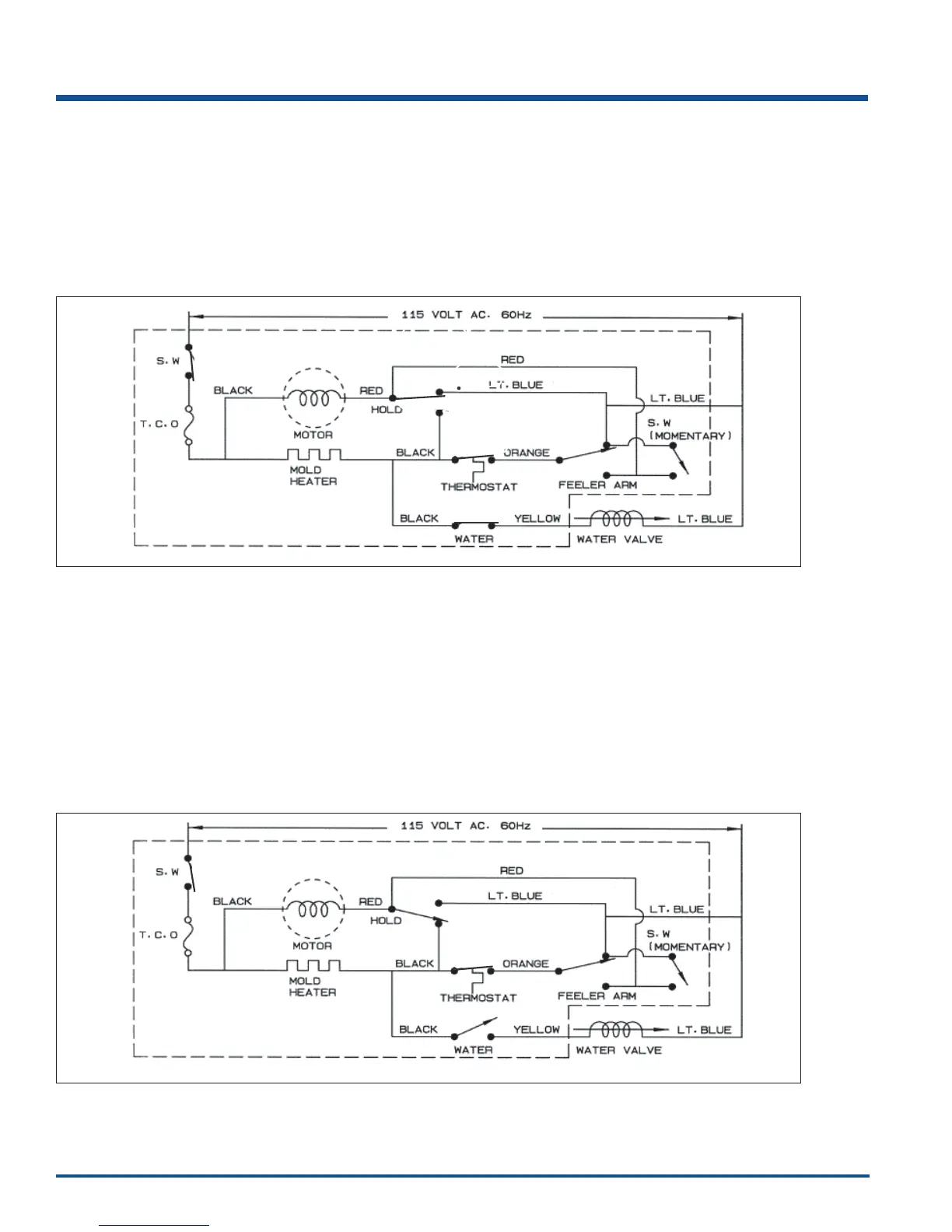

• Maker connected to electricity.
• Mold temperature above 9°F.
• Thermostat closed.
• Motor starts to rotate as ice breaks loose.
• Mold heating.
• Control Arm is down.
• Feeler Arm Switch closed C to NO.
• Hold Switch closed C to NO.
• Water Fill Switch closed but shorted open by thermostat.
• Ice Maker connected to electricity.
• Mold temperature above 9°F.
• Thermostat closed.
• Motor is rotating.
• Mold heating.
• Control Arm is down.
• Feeler Arm Switch closed C to NO.
• Hold Switch closed C to NC.
• Water Fill Switch open.
6
7
