Ice Maker
4-10

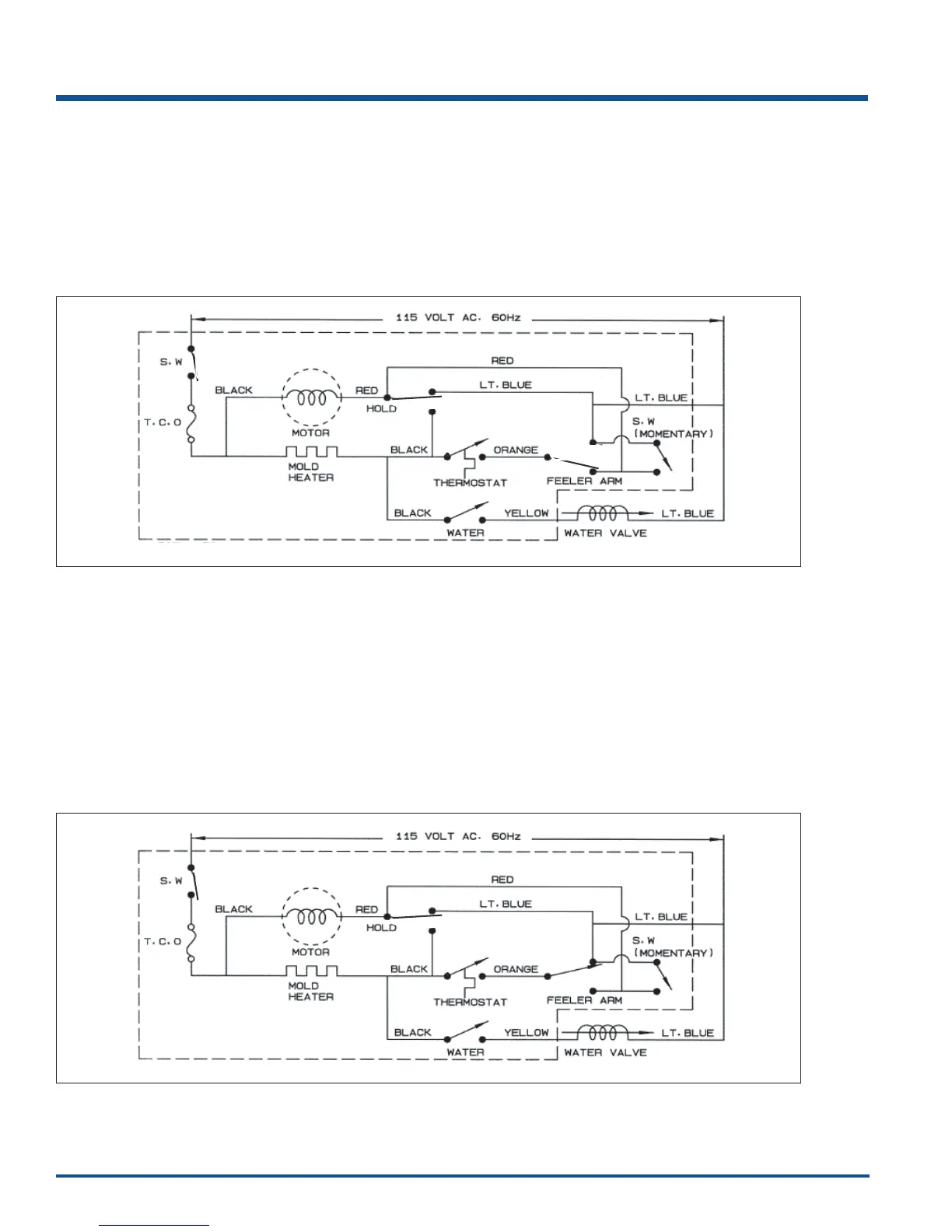

• Maker connected to electricity.
• Mold temperature above 40°F.
• Thermostat opens.
• Motor is rotating.
• Mold heater off.
• Control Arm swinging up.
• Feeler Arm Switch closed C to NC.
• Hold Switch closed C to NO.
• Water Fill Switch open.
• Ice Maker connected to electricity.
• Mold temperature above 9°F.
• Thermostat open.
• Motor is rotating.
• Mold heater off.
• Control Arm swinging down.
• Feeler Arm Switch closed C to NO.
• Hold Switch closed C to NO.
• Water Fill Switch open.
